Home >> Cadillac >> 2009 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> X400 - X499 >> X412

X412




Inline Harness Connector End Views

X412 Right Rear Lamp Harness to Chassis Harness (X88 or Z88, with E52)

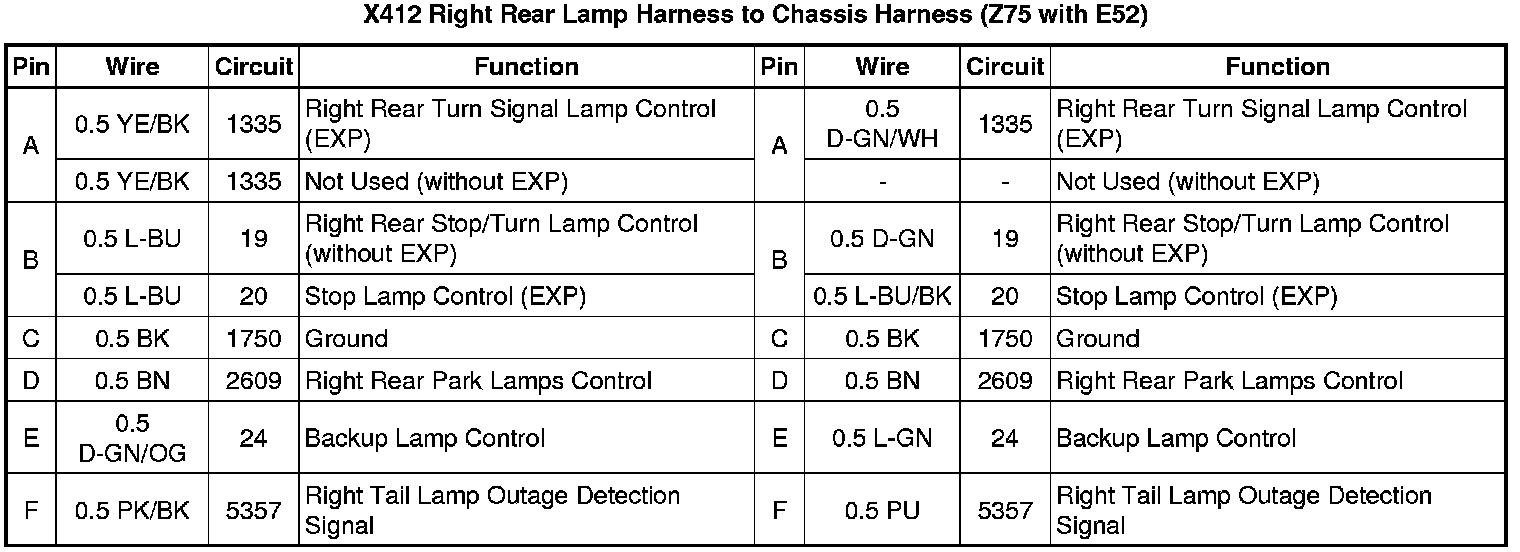

X412 Right Rear Lamp Harness to Chassis Harness (Z75 with E52)













X412 Right Rear Lamp Harness to Chassis Harness (without E52 or TB7)
