X351
X351
Inline Harness Connector End Views

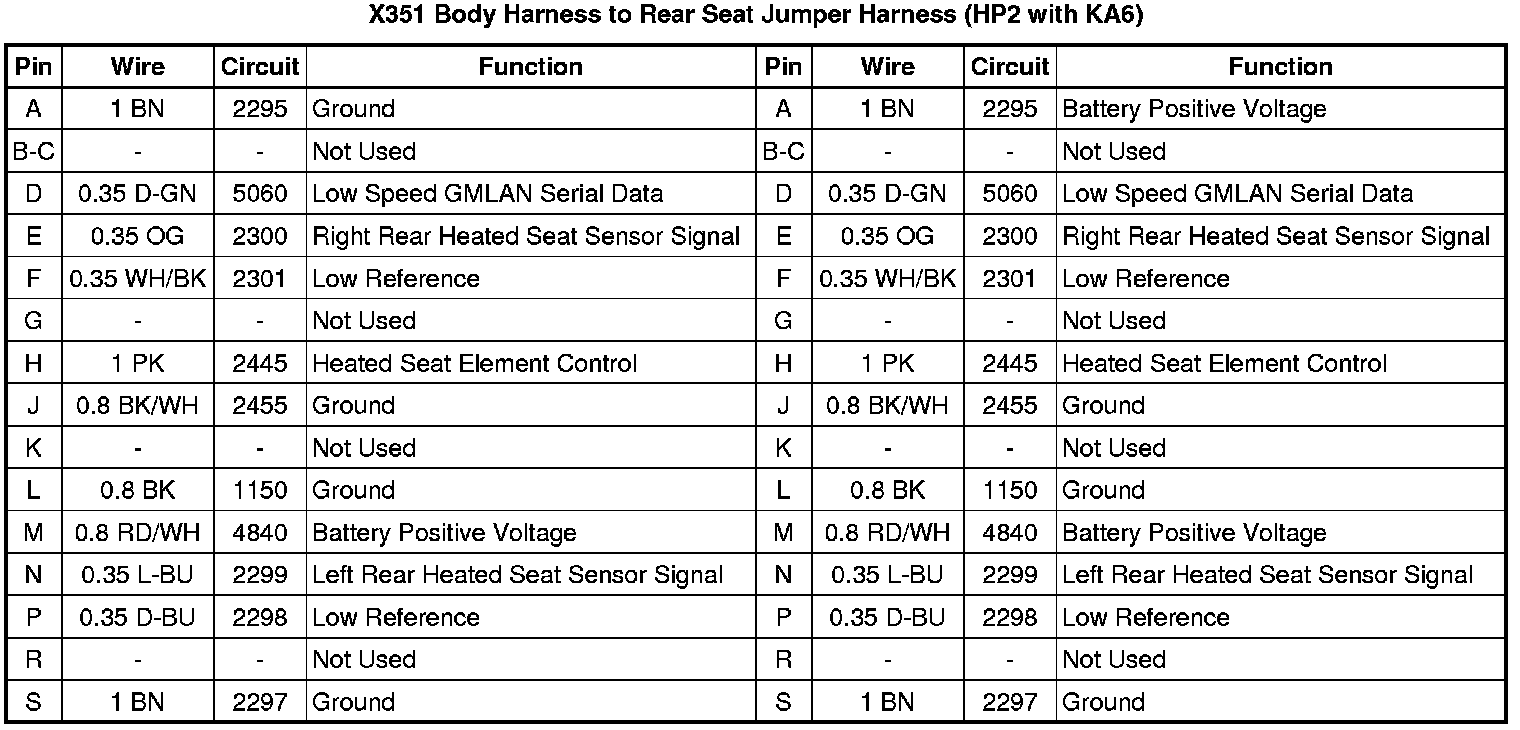

X351 Body Harness to Rear Seat Jumper Harness (HP2 with KA6)
