X350
X350
Inline Harness Connector End Views

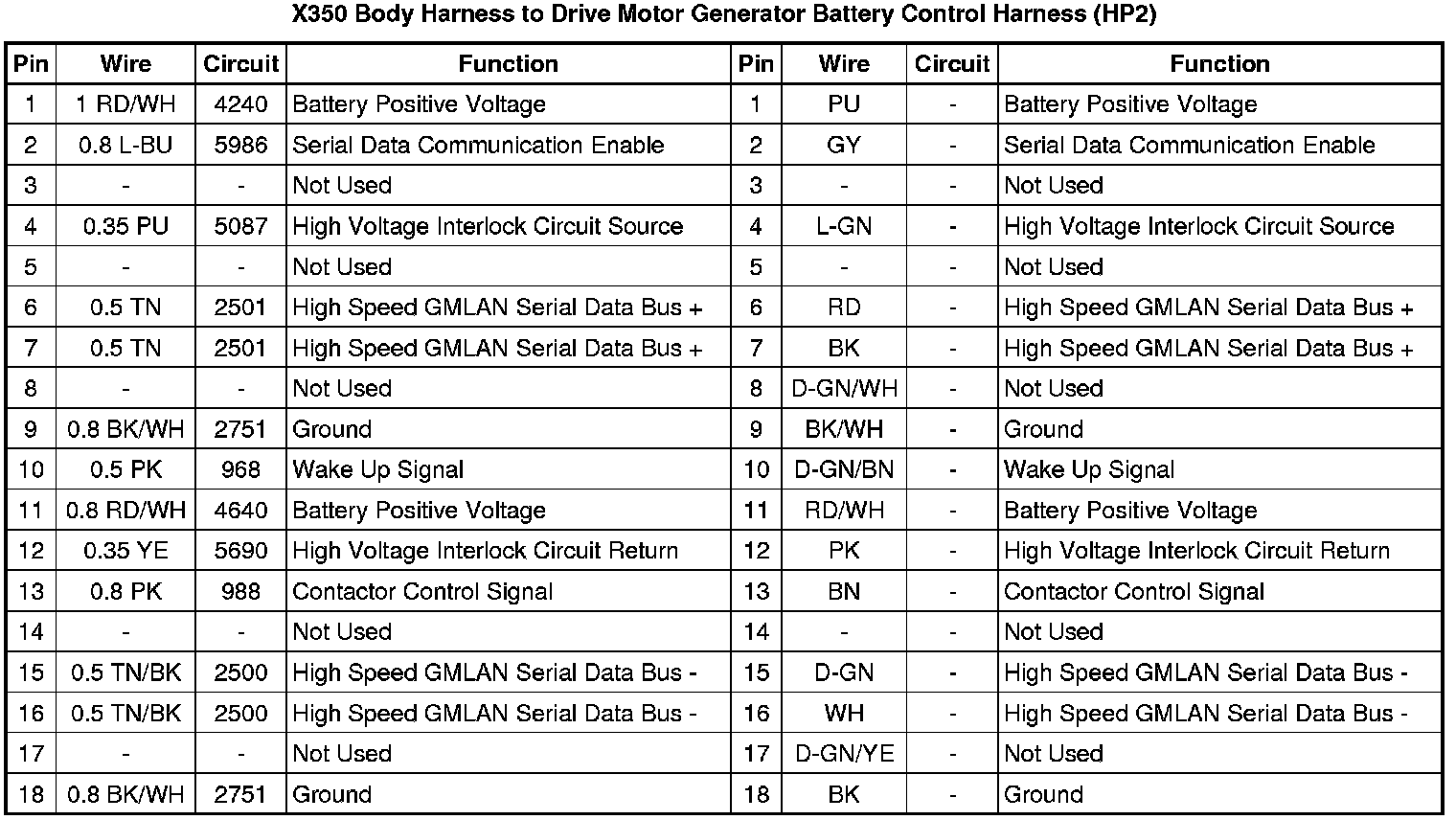

X350 Body Harness to Drive Motor Generator Battery Control Harness (HP2)
