X308




Inline Harness Connector End Views

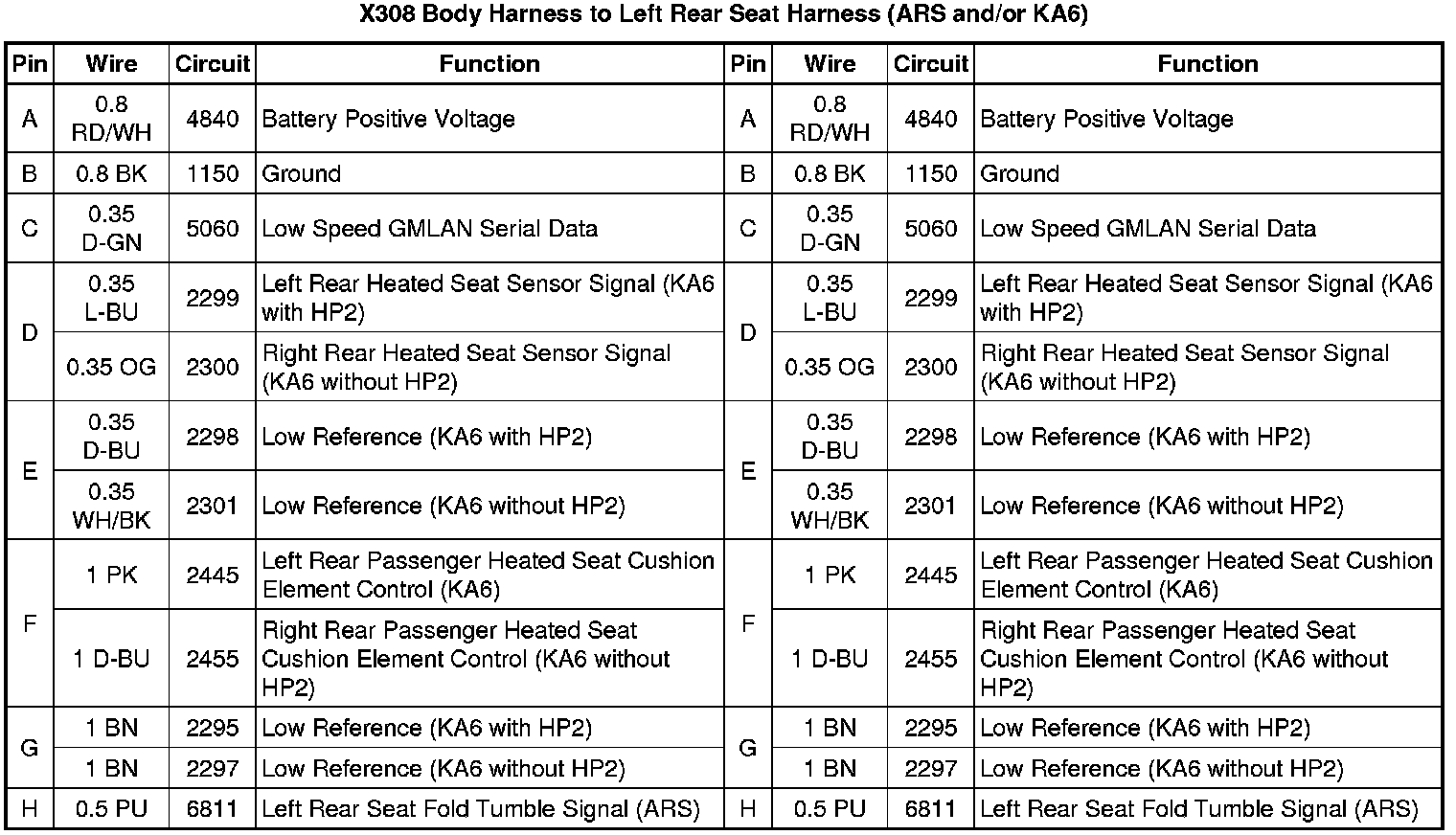

X308 Body Harness to Left Rear Seat Harness (ARS and/or KA6)
