X307
X307
Inline Harness Connector End Views

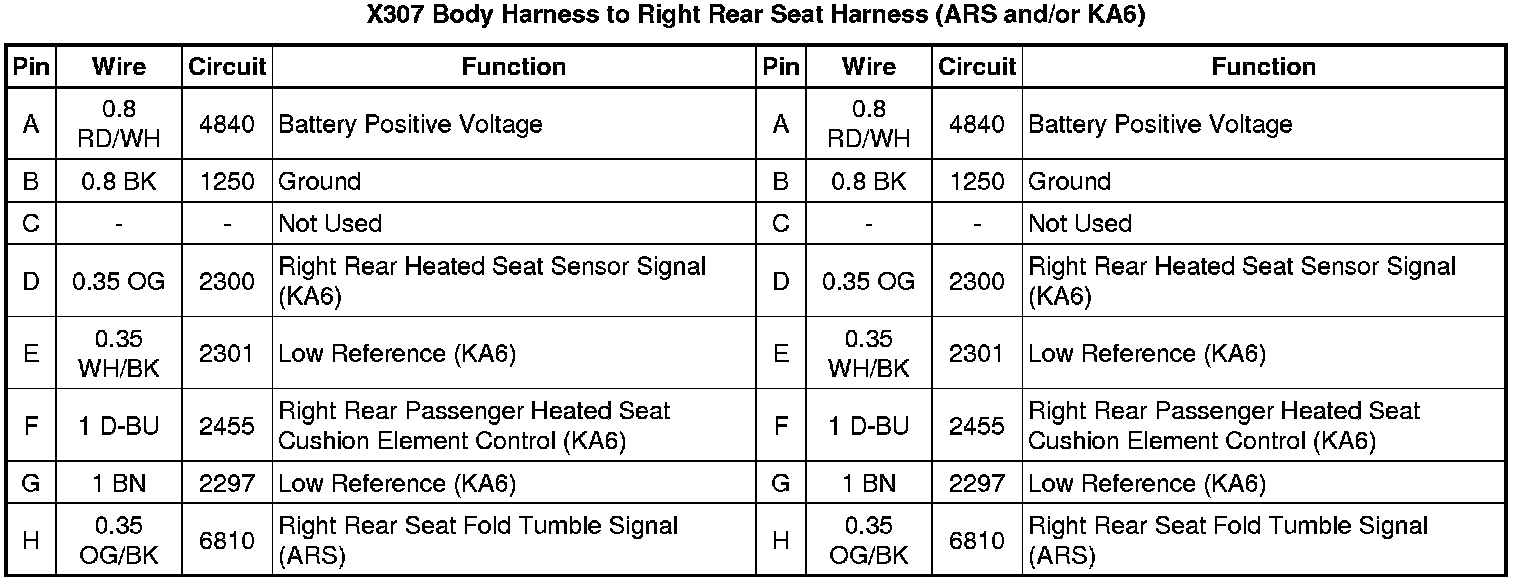

X307 Body Harness to Right Rear Seat Harness (ARS and/or KA6)
