X305




Inline Harness Connector End Views

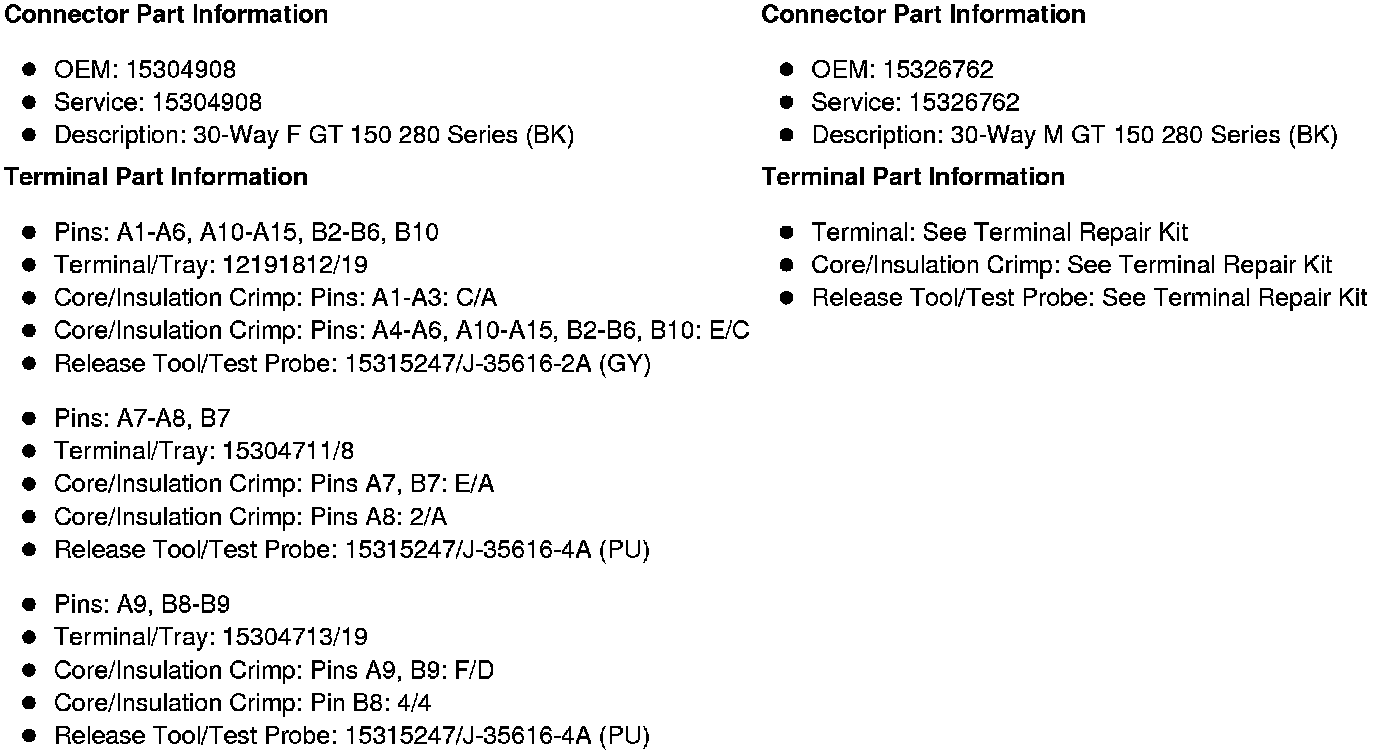

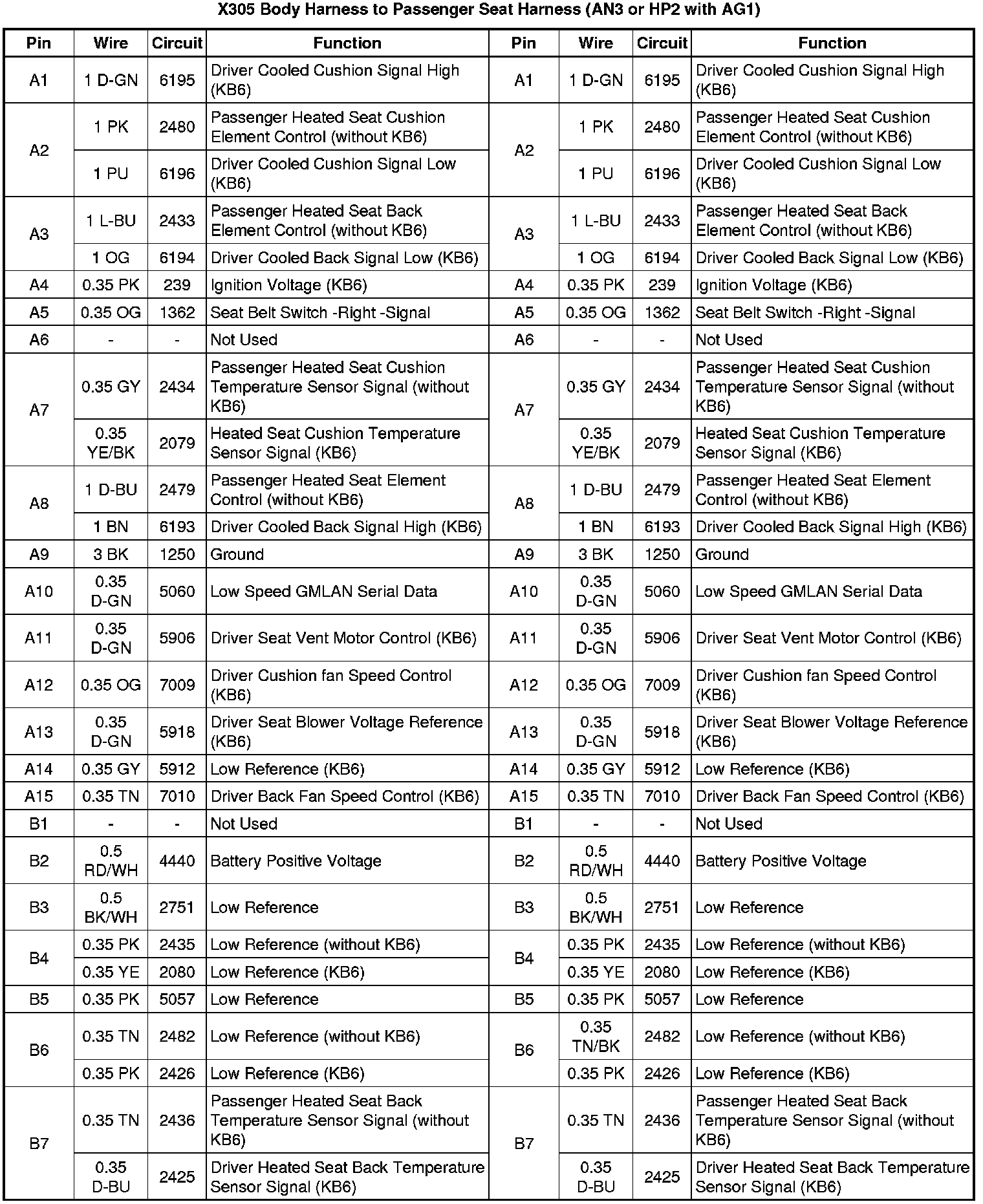

X305 Body Harness to Passenger Seat Harness (AN3 or HP2 with AG1)

















X305 Body Harness to Passenger Seat Harness (without AN3 or HP2 with AG1)
