X212
Inline Harness Connector End Views

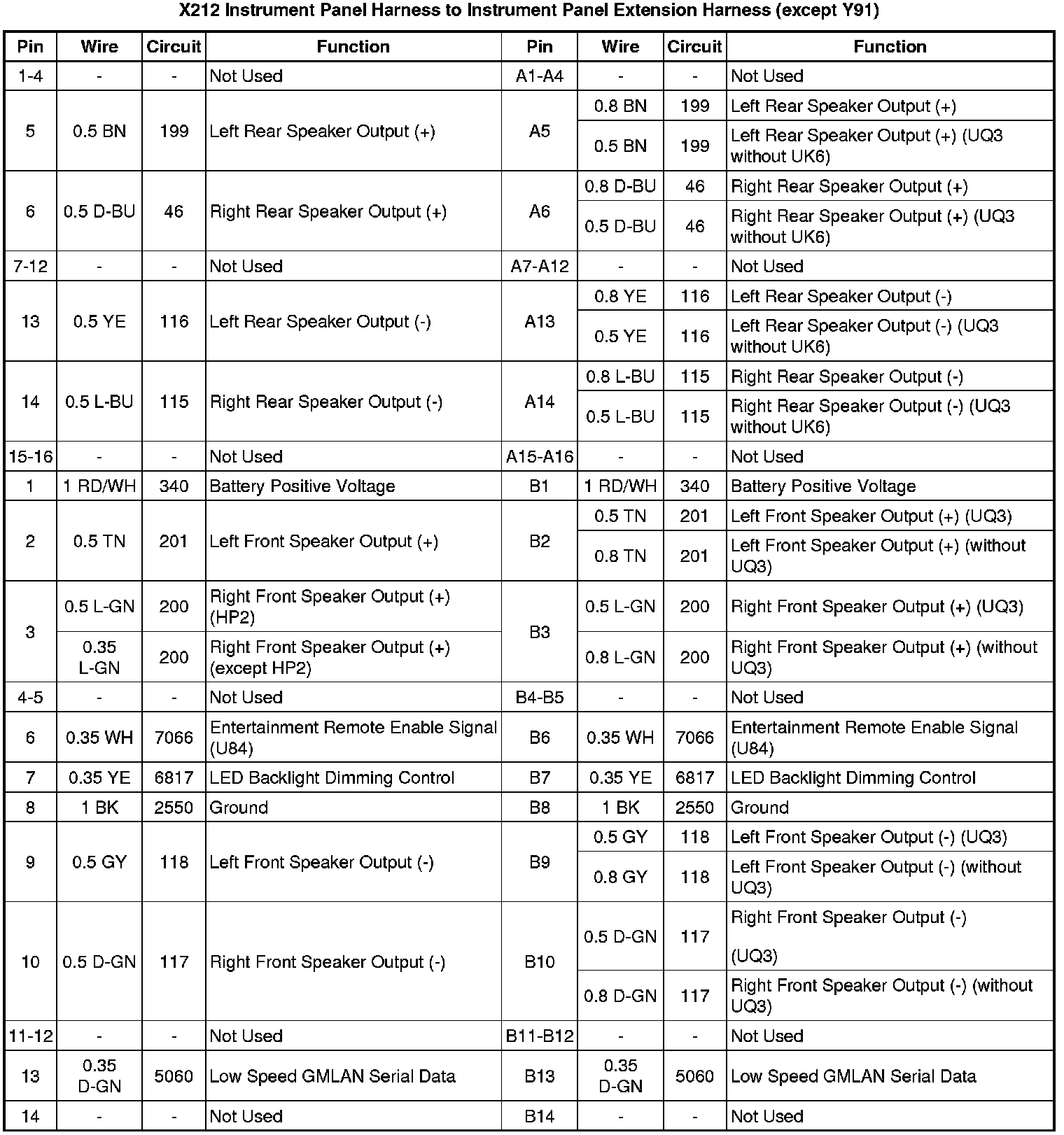

X212 Instrument Panel Harness to Instrument Panel Extension Harness (except Y91)
