X211

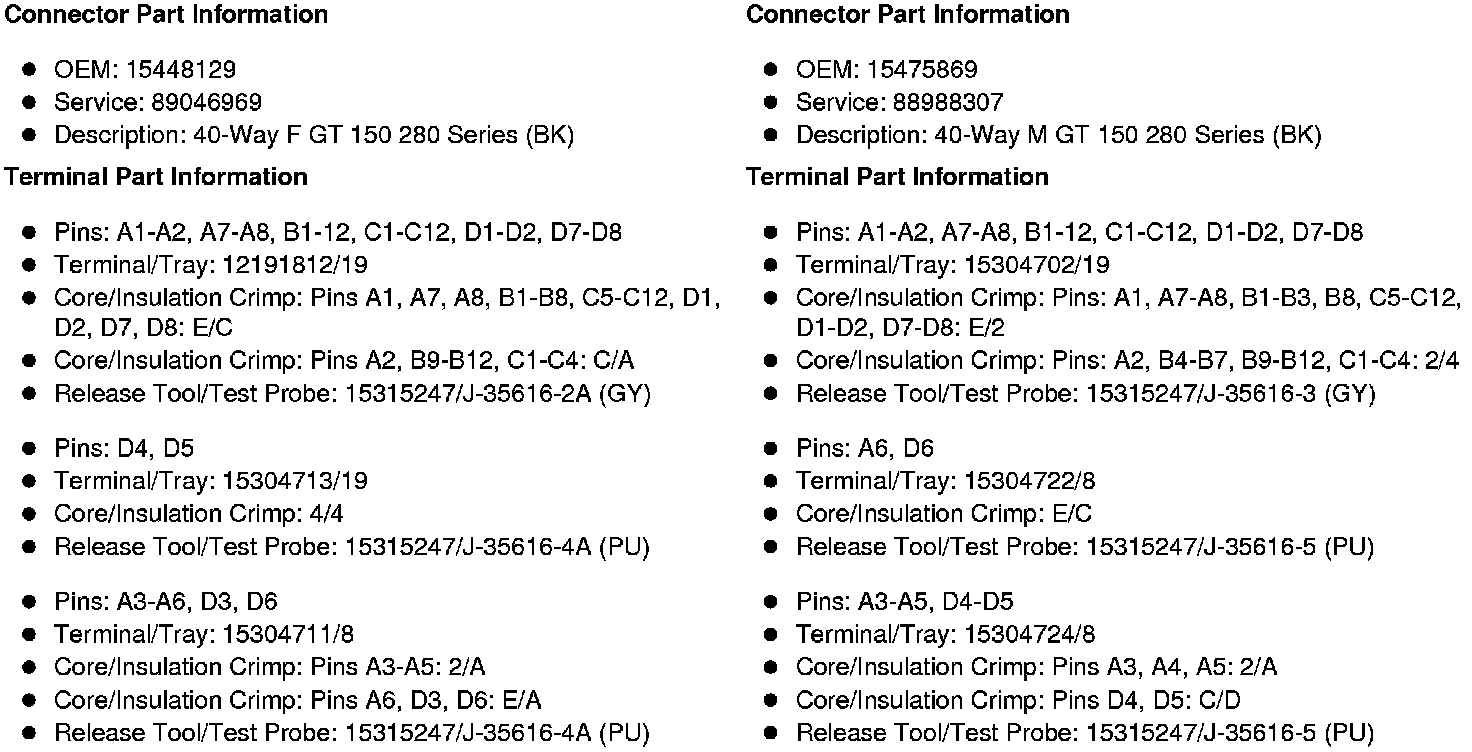

Inline Harness Connector End Views

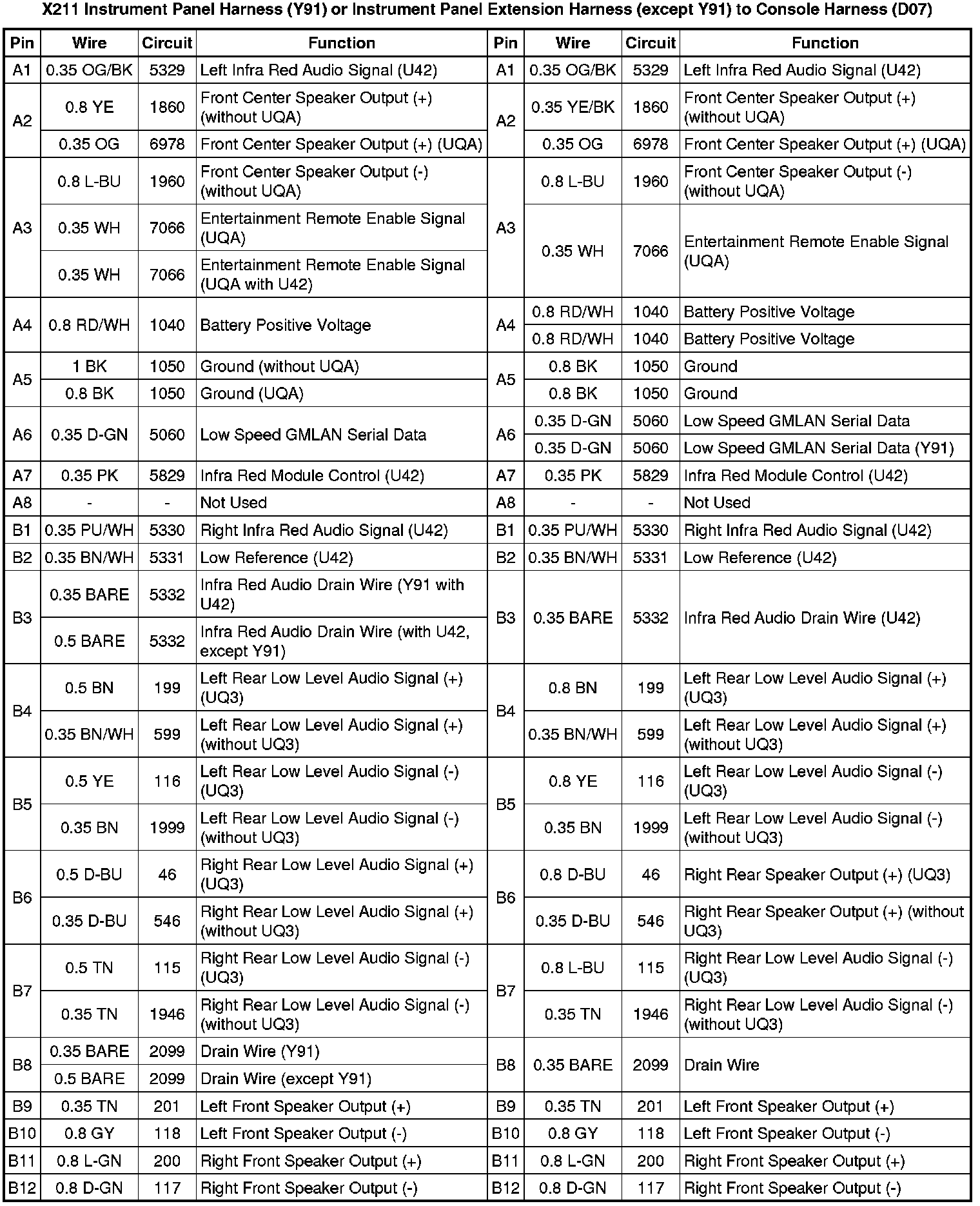

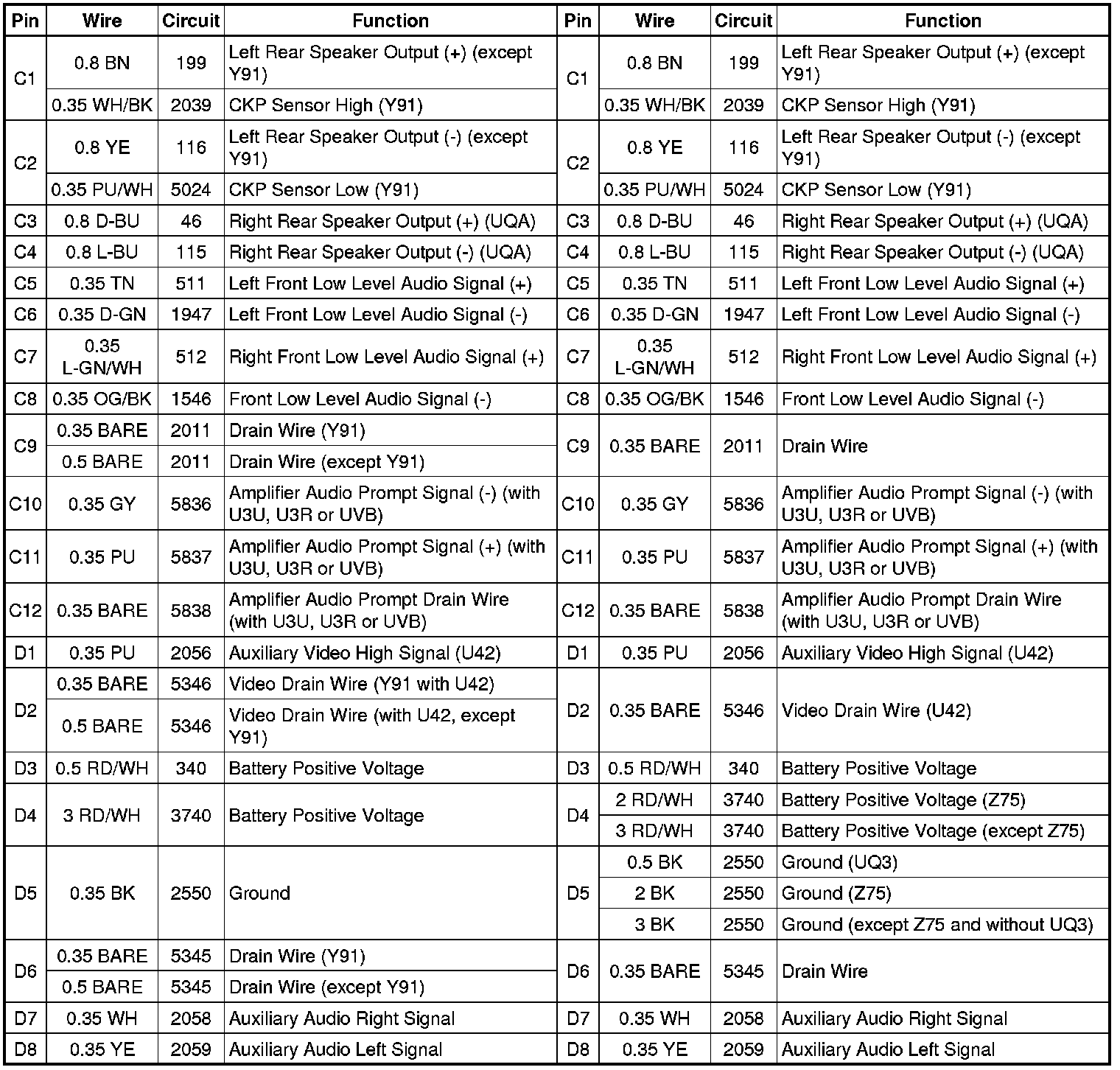

X211 Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (except Y91) to Console Harness (D07)
