X206




Inline Harness Connector End Views

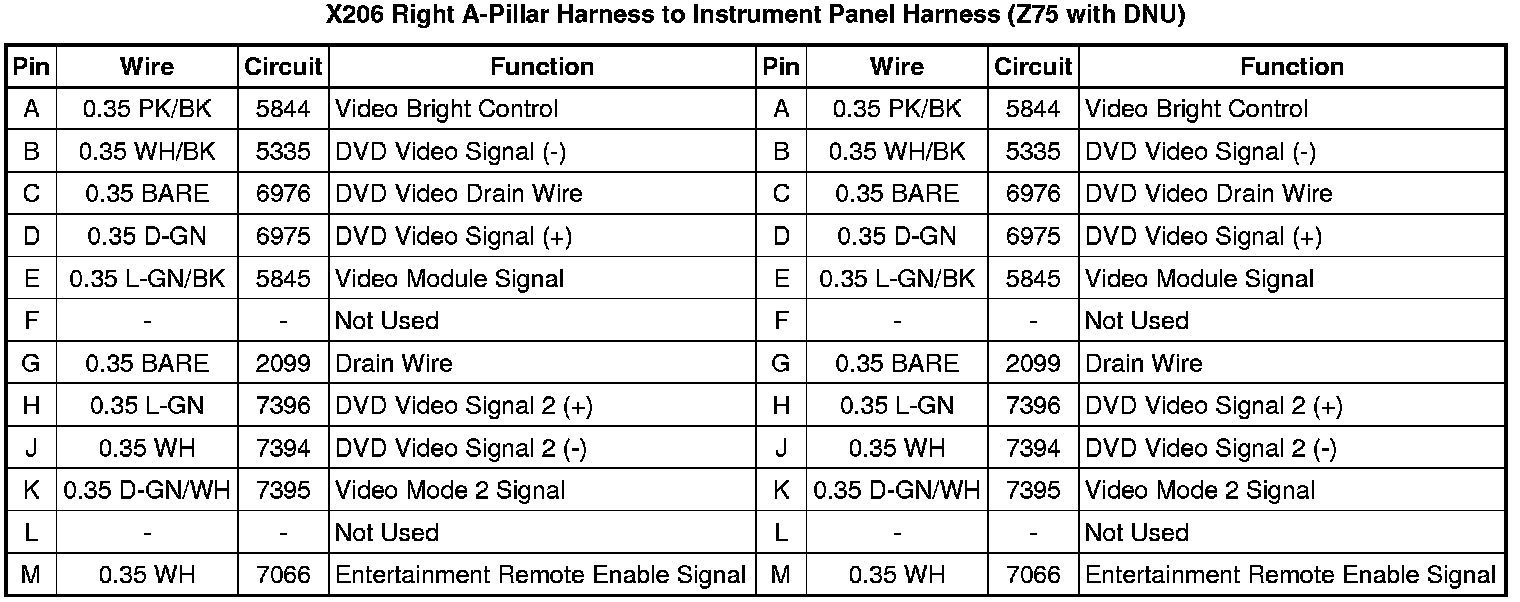

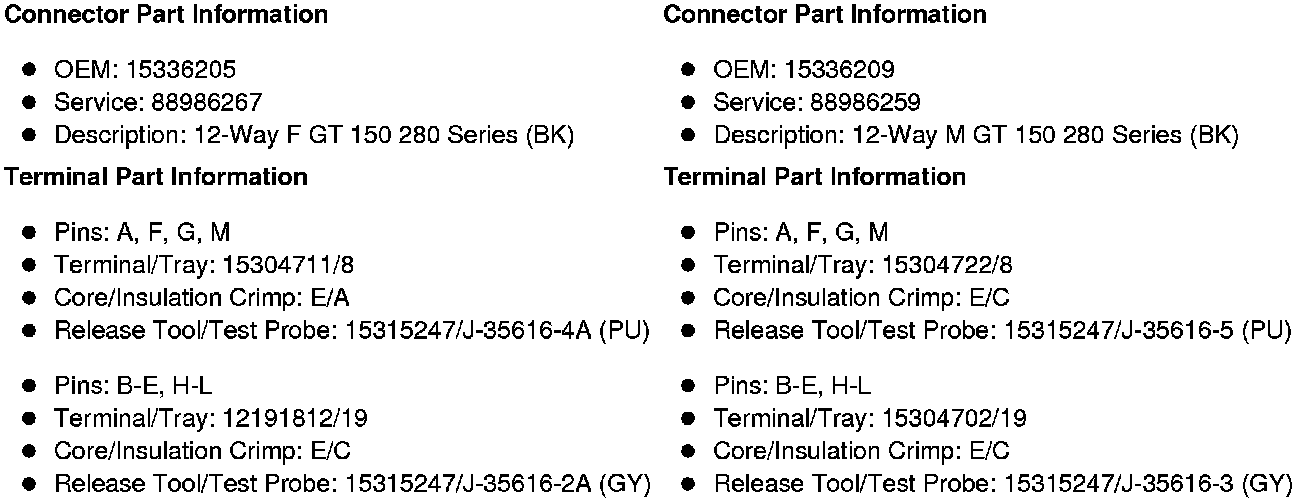

X206 Right A-Pillar Harness to Instrument Panel Harness (Z75 with DNU)

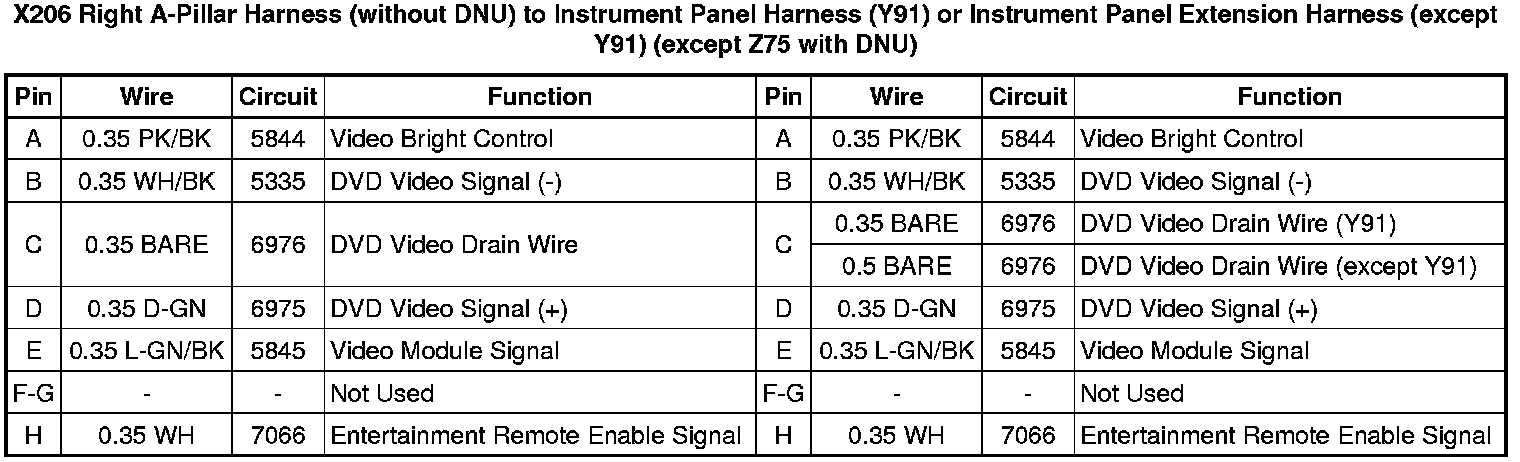

X206 Right A-Pillar Harness (without DNU) to Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (except Y91) (except Z75 with DNU)
