X204

Inline Harness Connector End Views

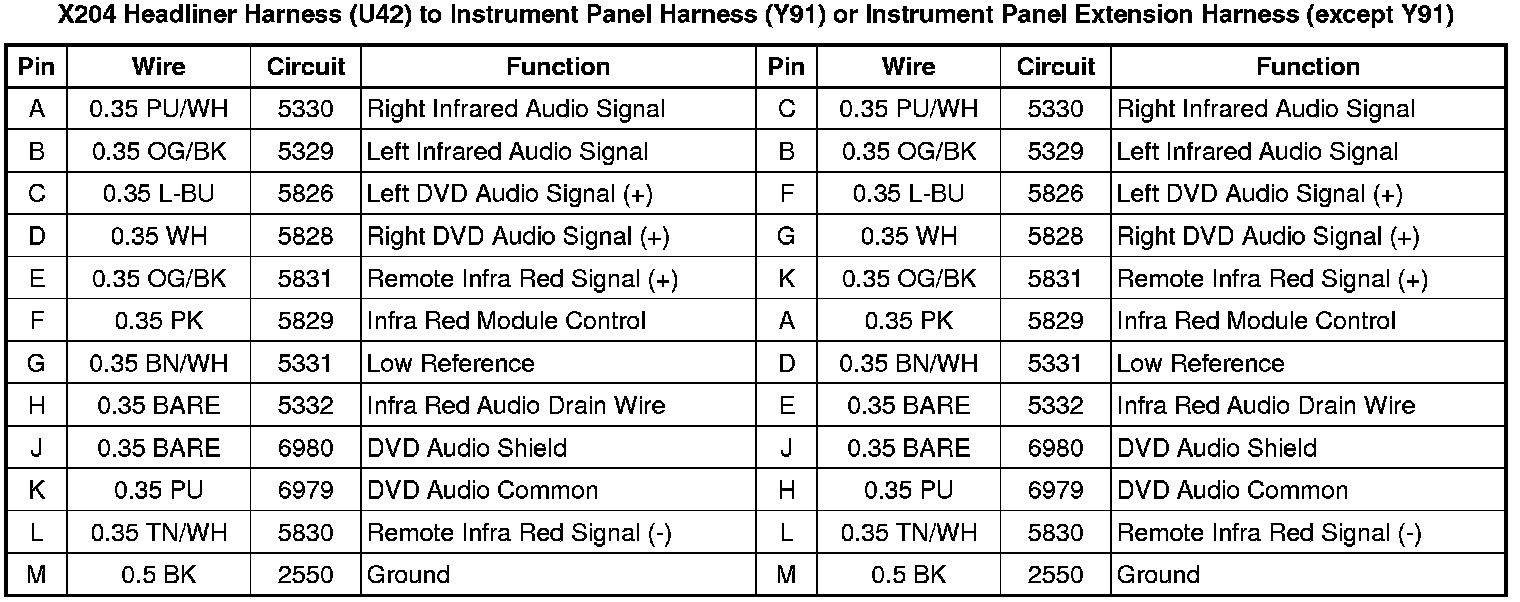

X204 Headliner Harness (U42) to Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (except Y91)
