X109




Inline Harness Connector End Views

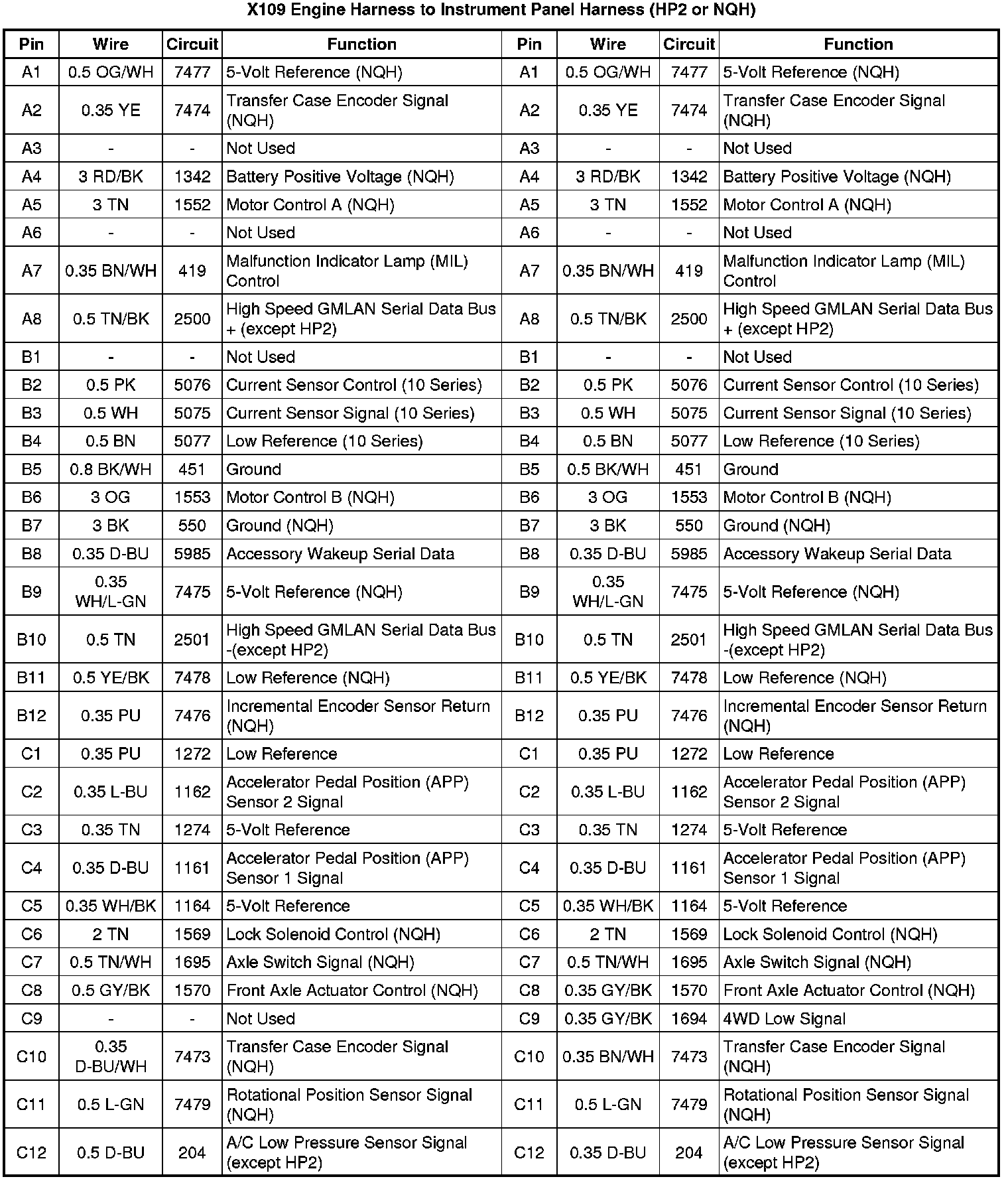

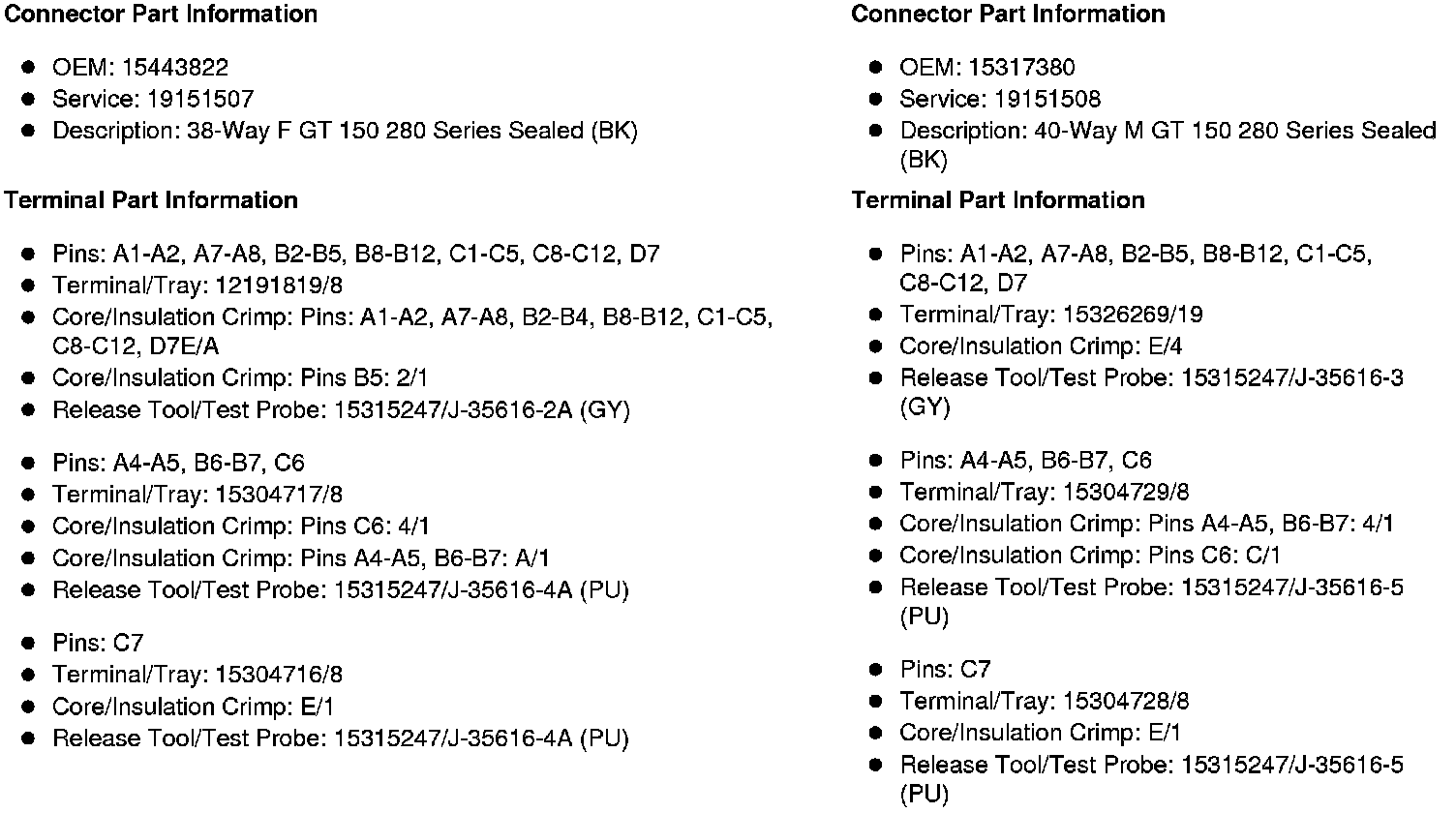

X109 Engine Harness to Instrument Panel Harness (HP2 or NQH)

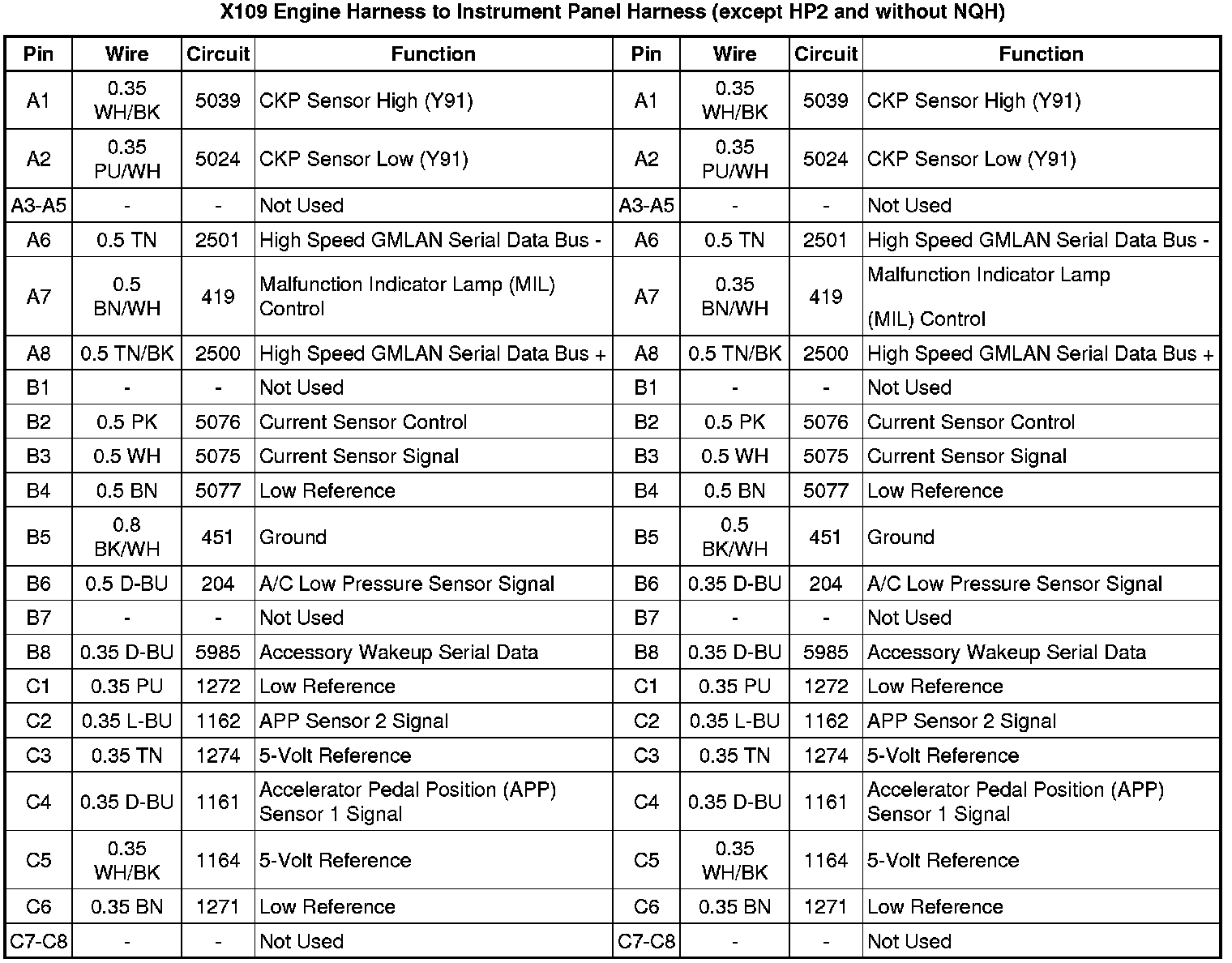

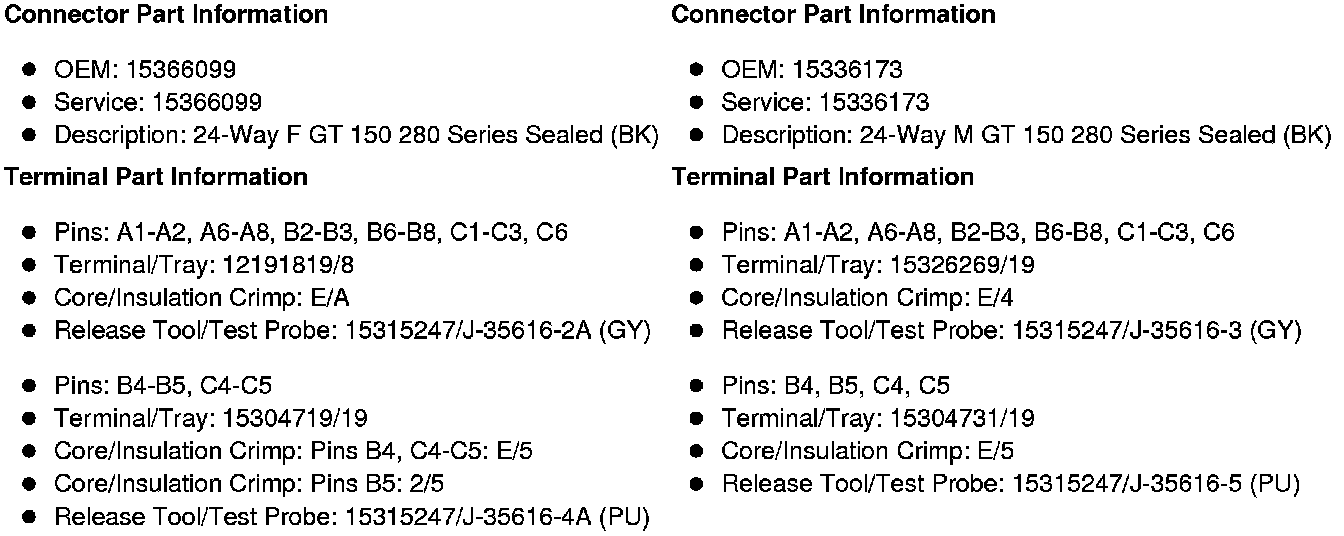

X109 Engine Harness to Instrument Panel Harness (except HP2 and without NQH)
