Marker Lamp




Component Connector End Views

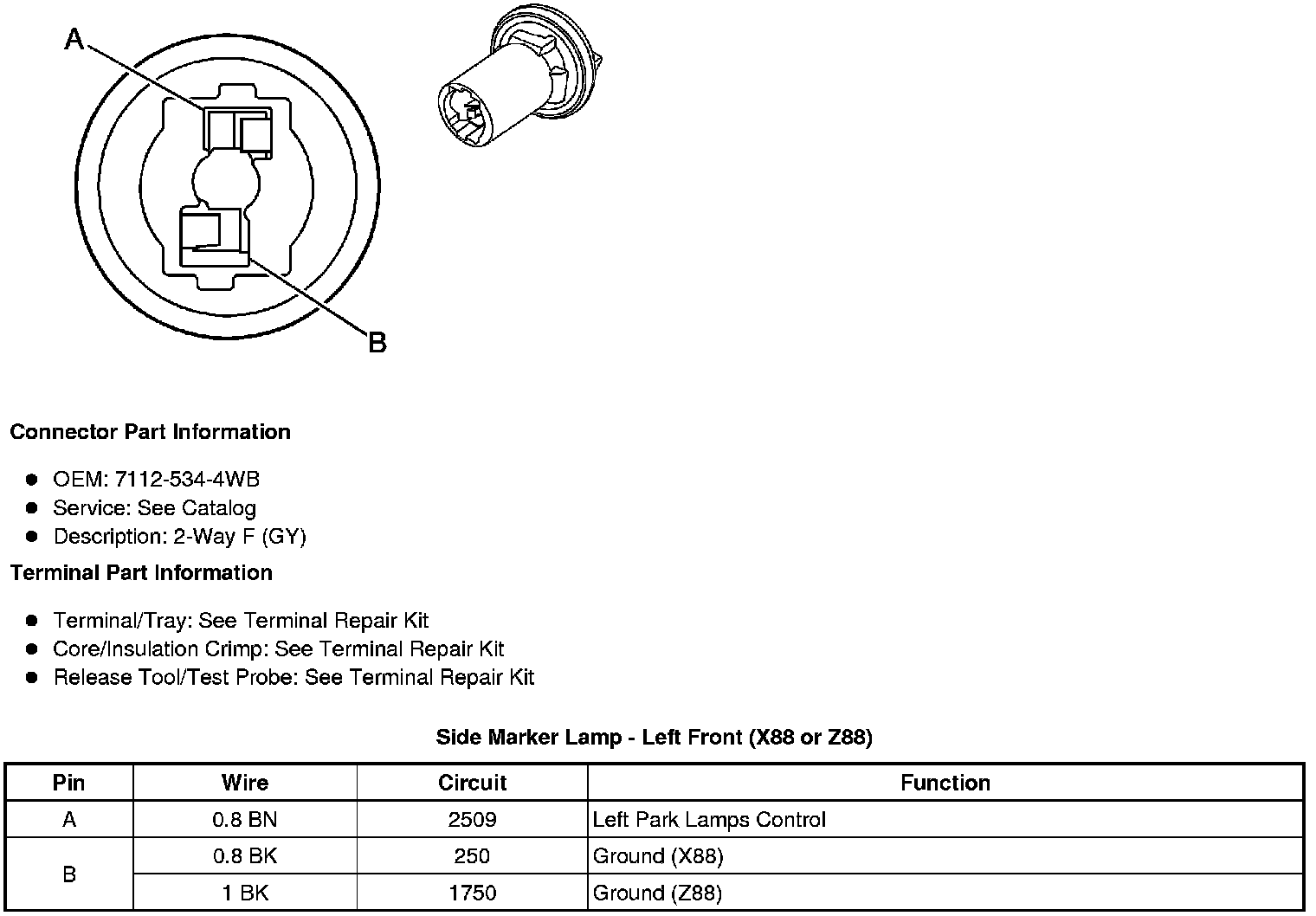

Side Marker Lamp - Left Front (X88 or Z88)





Side Marker Lamp - Left Rear (X88 with E52 or TB7)





Side Marker Lamp - Left Rear (X88 without E52 or TB7)

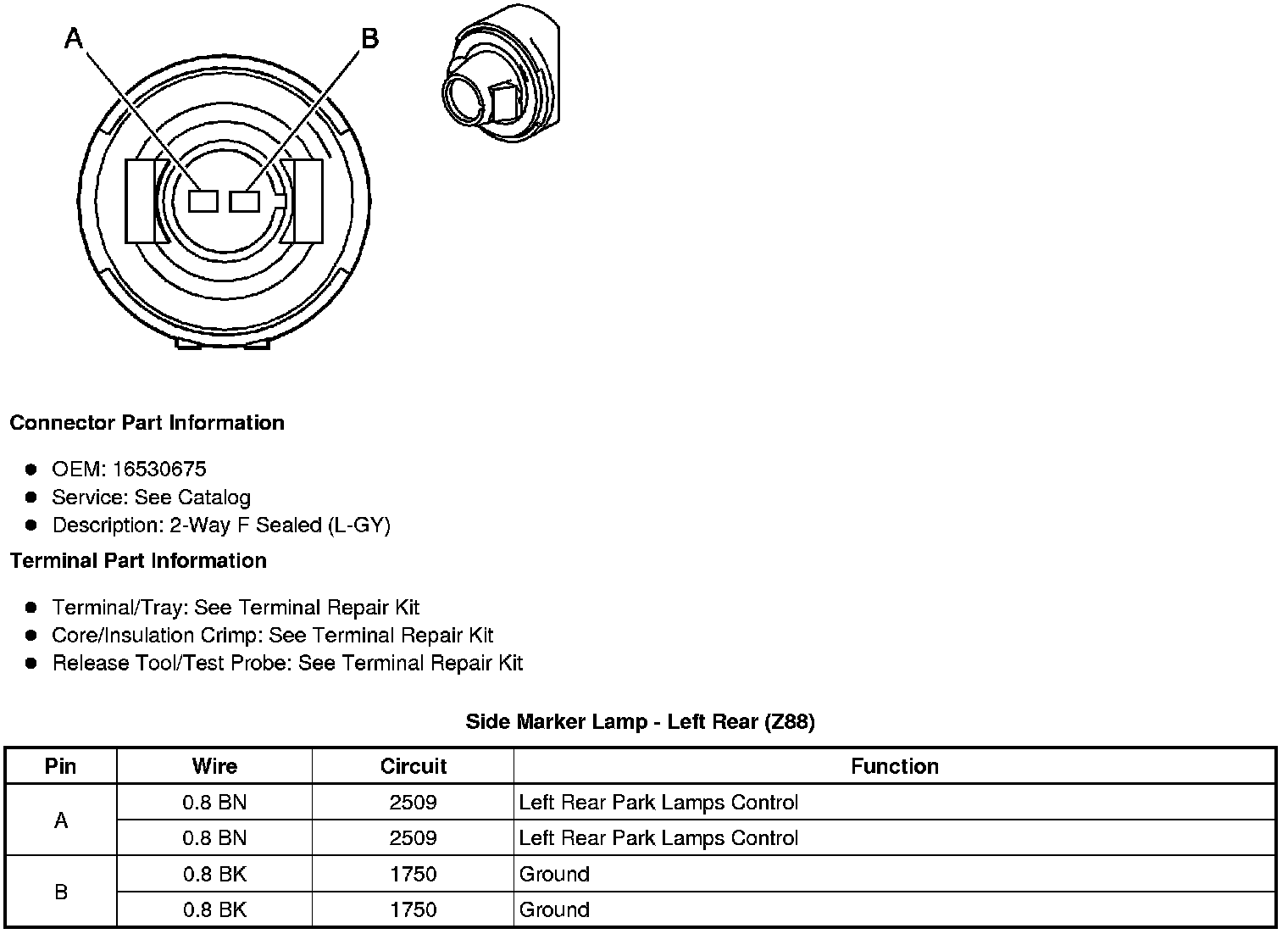

Side Marker Lamp - Left Rear (Z88)





Side Marker Lamp - Right Front (X88 or Z88)





Side Marker Lamp - Right Rear (X88 with E52 or TB7)

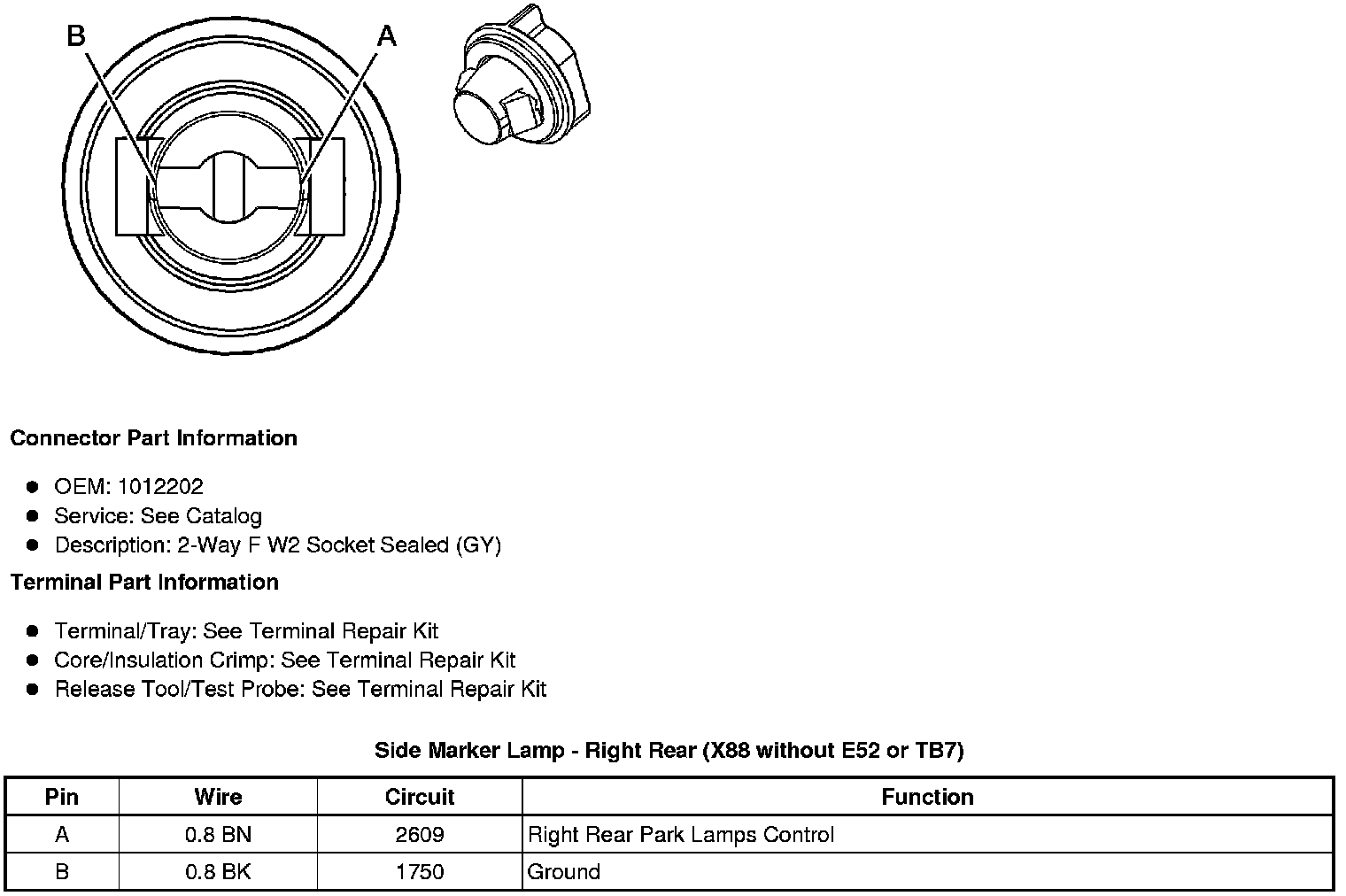

Side Marker Lamp - Right Rear (X88 without E52 or TB7)

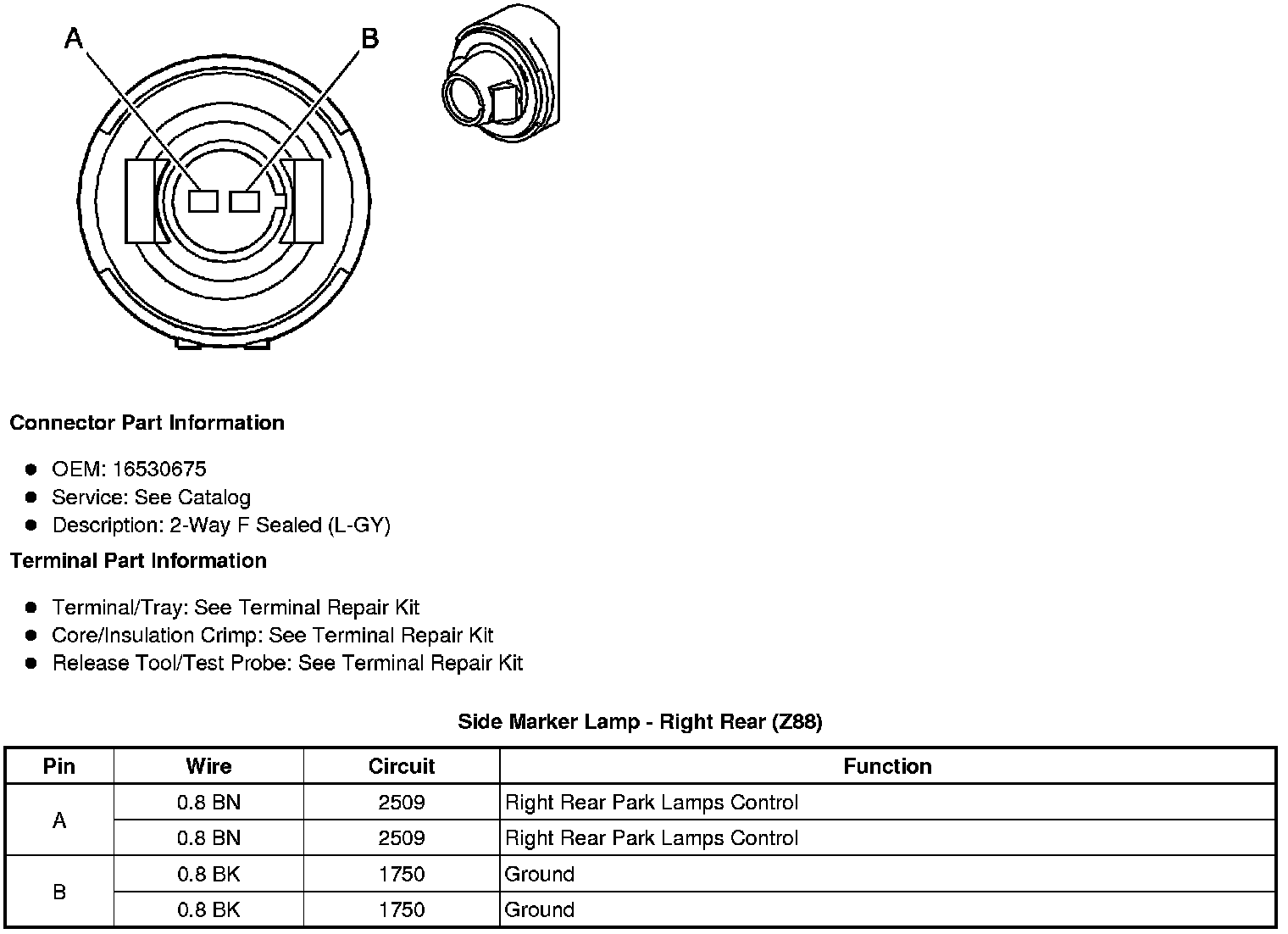

Side Marker Lamp - Right Rear (Z88)
