Liftgate Window Glass

Component Connector End Views

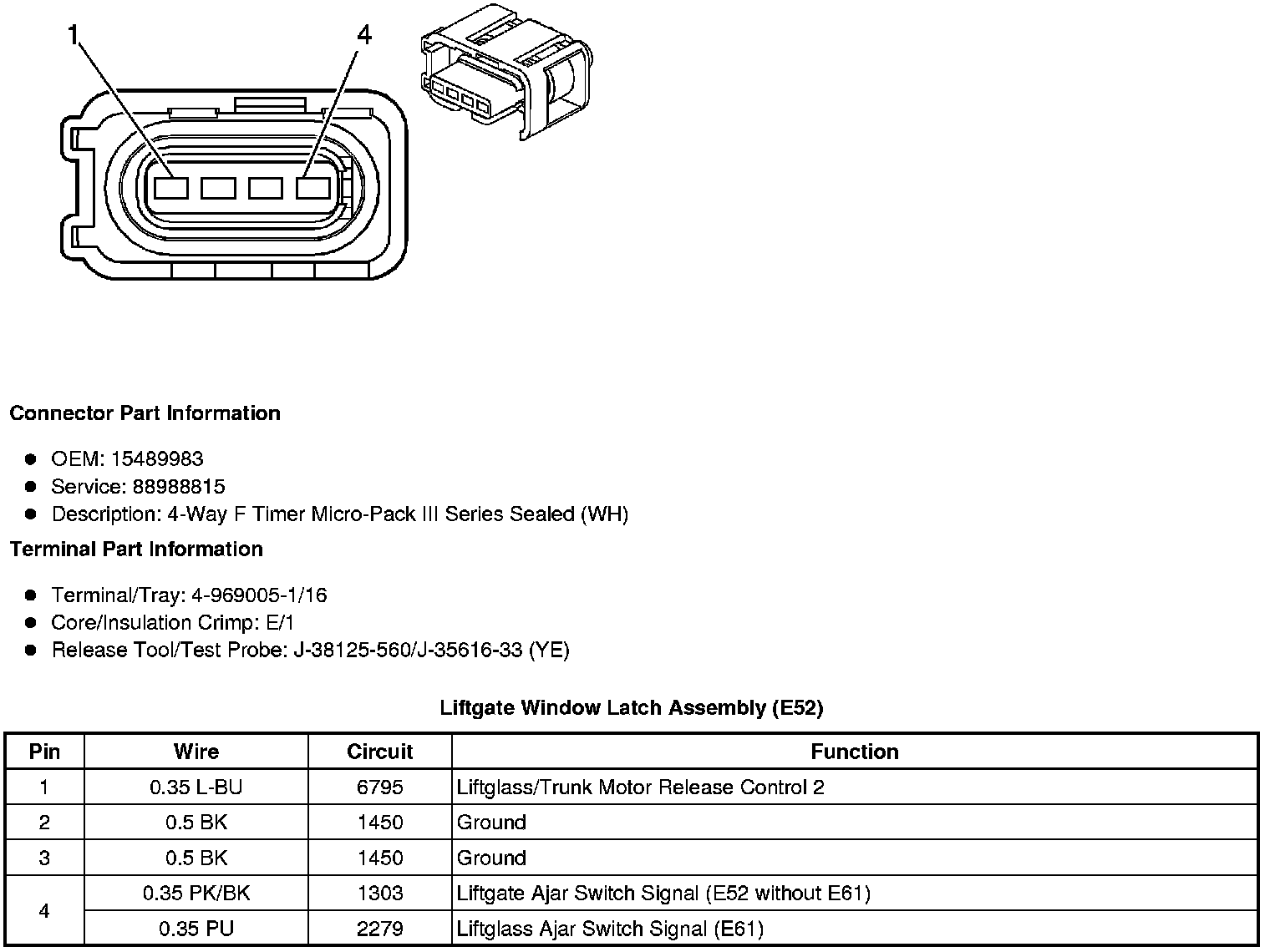

Liftgate Window Latch Assembly (E52)

Liftgate Window Release Switch (E52)
