Instrument Cluster / Carrier




Component Connector End Views

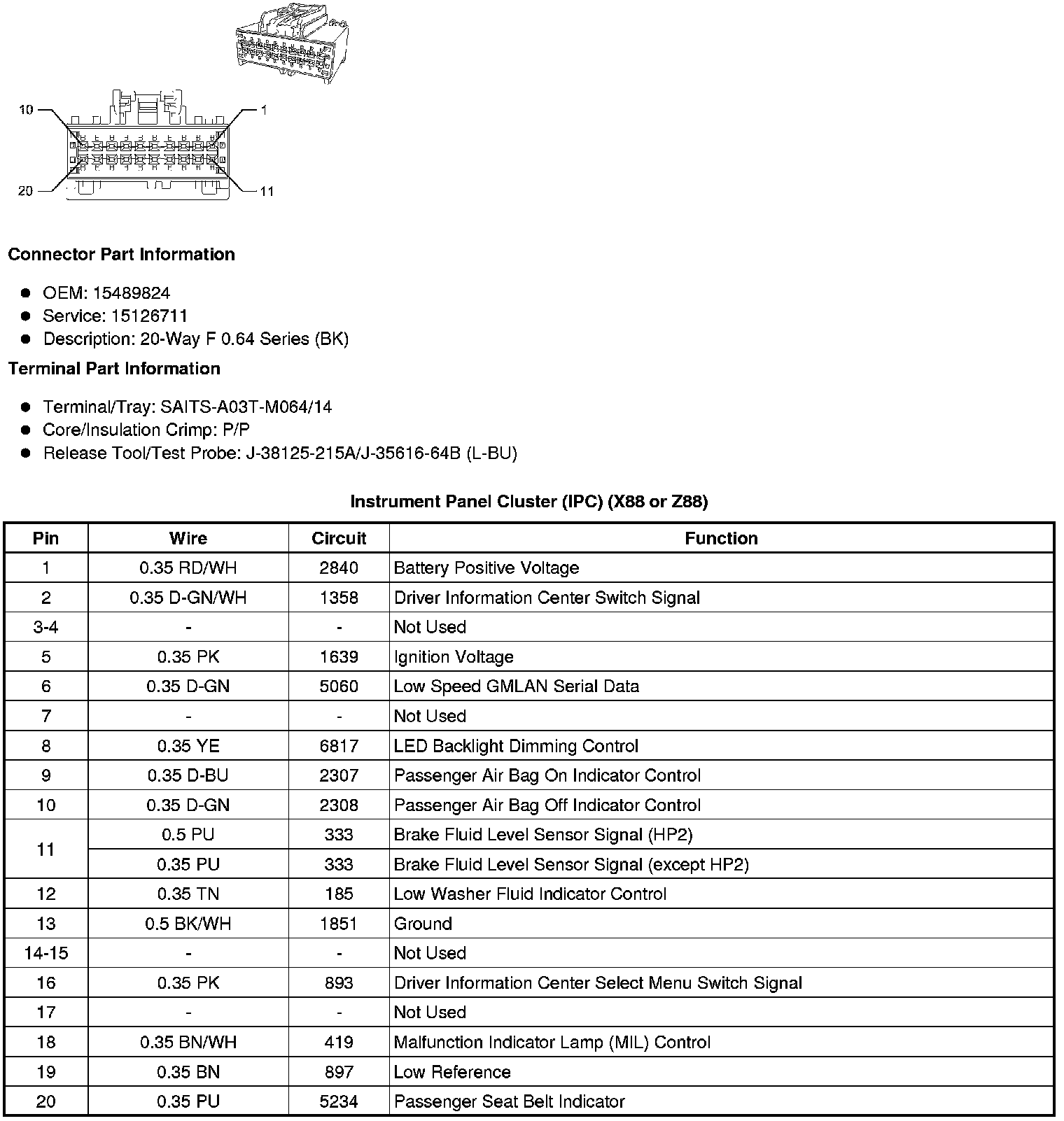

Instrument Panel Cluster (IPC) (X88 or Z88)

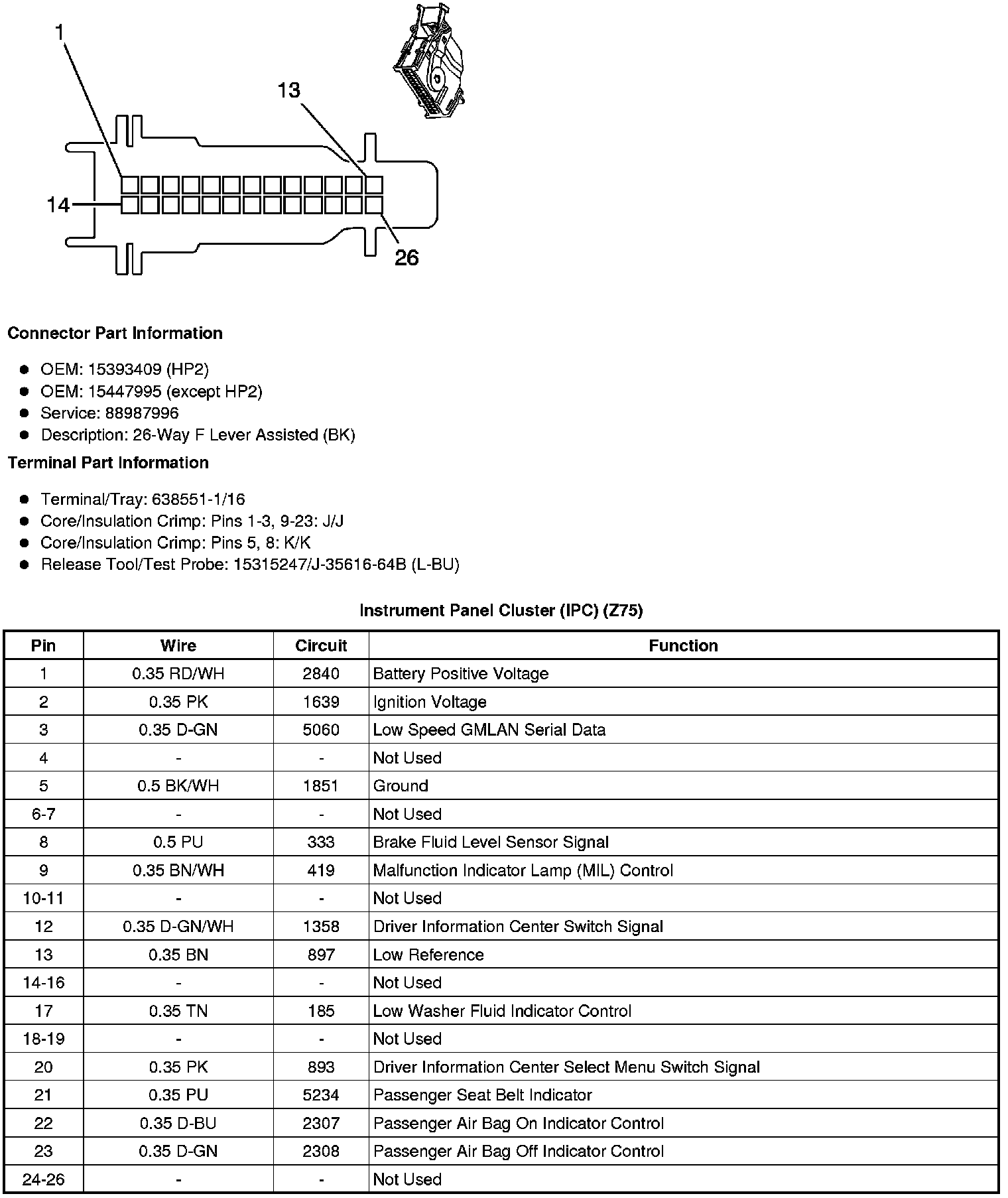

Instrument Panel Cluster (IPC) (Z75)

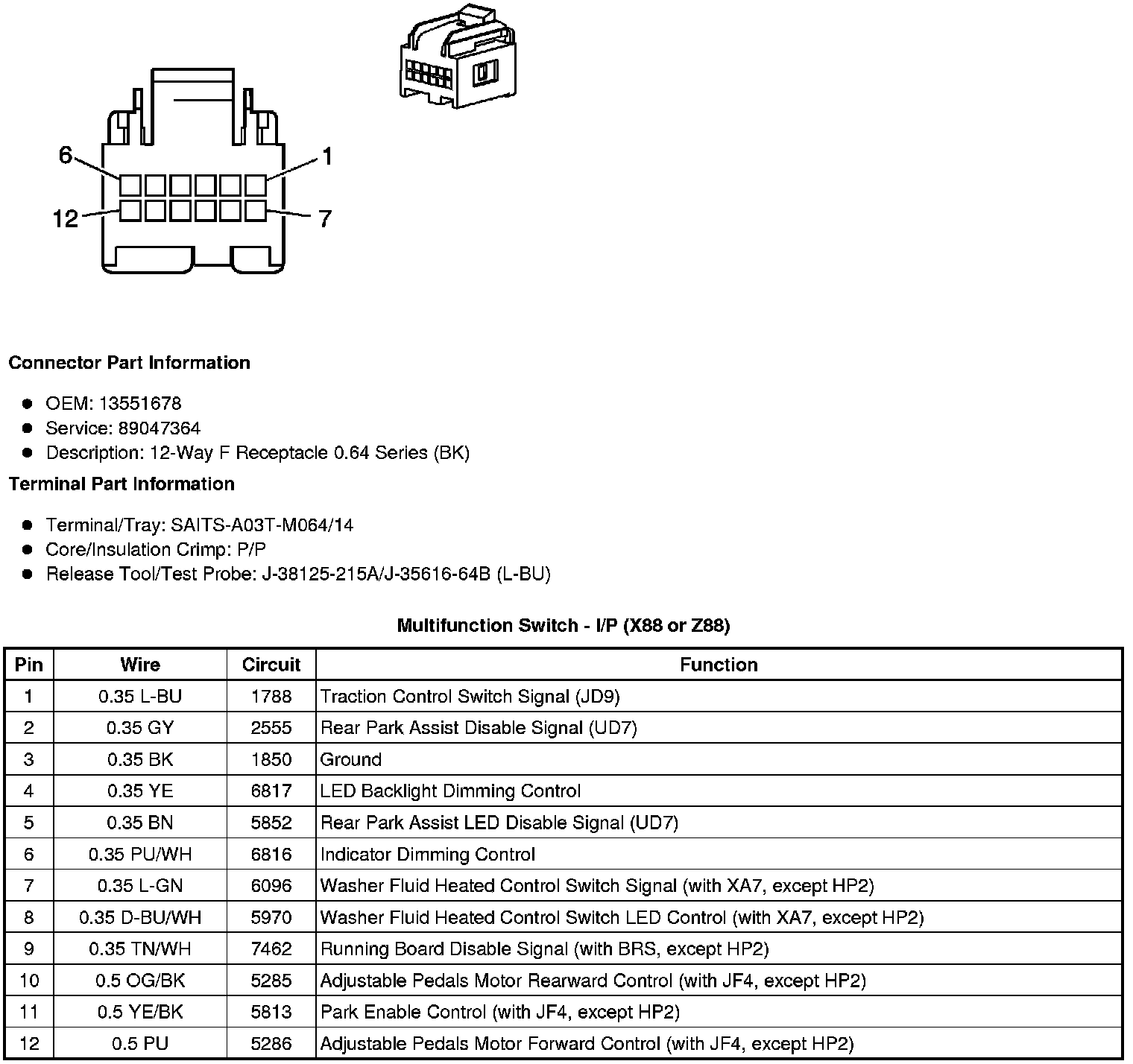

Multifunction Switch - I/P (X88 or Z88)

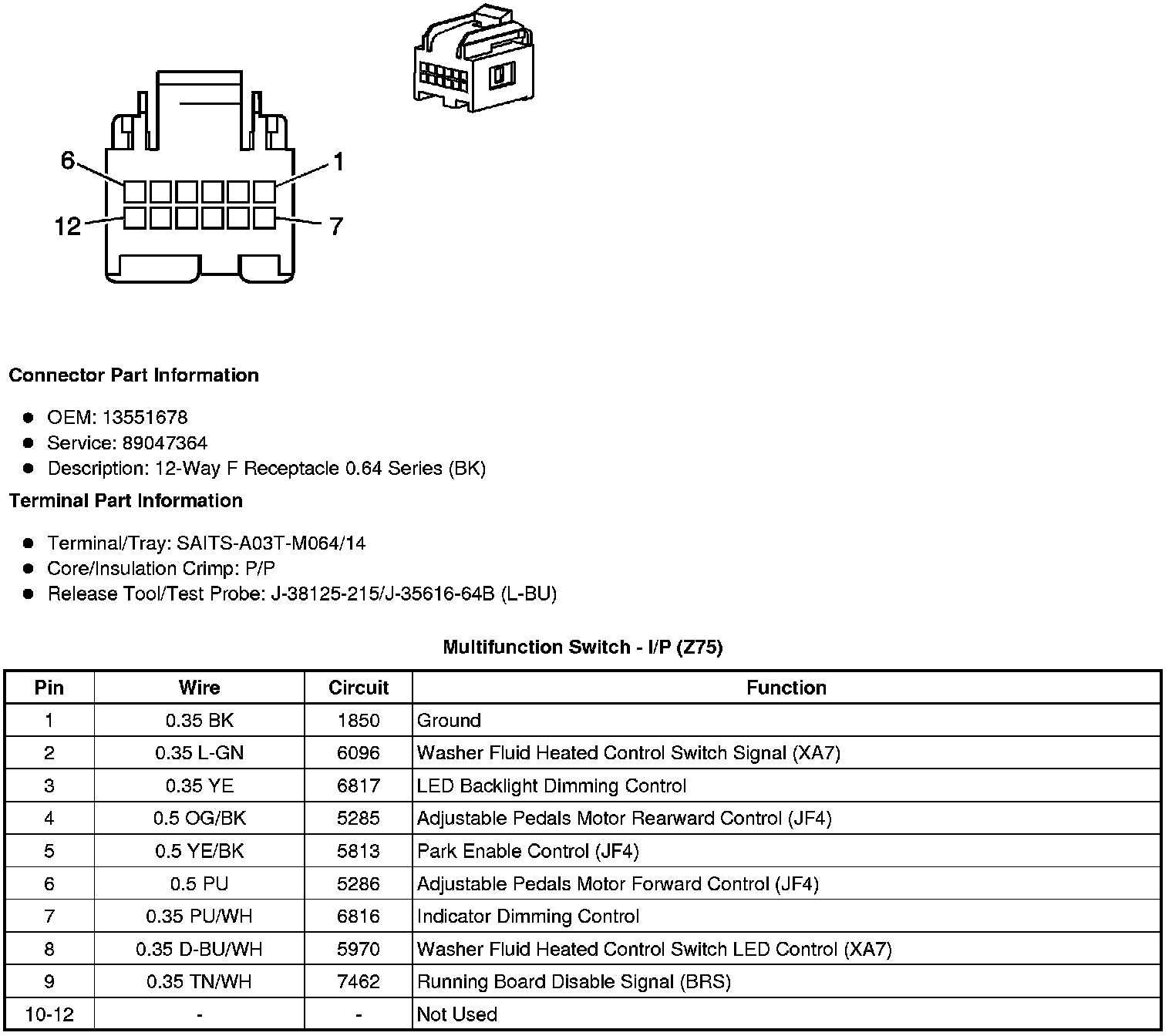

Multifunction Switch - I/P (Z75)
