Impact Sensor




Component Connector End Views

Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)





Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)





Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)





Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)





Inflatable Restraint Front End Sensor - Left





Inflatable Restraint Front End Sensor - Right

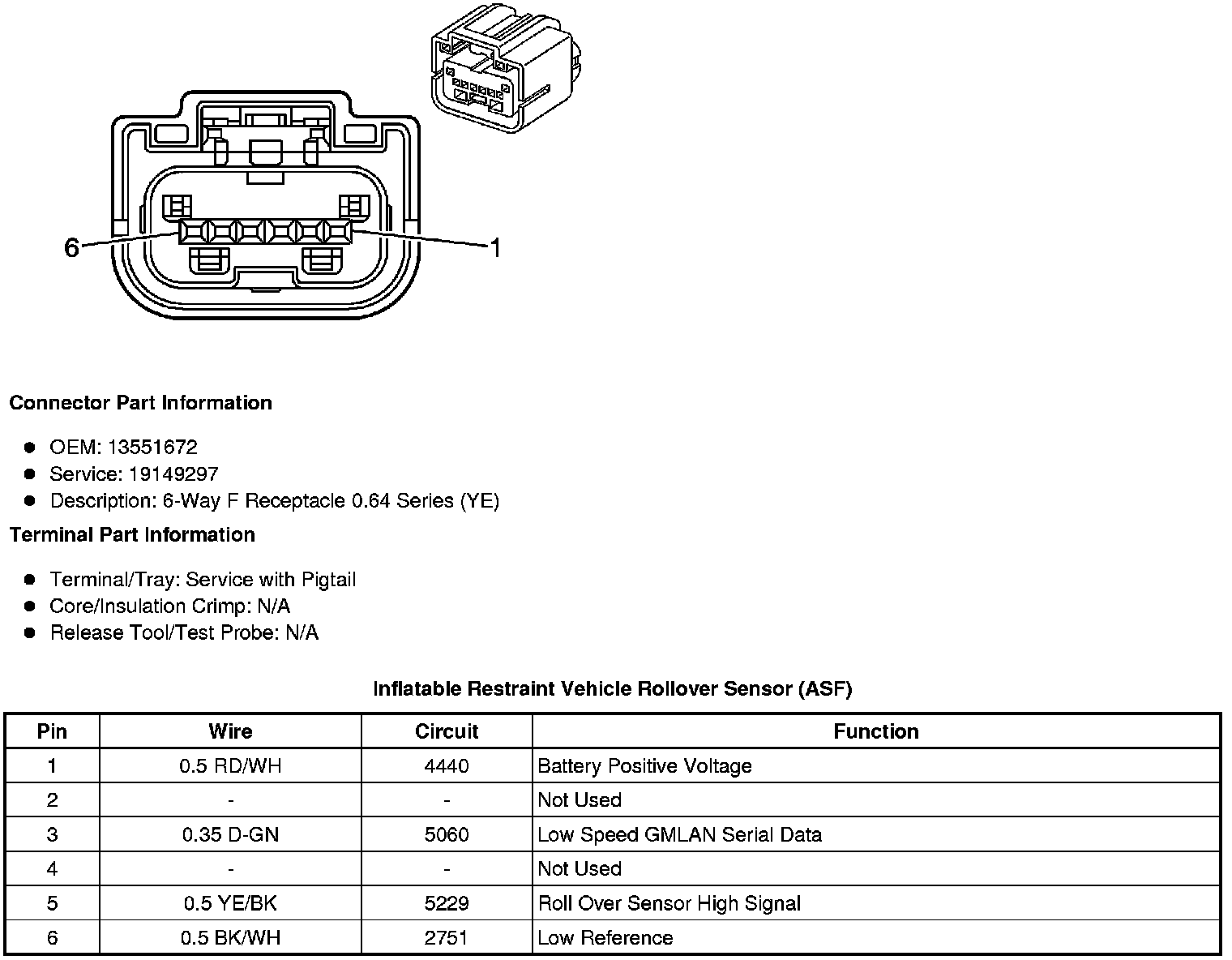

Inflatable Restraint Vehicle Rollover Sensor (ASF)
