Ignition Coil




Component Connector End Views

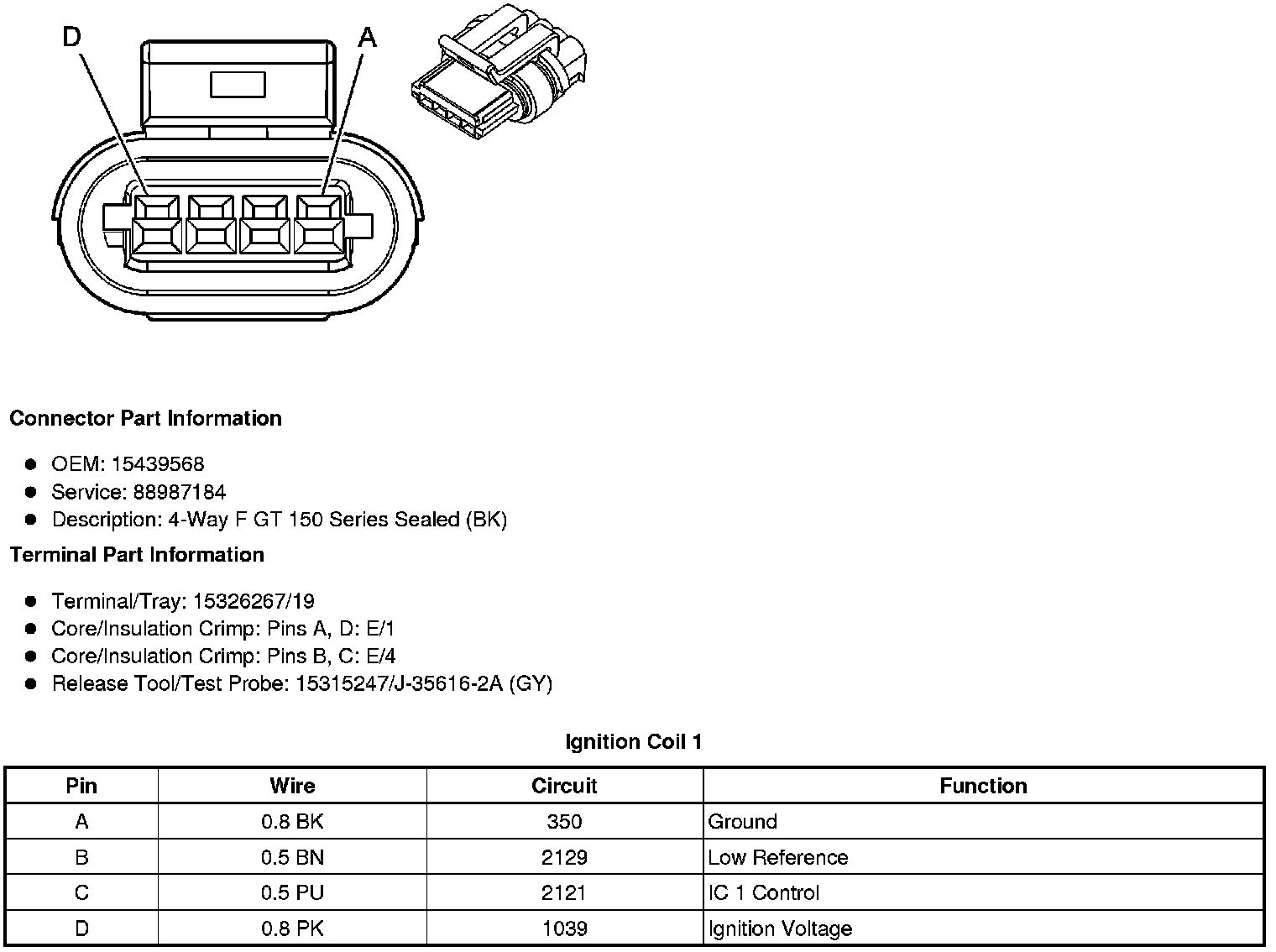

Ignition Coil 1

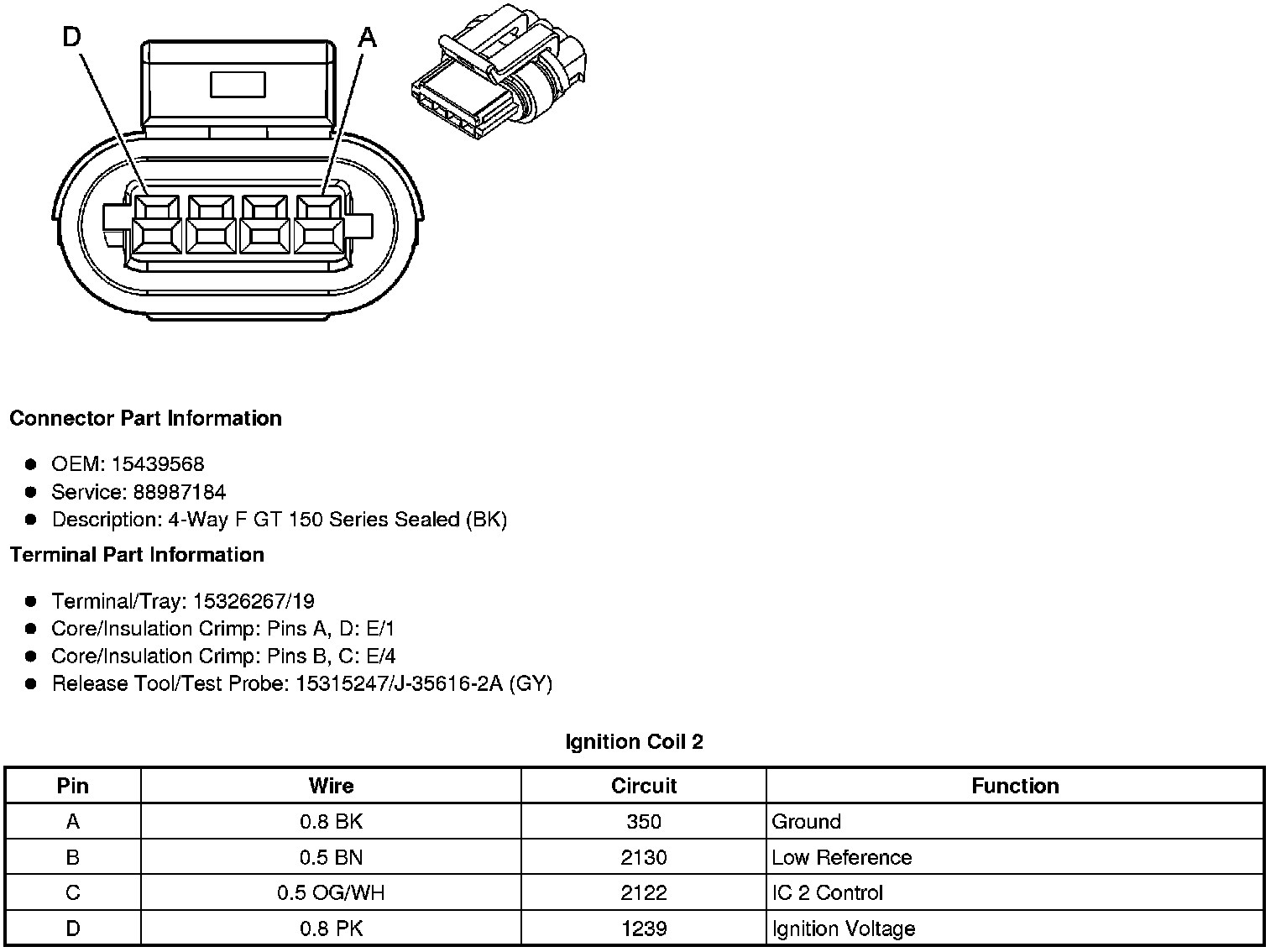

Ignition Coil 2

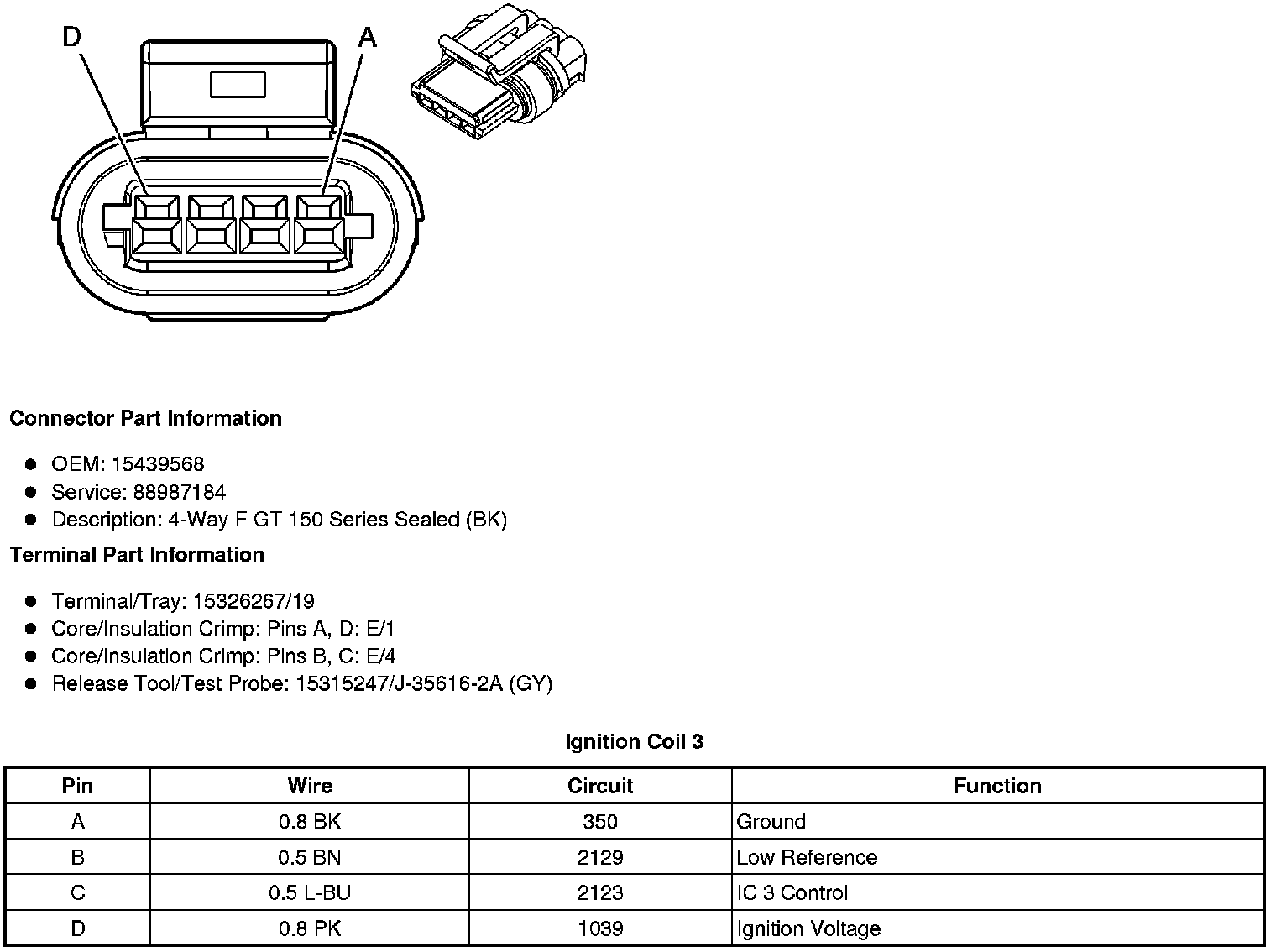

Ignition Coil 3





Ignition Coil 4

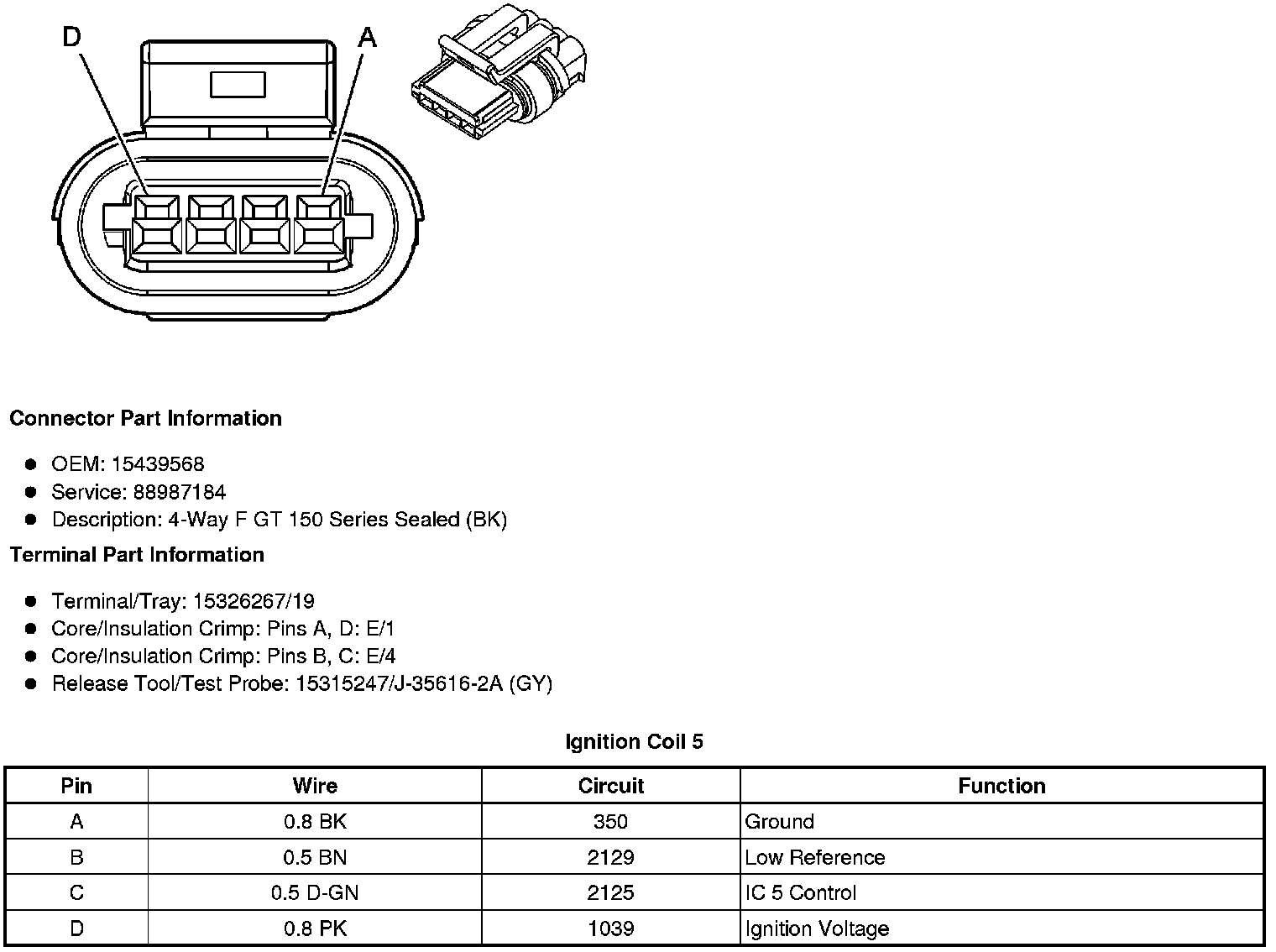

Ignition Coil 5

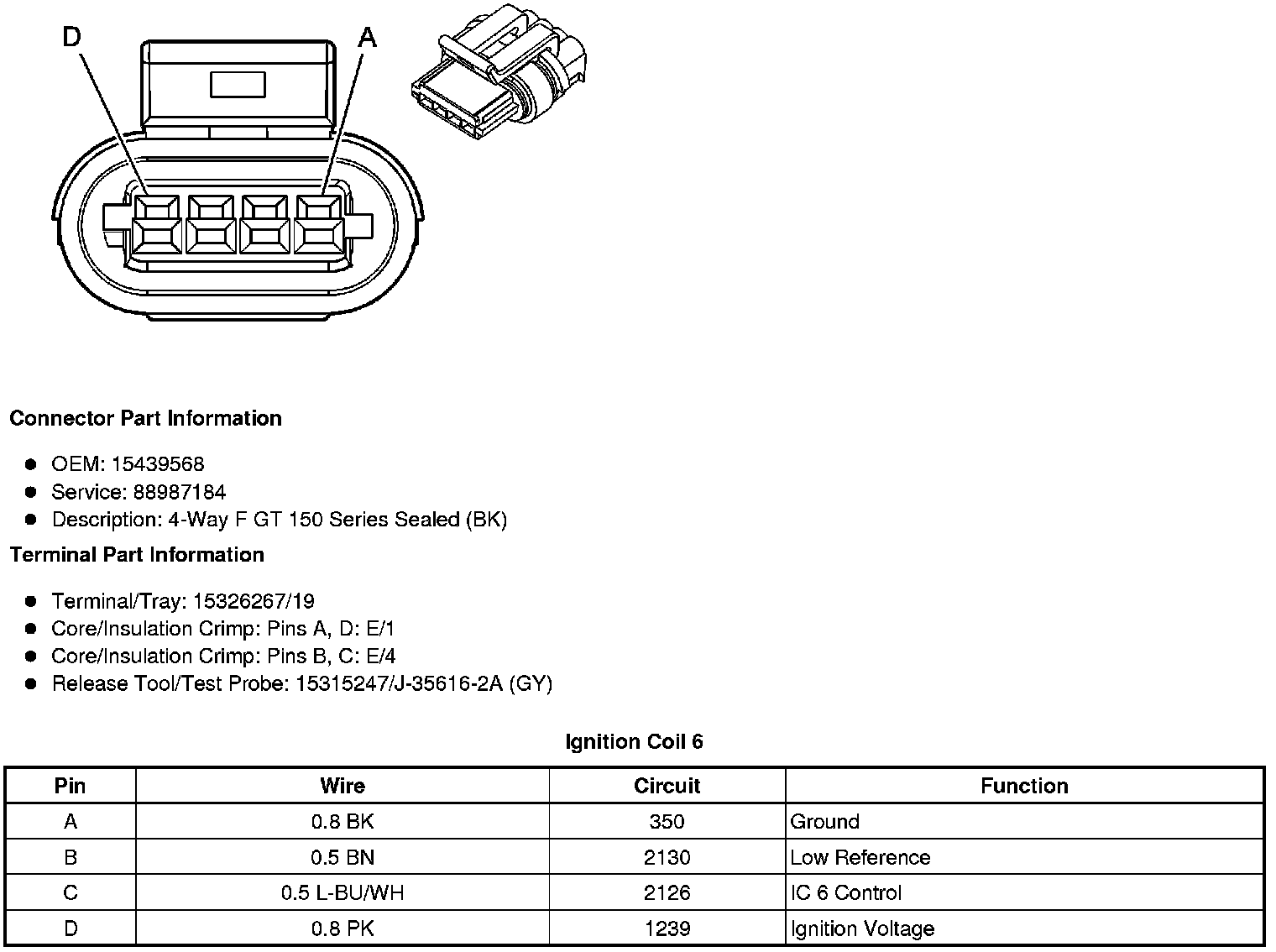

Ignition Coil 6





Ignition Coil 7





Ignition Coil 8
