Television / Monitor




Component Connector End Views

Digital Video Disc (DVD) Display - Driver Seat Headrest X1 (AYE)





Digital Video Disc (DVD) Display - Driver Seat Headrest X2 (AYE)

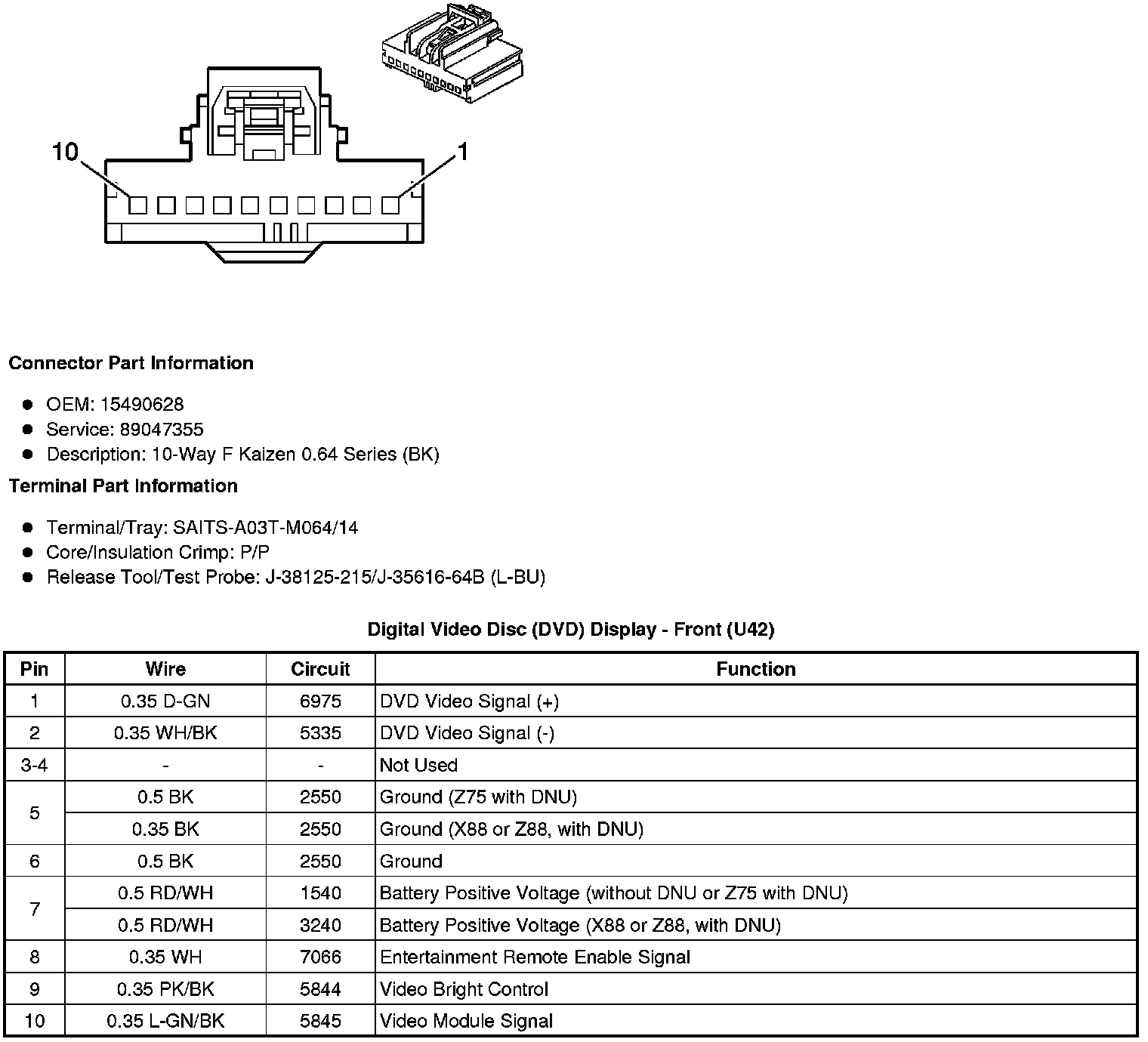

Digital Video Disc (DVD) Display - Front (U42)

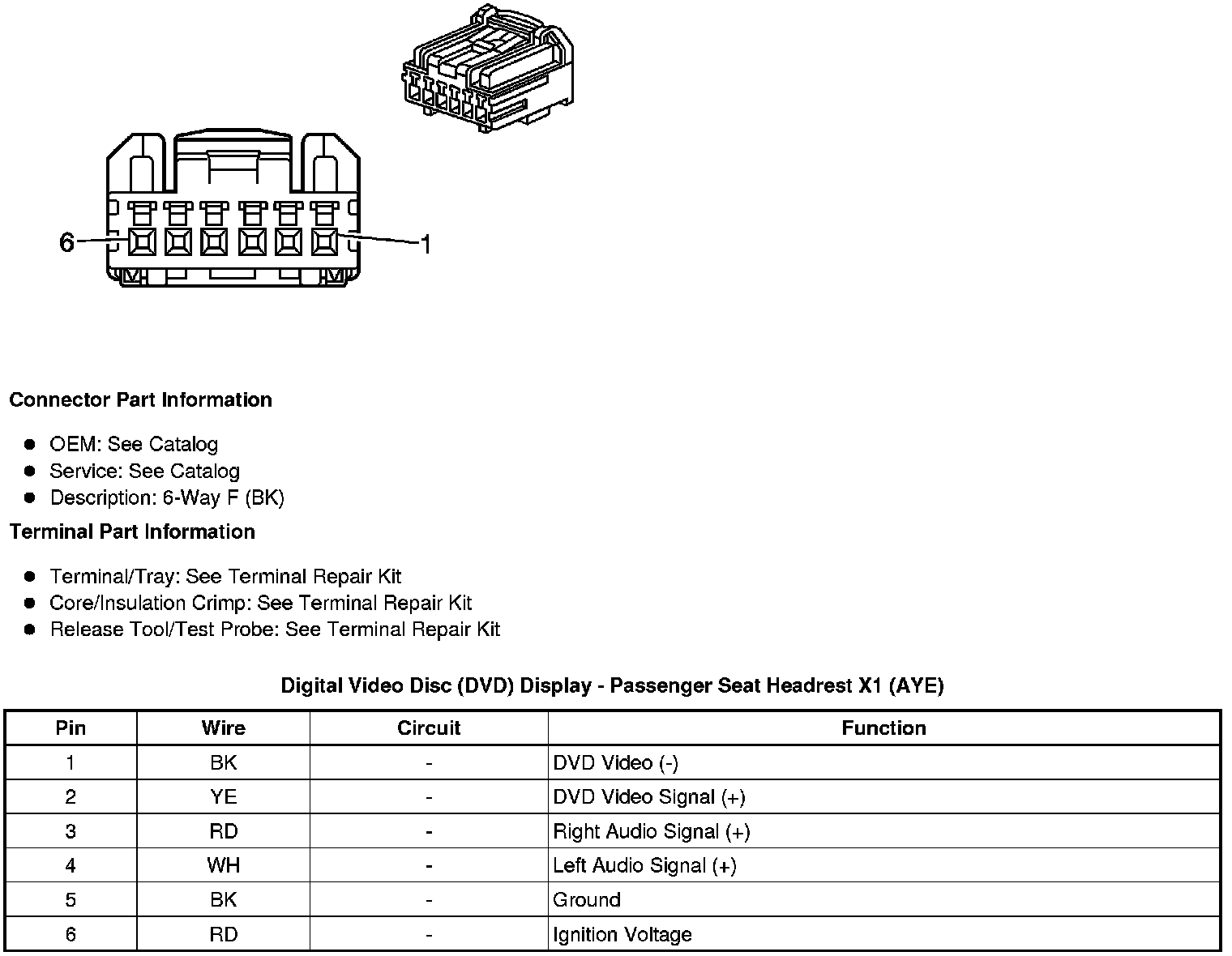

Digital Video Disc (DVD) Display - Passenger Seat Headrest X1 (AYE)





Digital Video Disc (DVD) Display - Passenger Seat Headrest X2 (AYE)

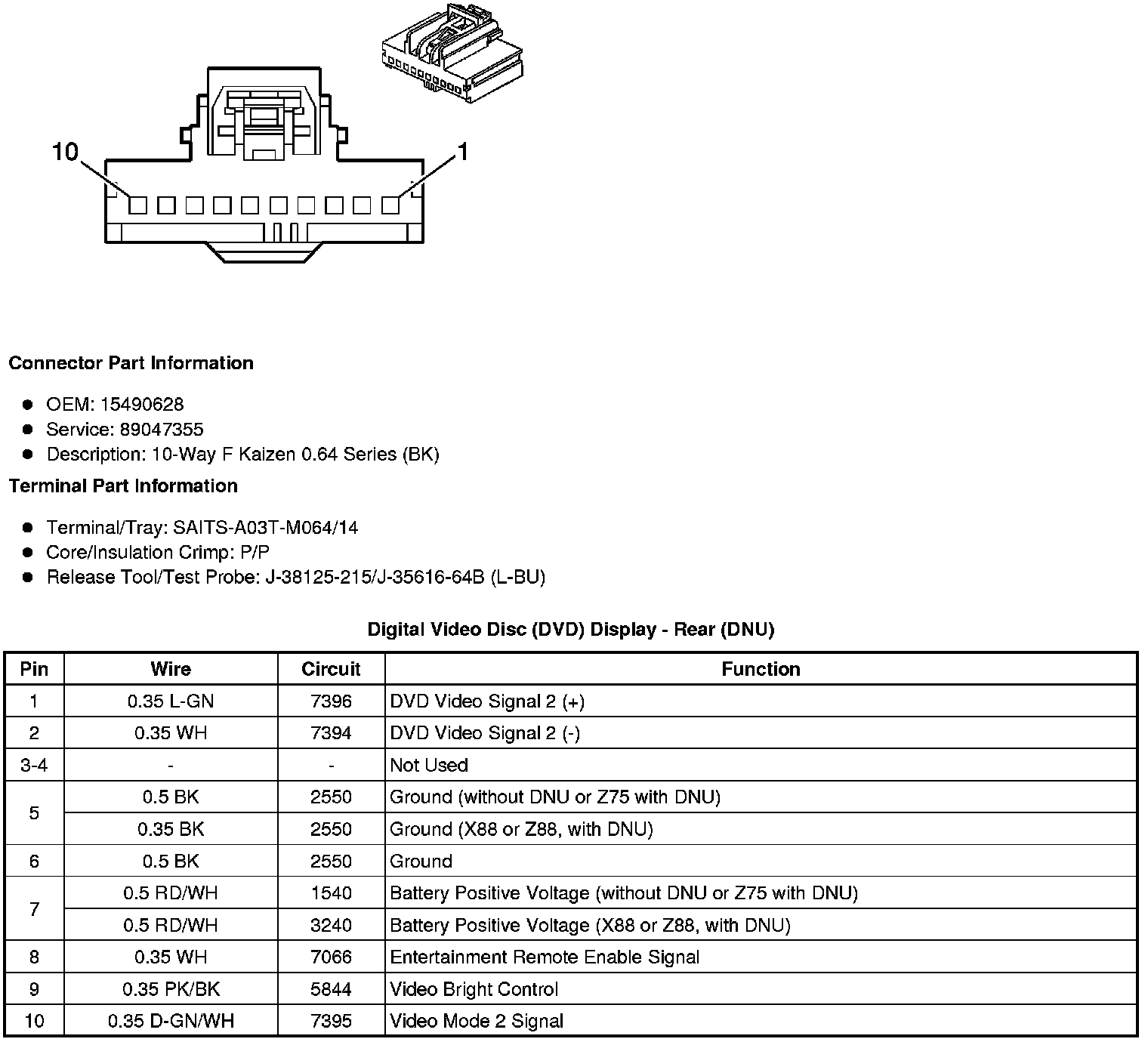

Digital Video Disc (DVD) Display - Rear (DNU)

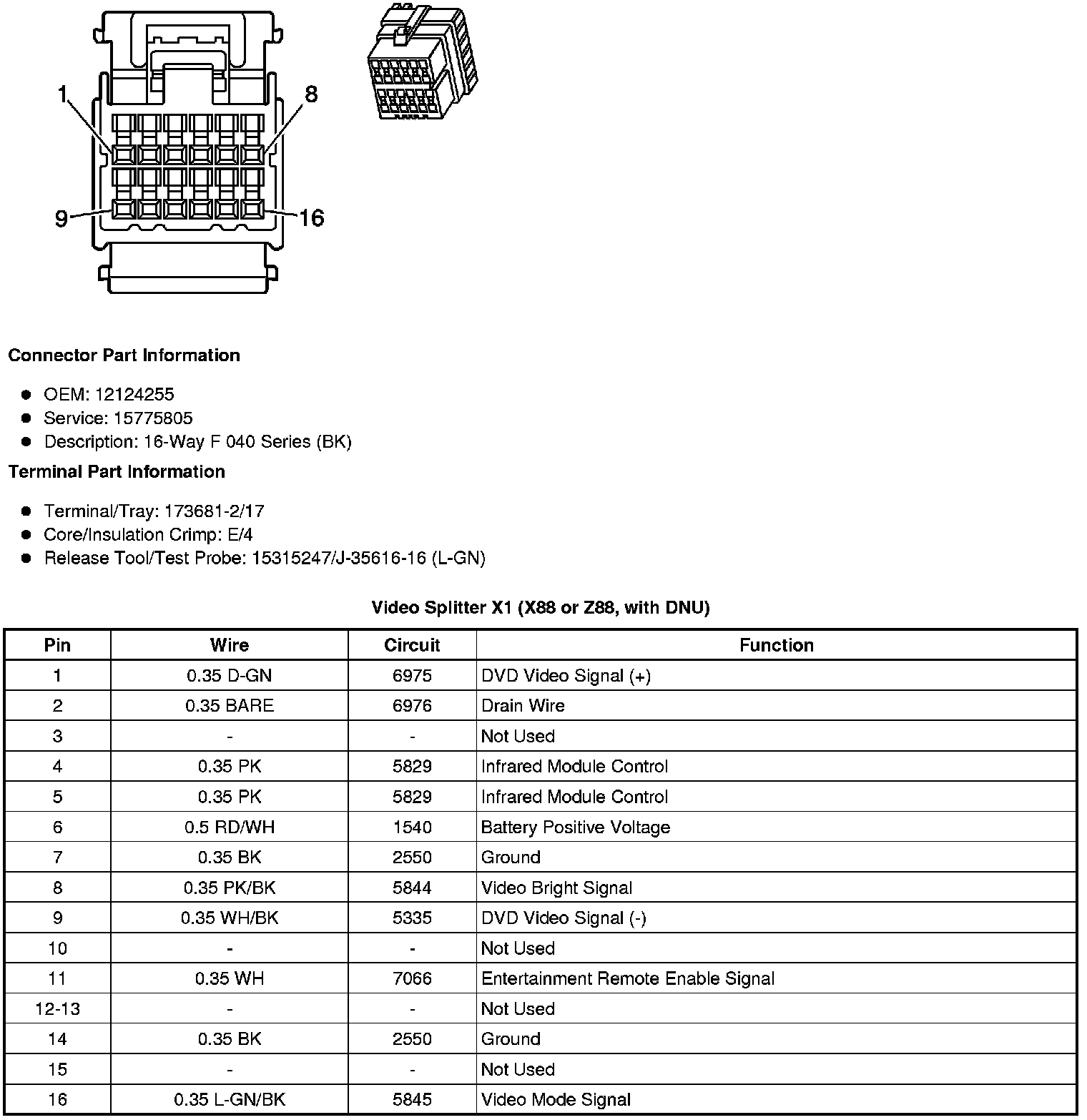

Video Splitter X1 (X88 or Z88, with DNU)

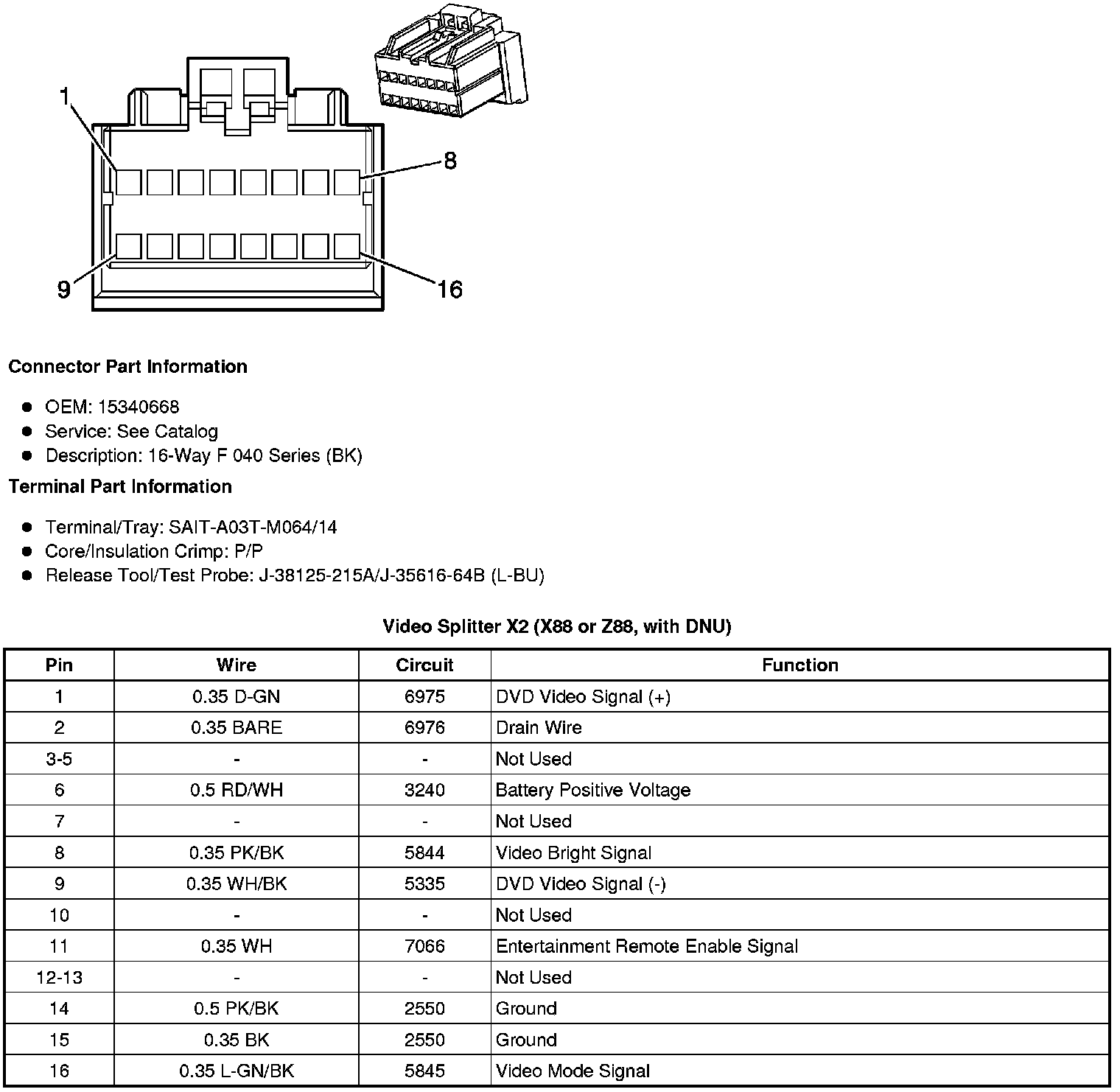

Video Splitter X2 (X88 or Z88, with DNU)





Video Splitter X3 (X88 or Z88, with DNU)
