Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

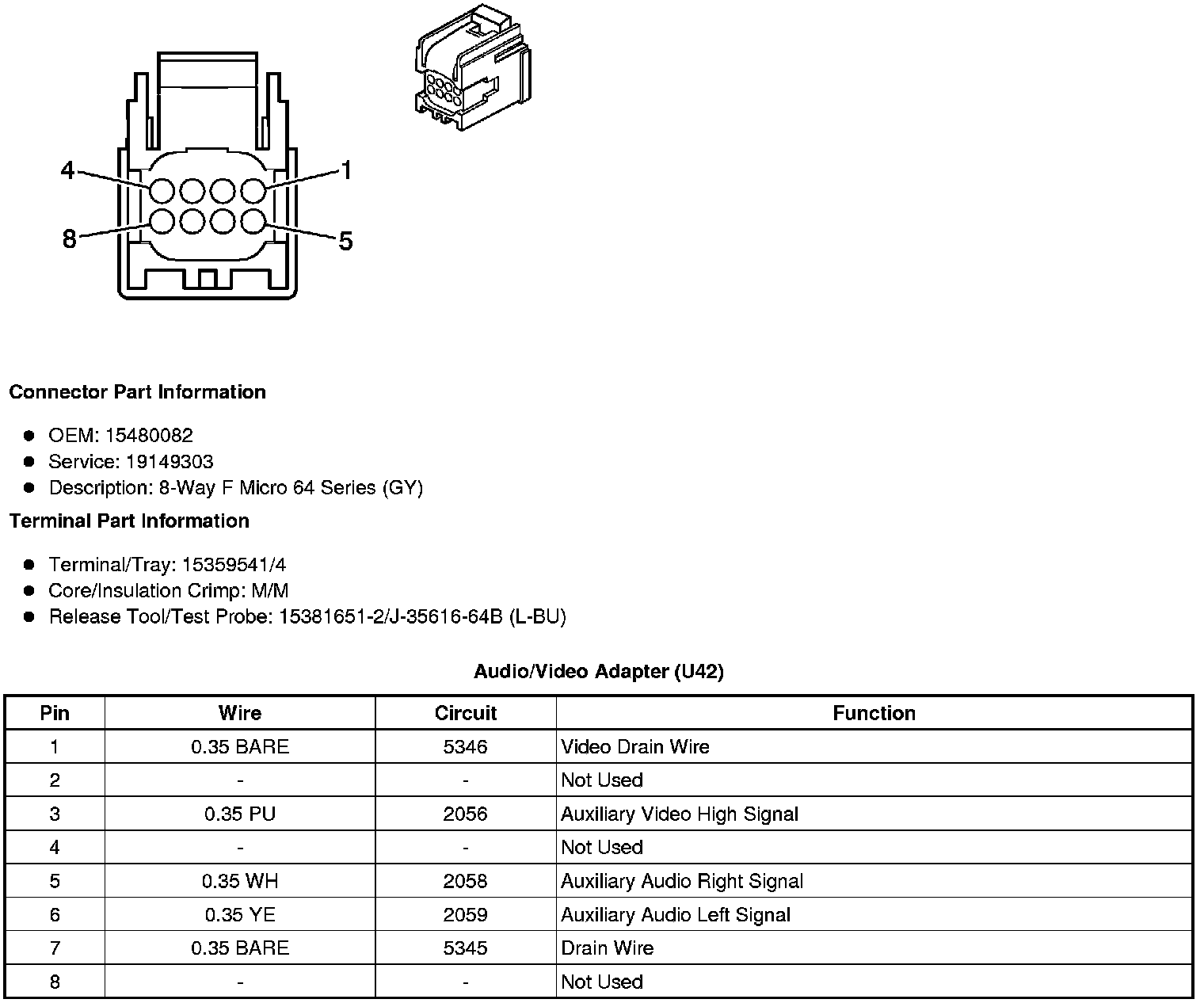

Component Connector End Views
Audio/Video Adapter (U42)
