Daytime Running Lamp




Component Connector End Views

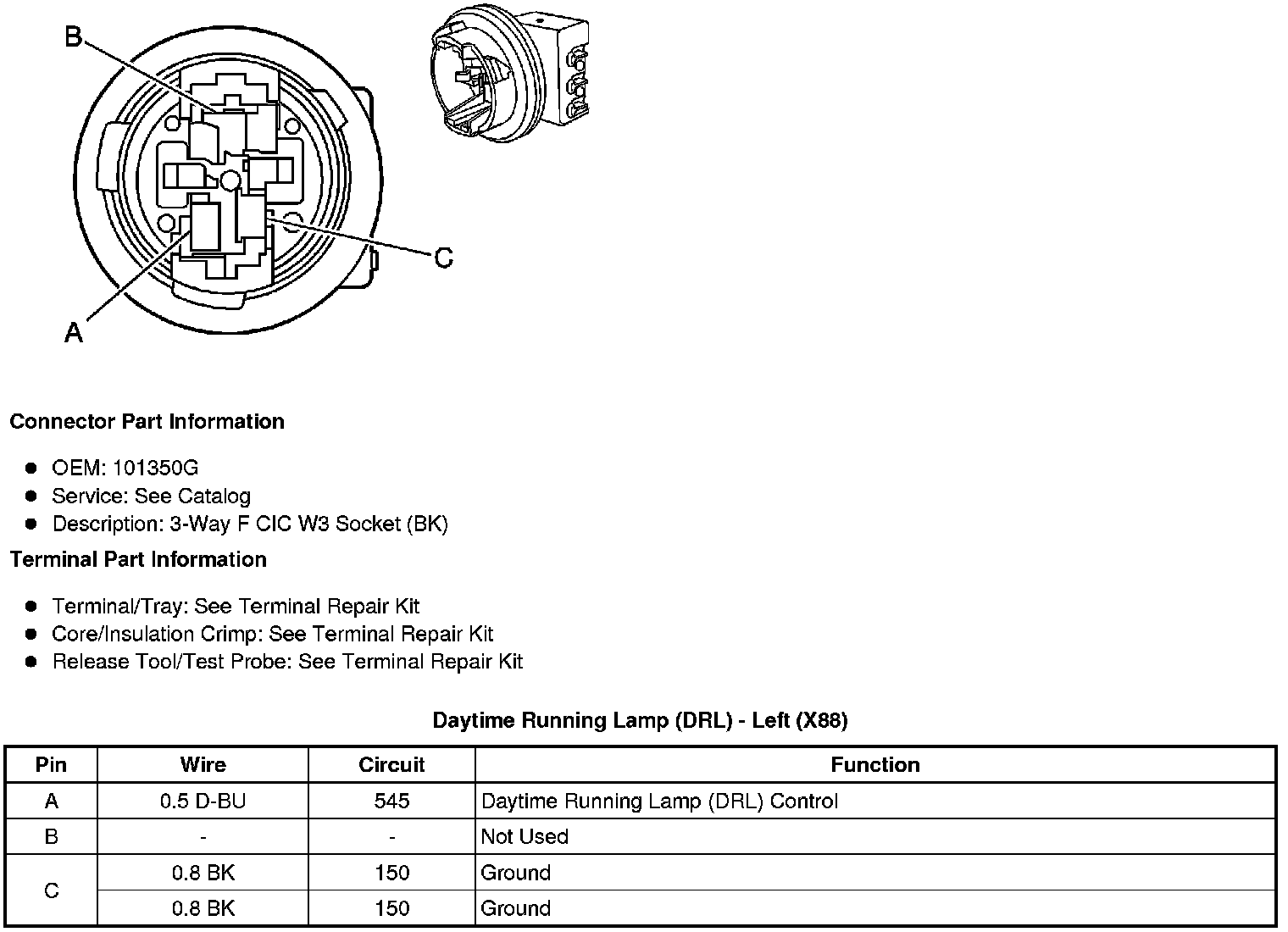

Daytime Running Lamp (DRL) - Left (X88)

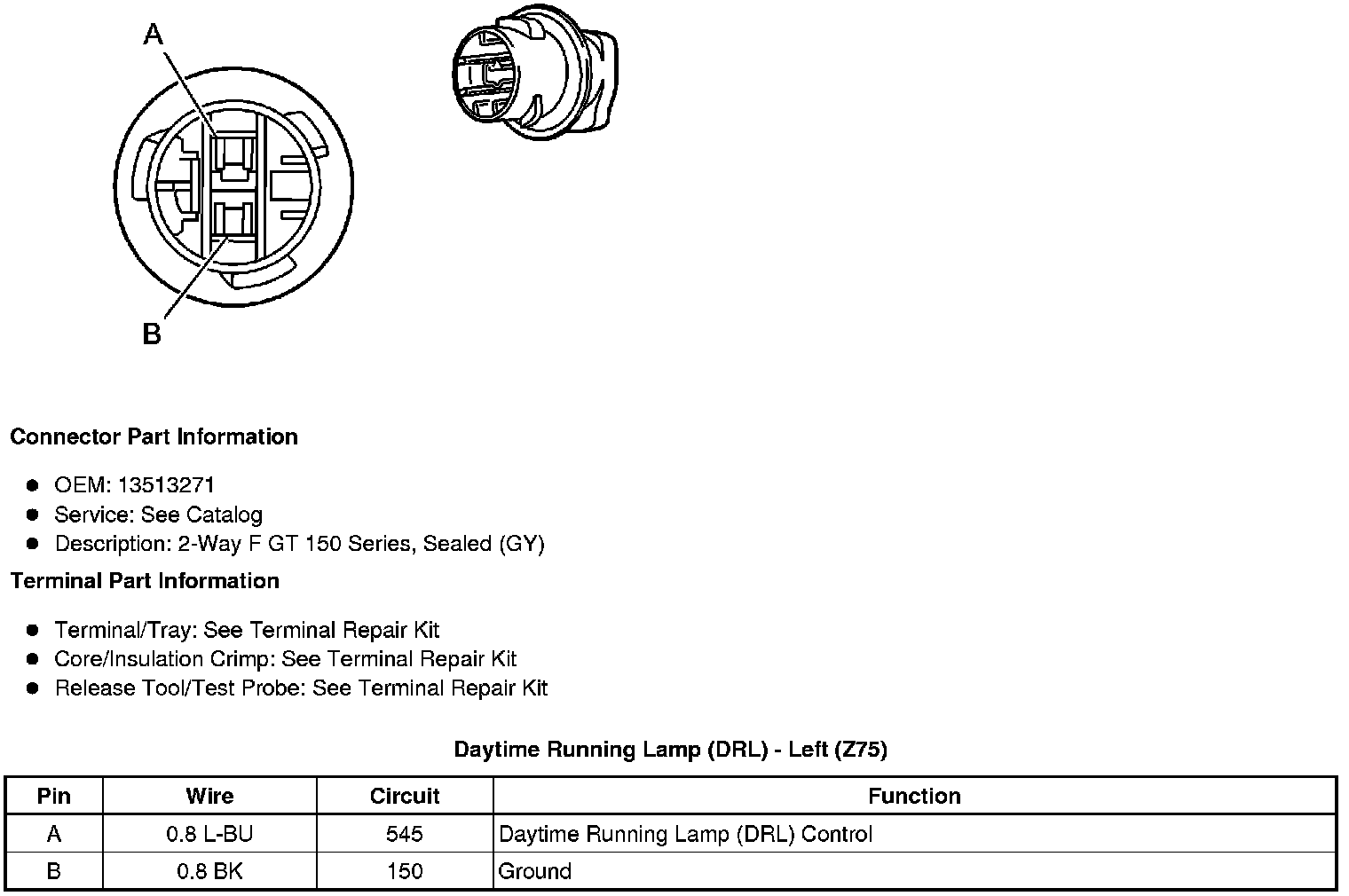

Daytime Running Lamp (DRL) - Left (Z75)

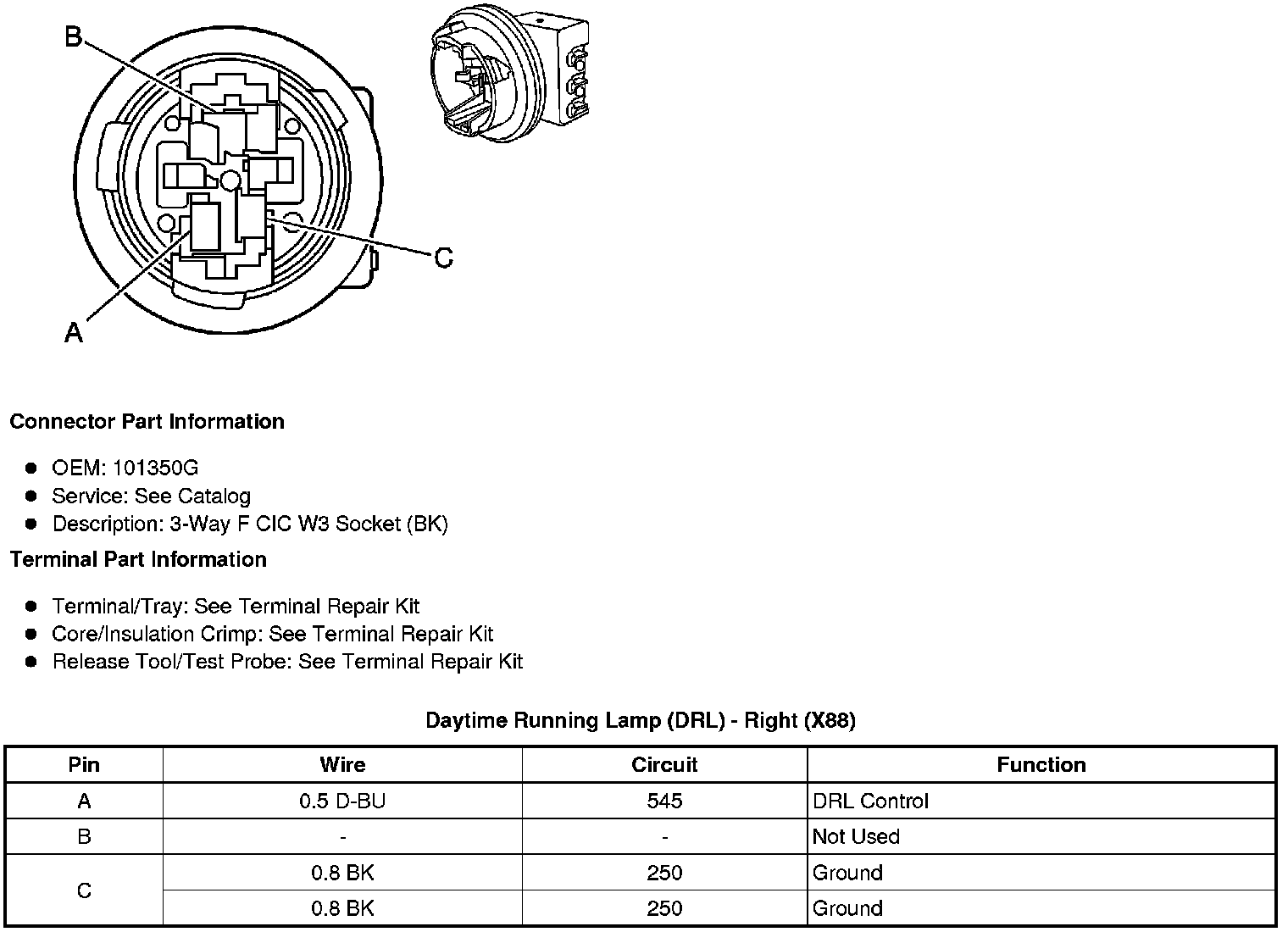

Daytime Running Lamp (DRL) - Right (X88)

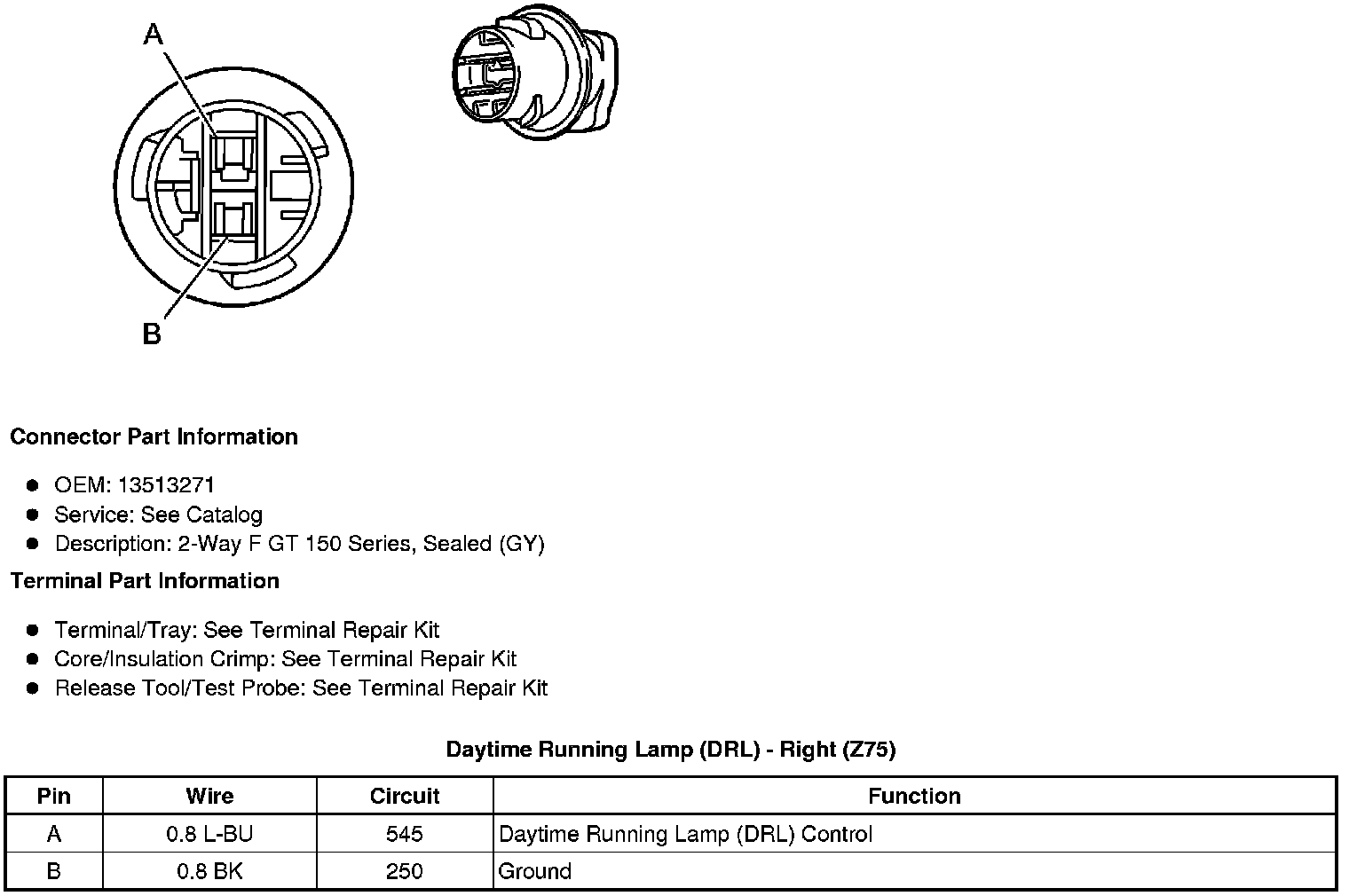

Daytime Running Lamp (DRL) - Right (Z75)

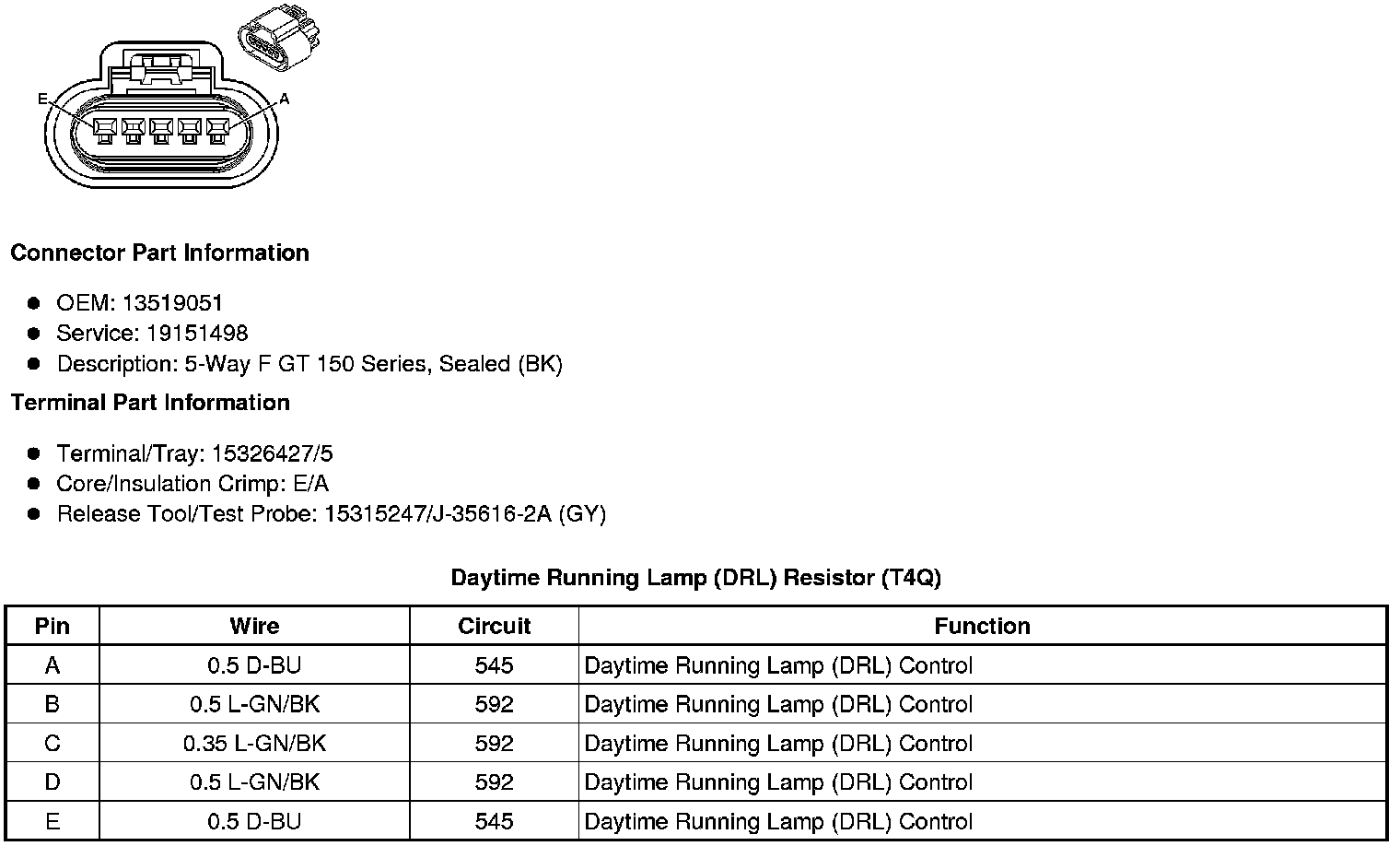

Daytime Running Lamp (DRL) Resistor (T4Q)
