Damping Control Actuator




Component Connector End Views

Shock Absorber Actuator- Left Front (Z55)






Shock Absorber Actuator - Left Rear (Z55)

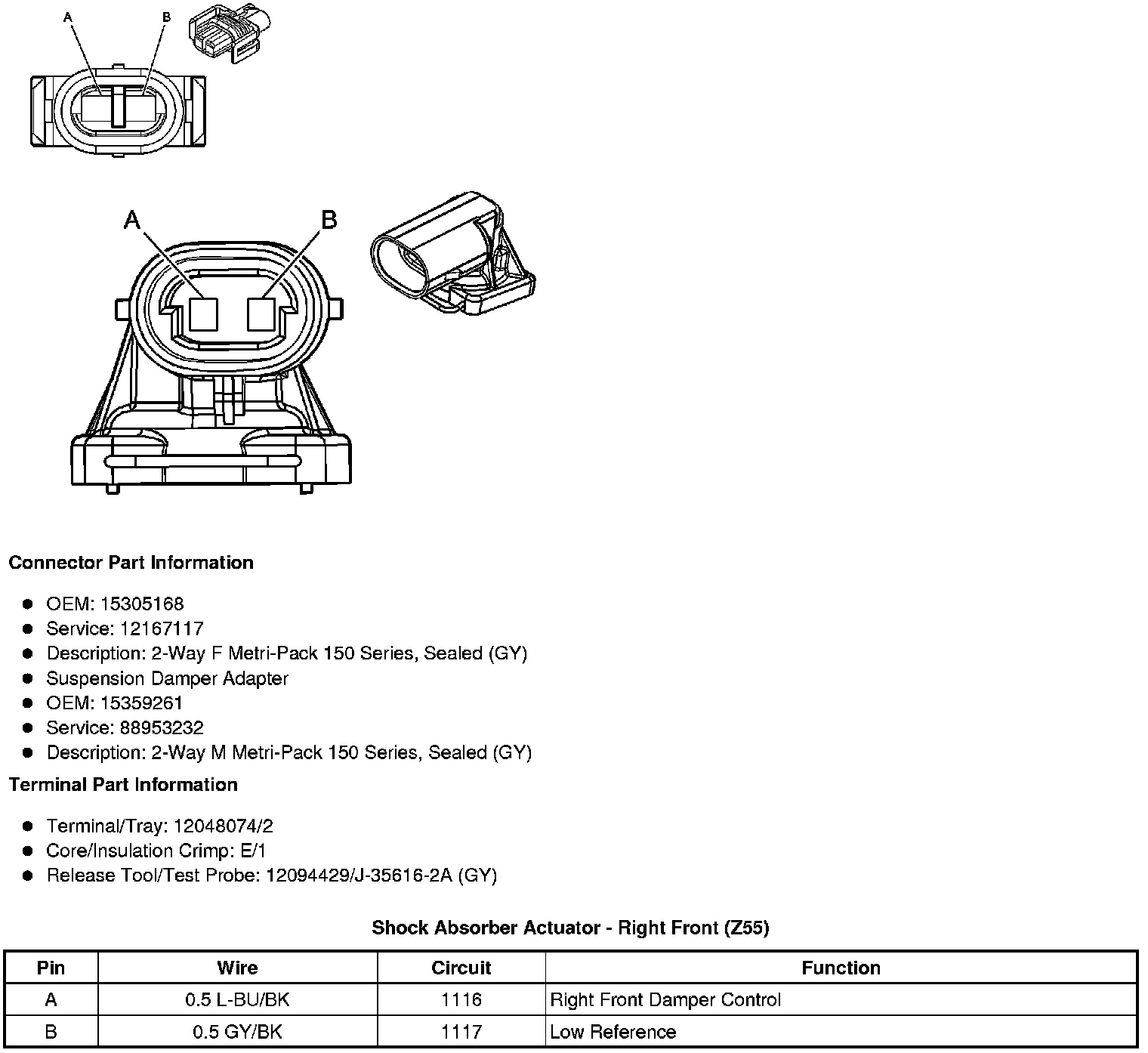

Shock Absorber Actuator - Right Front (Z55)





Shock Absorber Actuator - Right Rear (Z55)
