X407

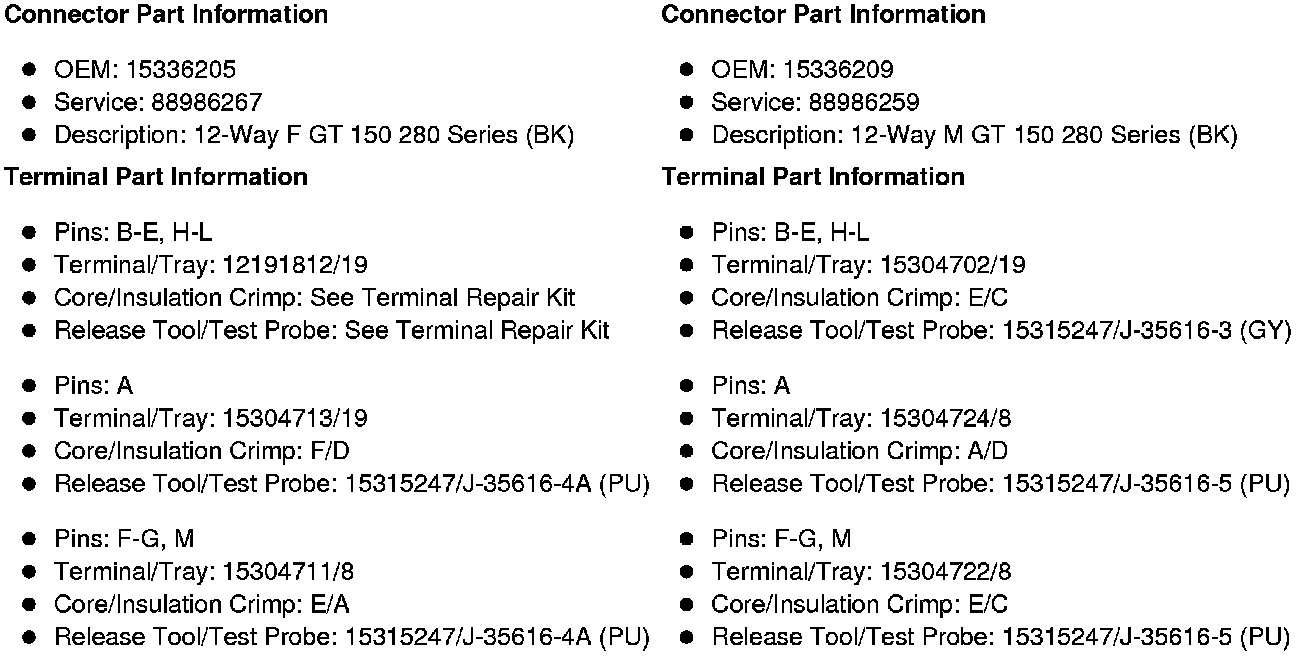

Inline Harness Connector End Views

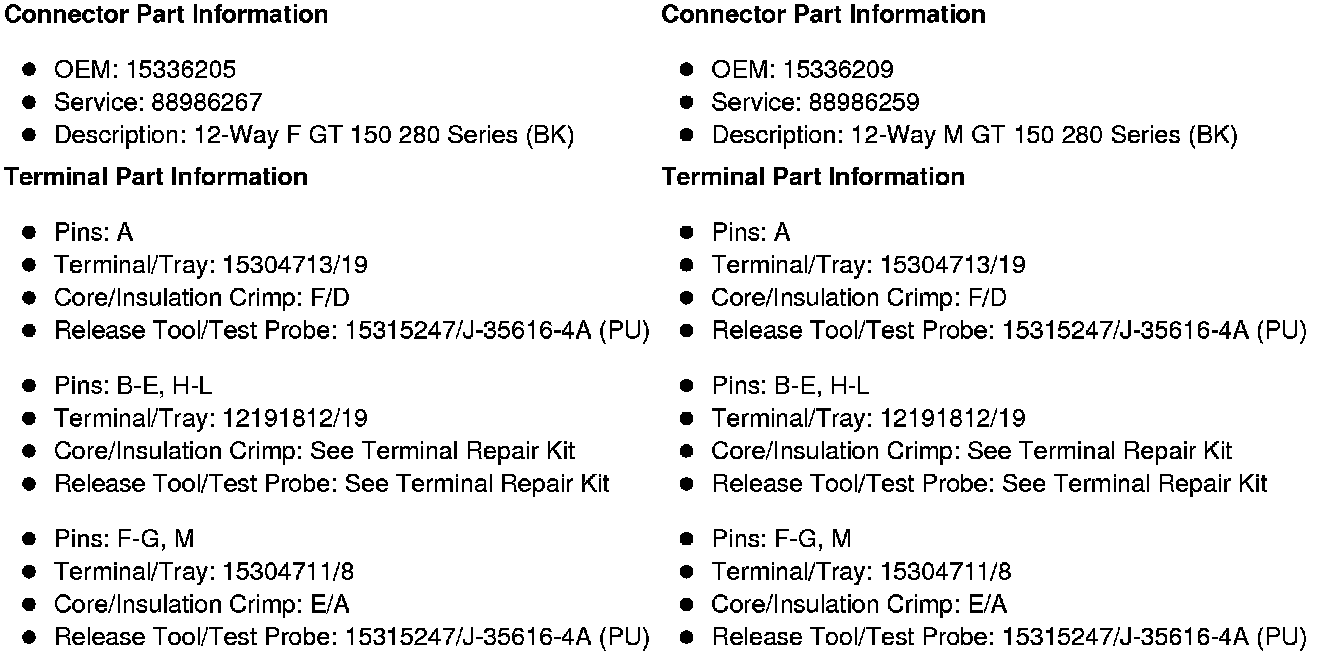

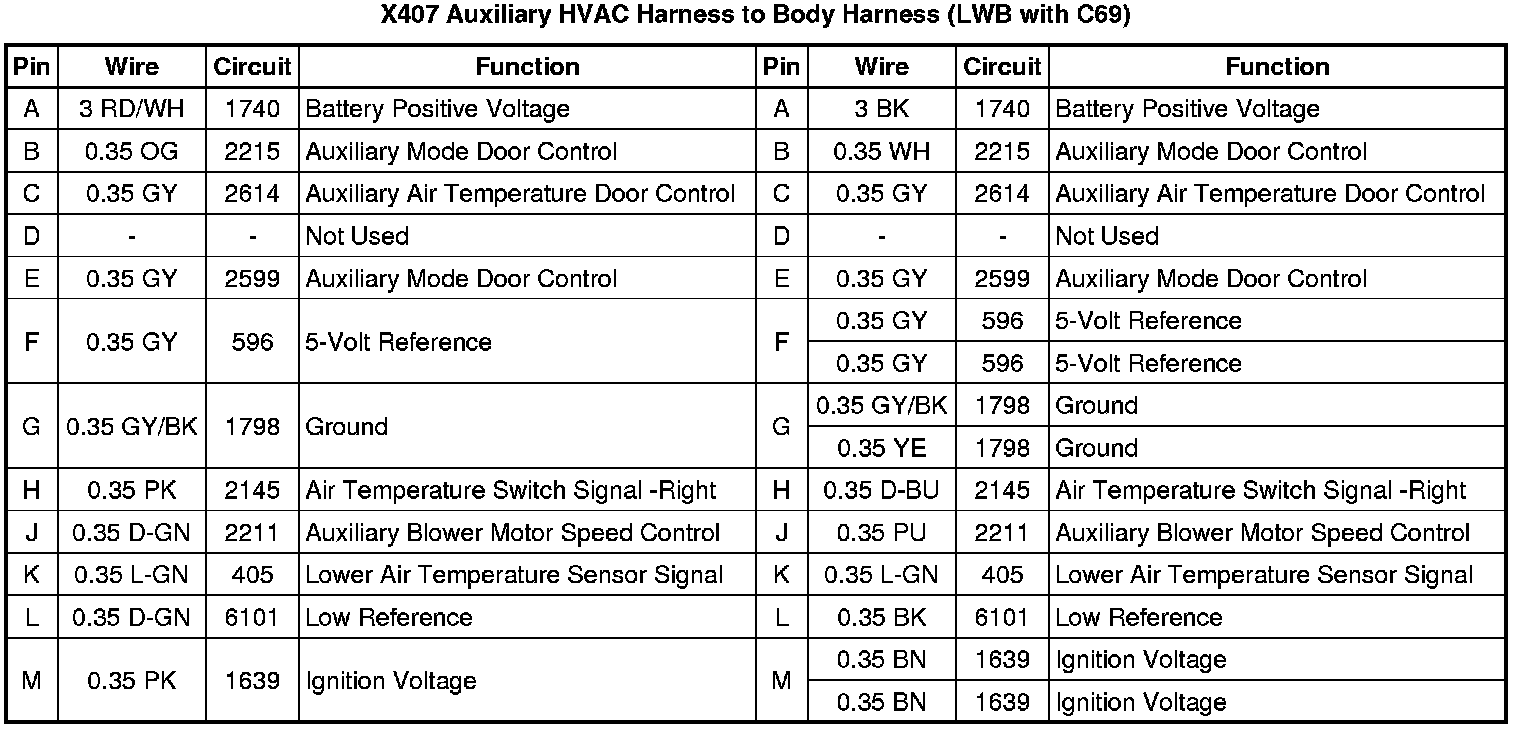

X407 Auxiliary HVAC Harness to Body Harness (LWB with C69)

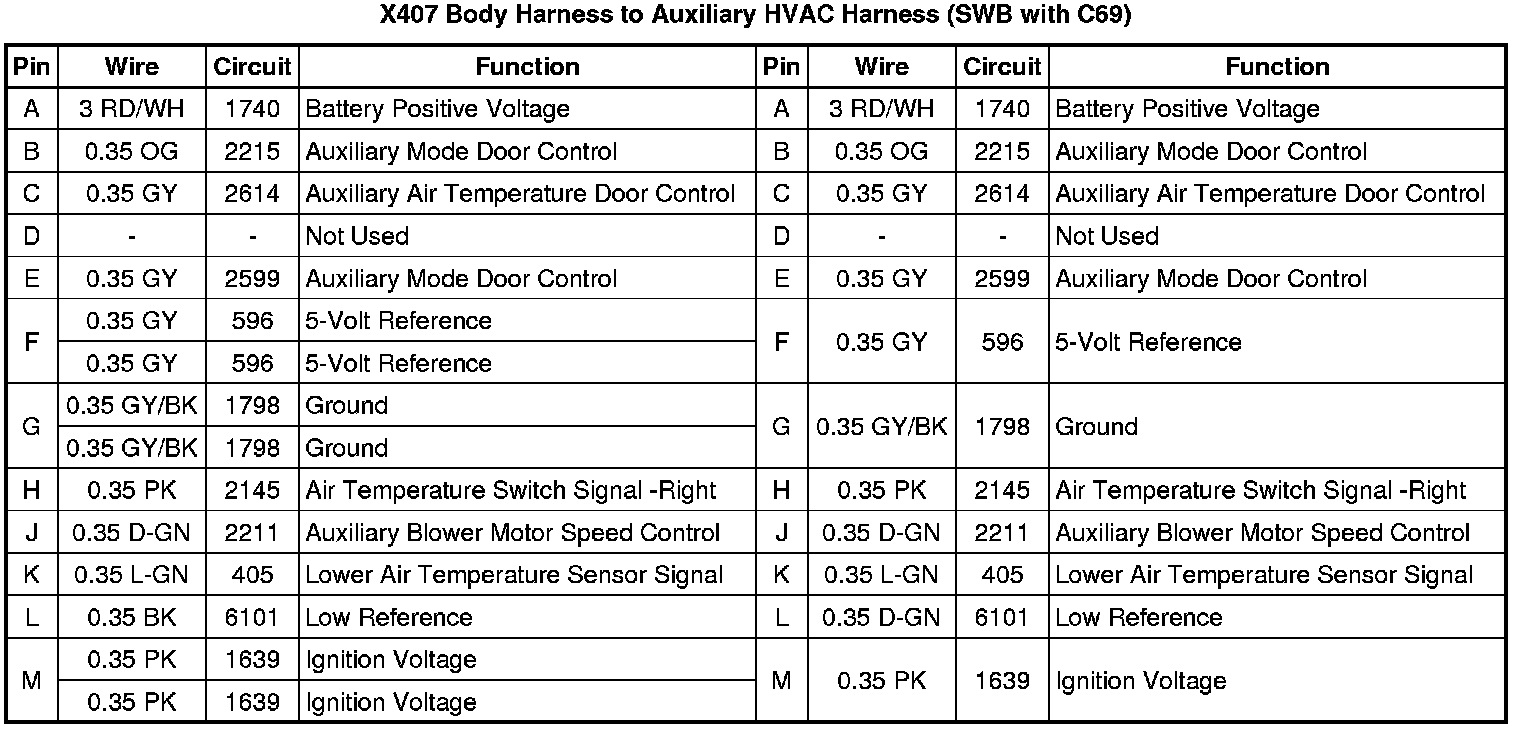

X407 Body Harness to Auxiliary HVAC Harness (SWB with C69)
