X201
X201

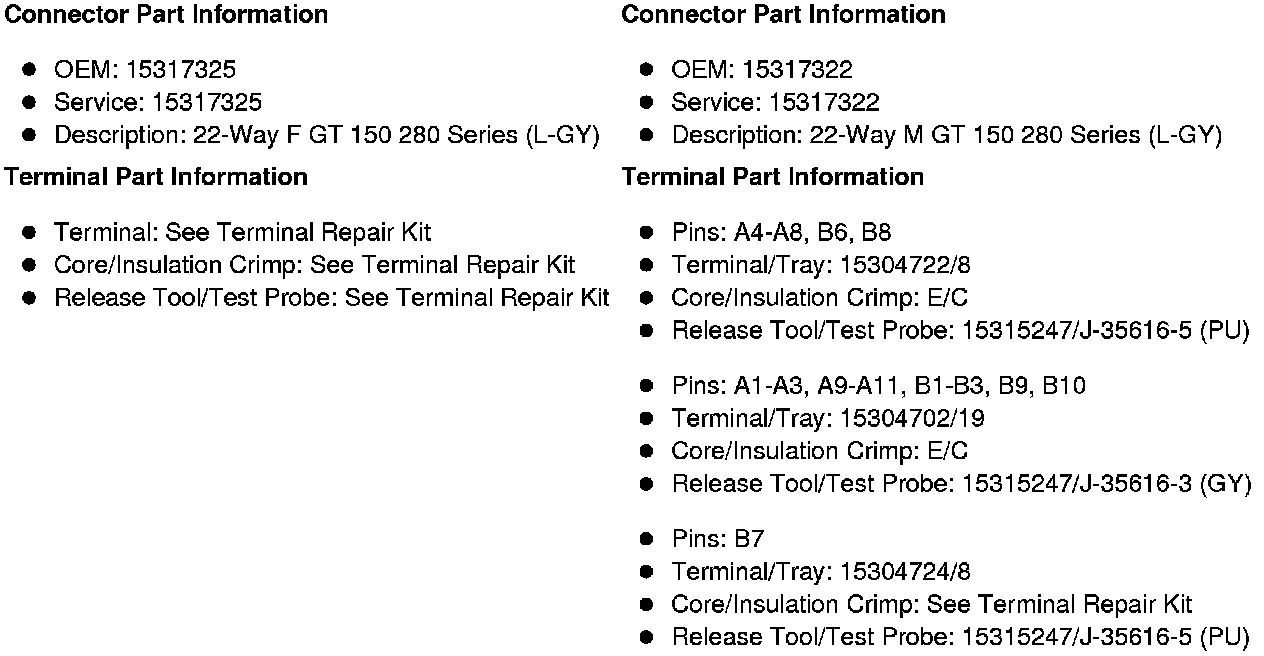

Inline Harness Connector End Views

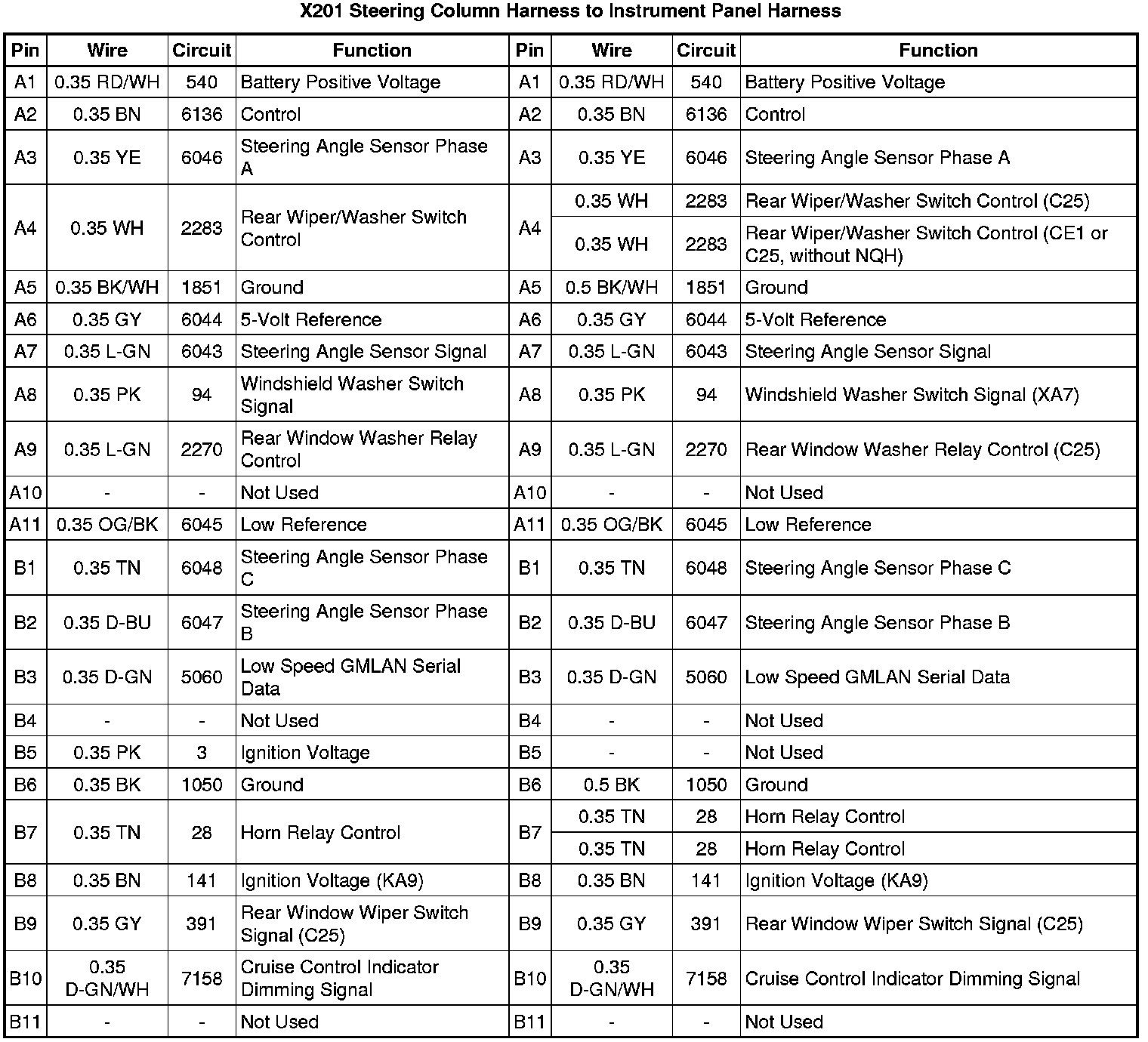

X201 Steering Column Harness to Instrument Panel Harness
