X106
X106
Inline Harness Connector End Views

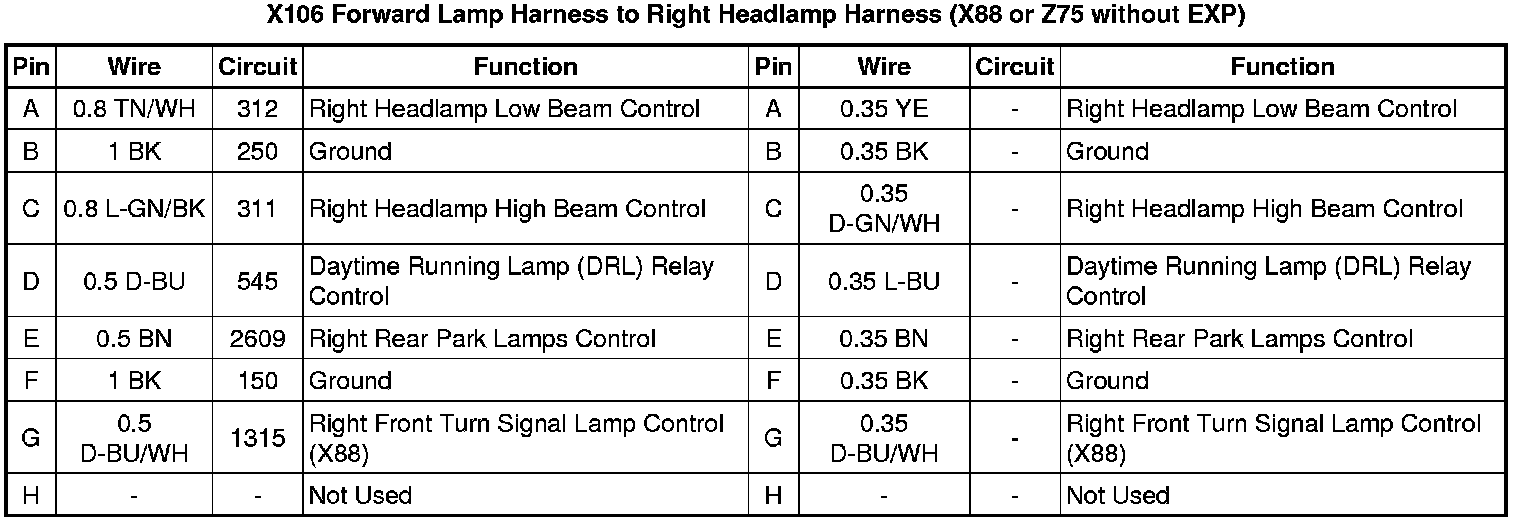

X106 Forward Lamp Harness to Right Headlamp Harness (X88 or Z75 without EXP)
