X104

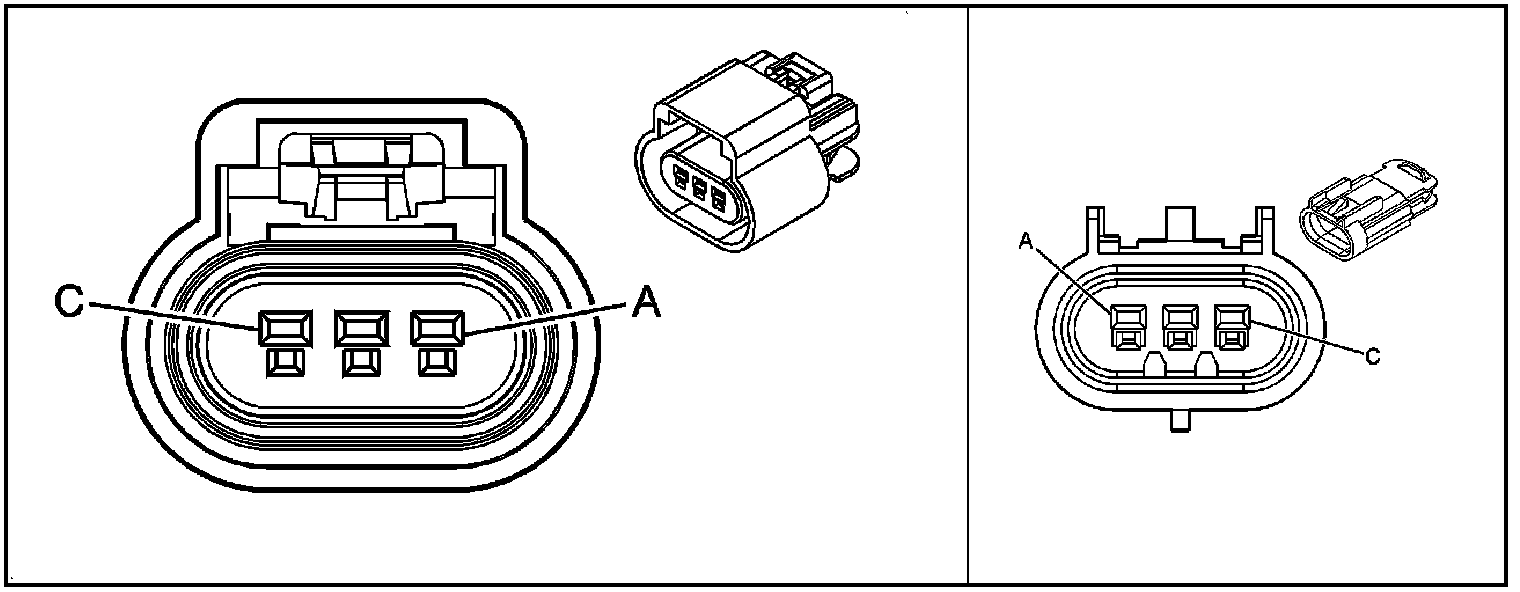

Inline Harness Connector End Views

X104 Right Front Fog Lamp Harness to Forward Lamp Harness (Z75 with T96)

X104 Forward Lamp Harness to Right Front Lamp Harness (Z88)
