Camshaft Position Sensor




Component Connector End Views

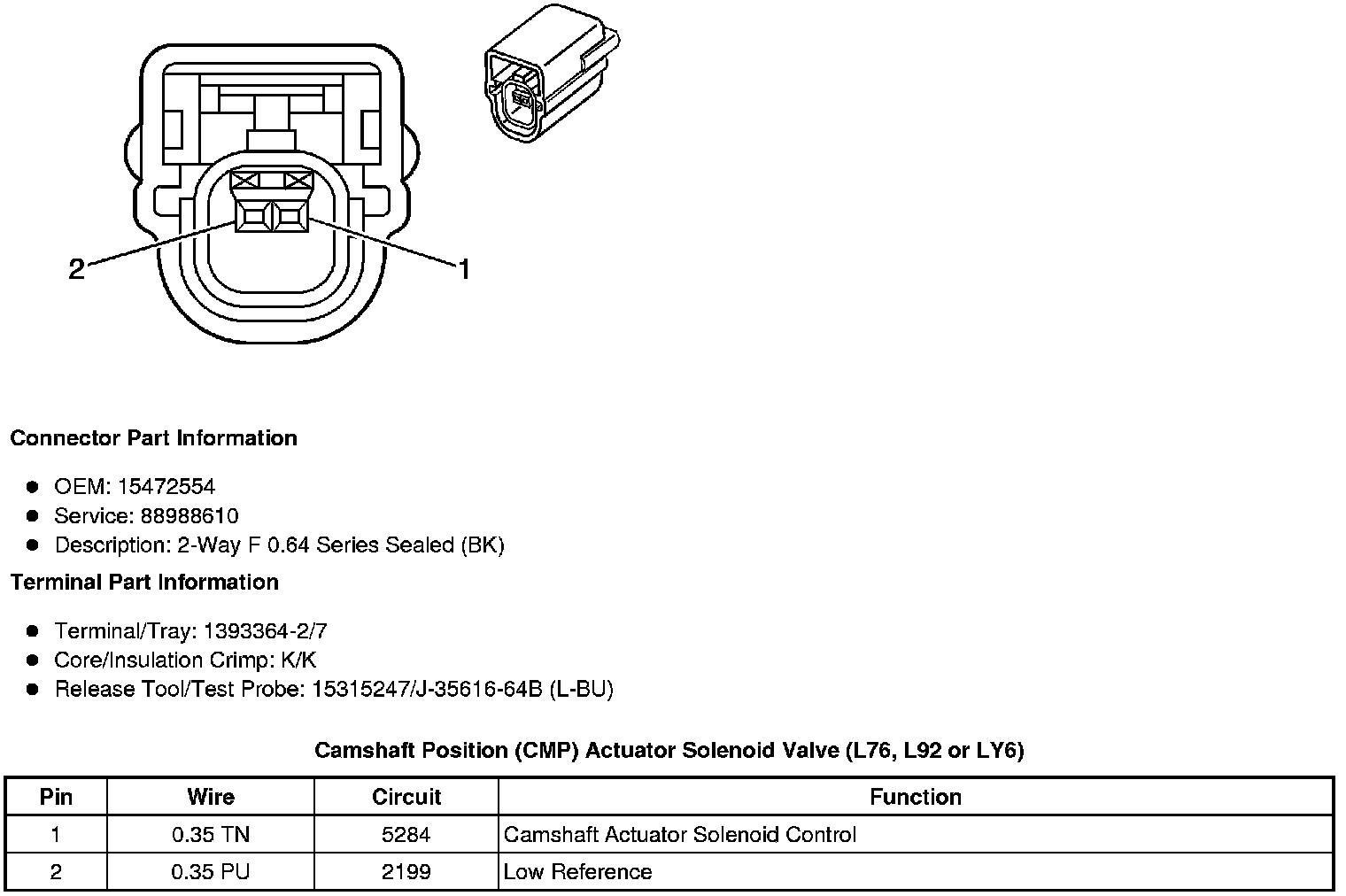

Camshaft Position (CMP) Actuator Solenoid Valve (L76, L92 or LY6)

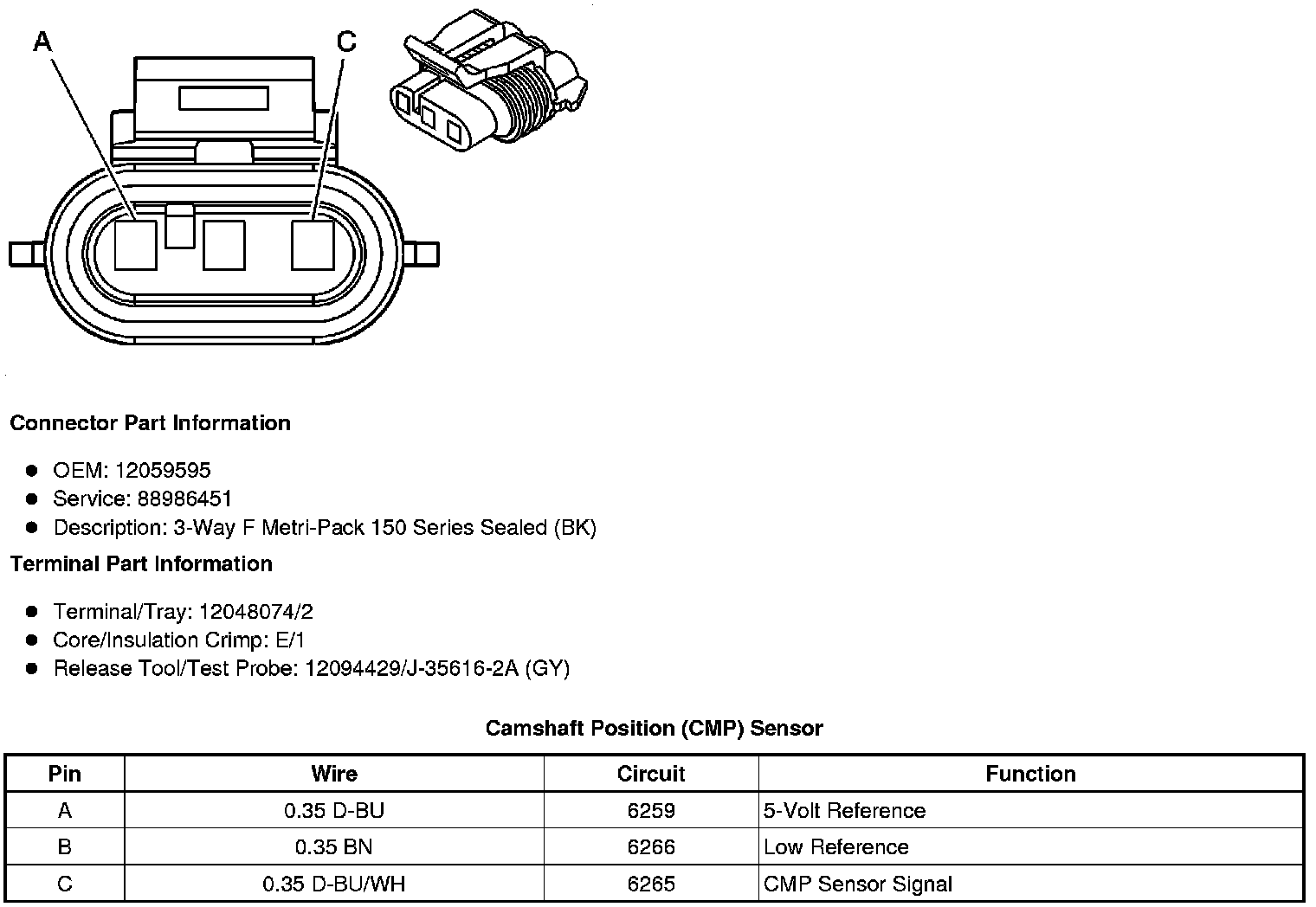

Camshaft Position (CMP) Sensor
