System Diagram




Component Connector End Views

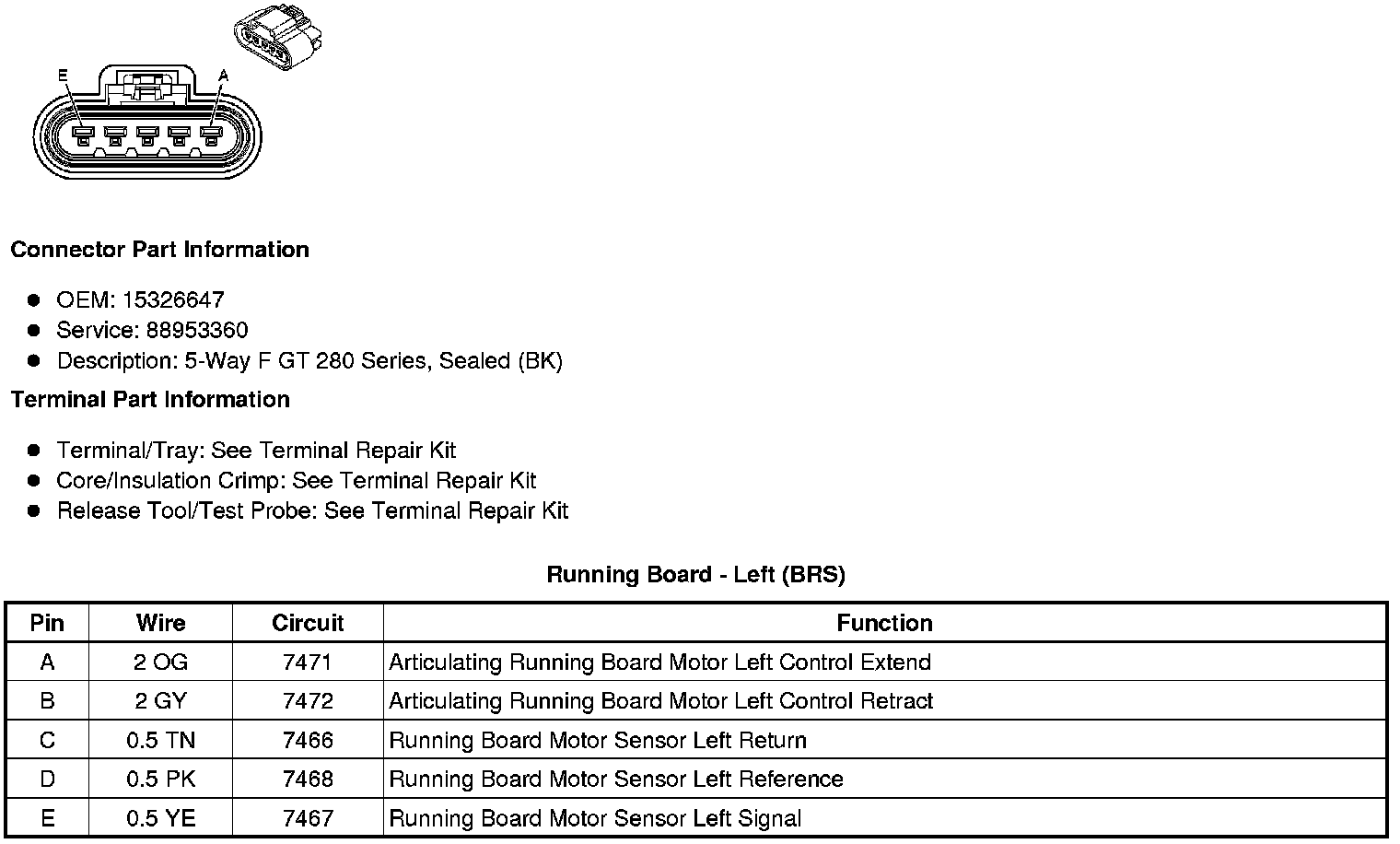

Running Board - Left (BRS)

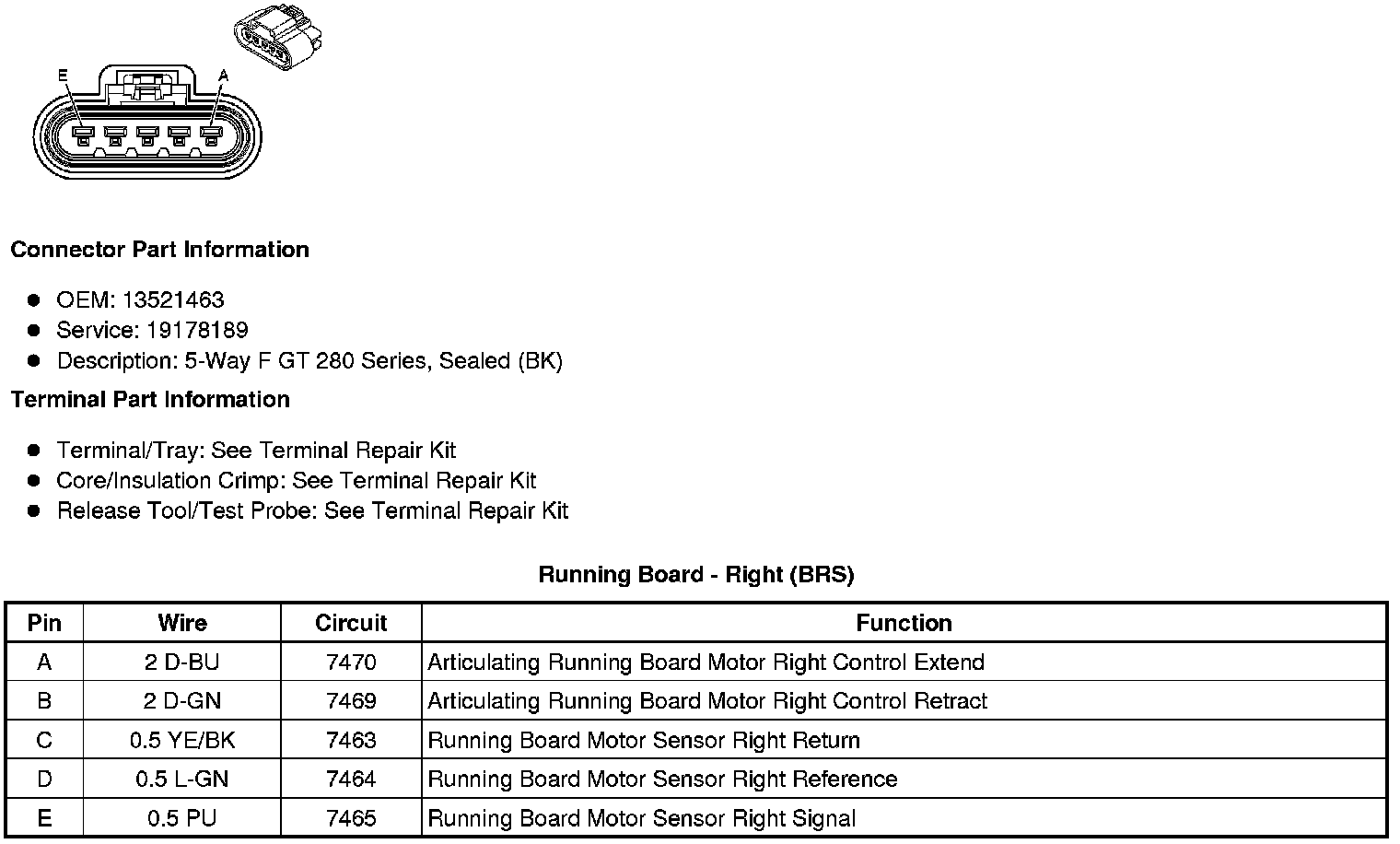

Running Board - Right (BRS)
