Auxiliary Step / Running Board
>>
Auxiliary Step / Running Board Module
Auxiliary Step / Running Board Module
Component Connector End Views

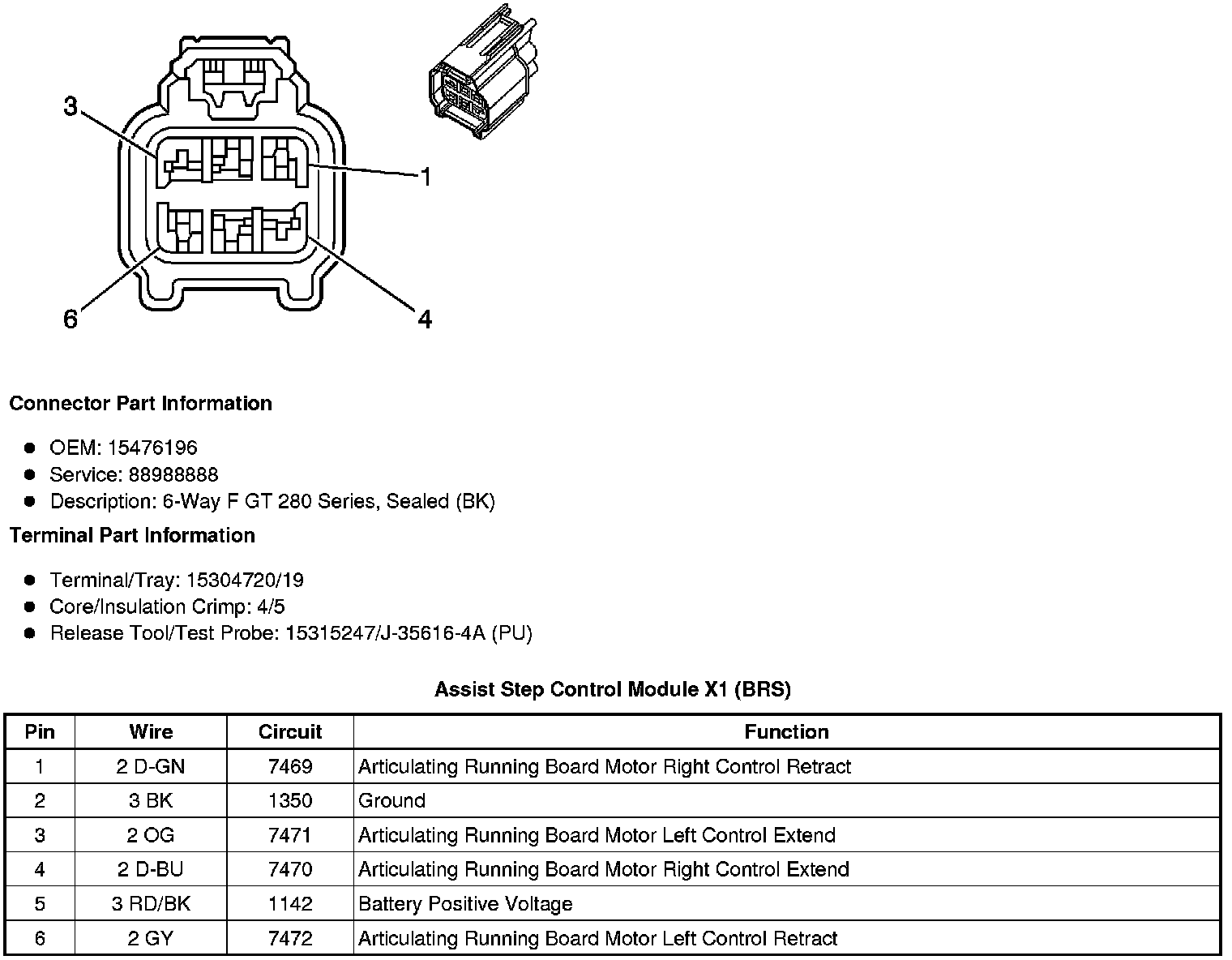

Assist Step Control Module X1 (BRS)

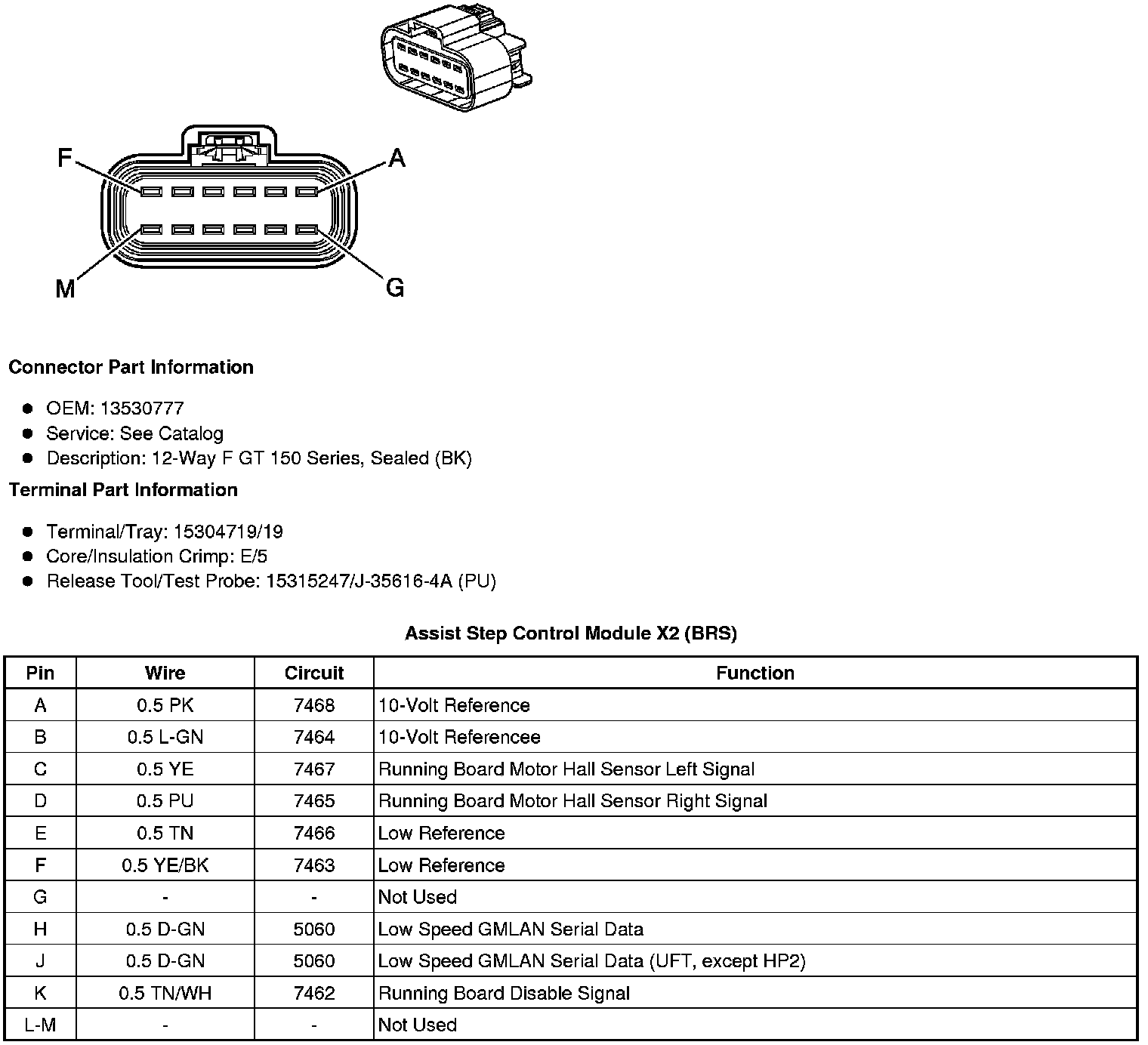

Assist Step Control Module X2 (BRS)
