Escalade AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

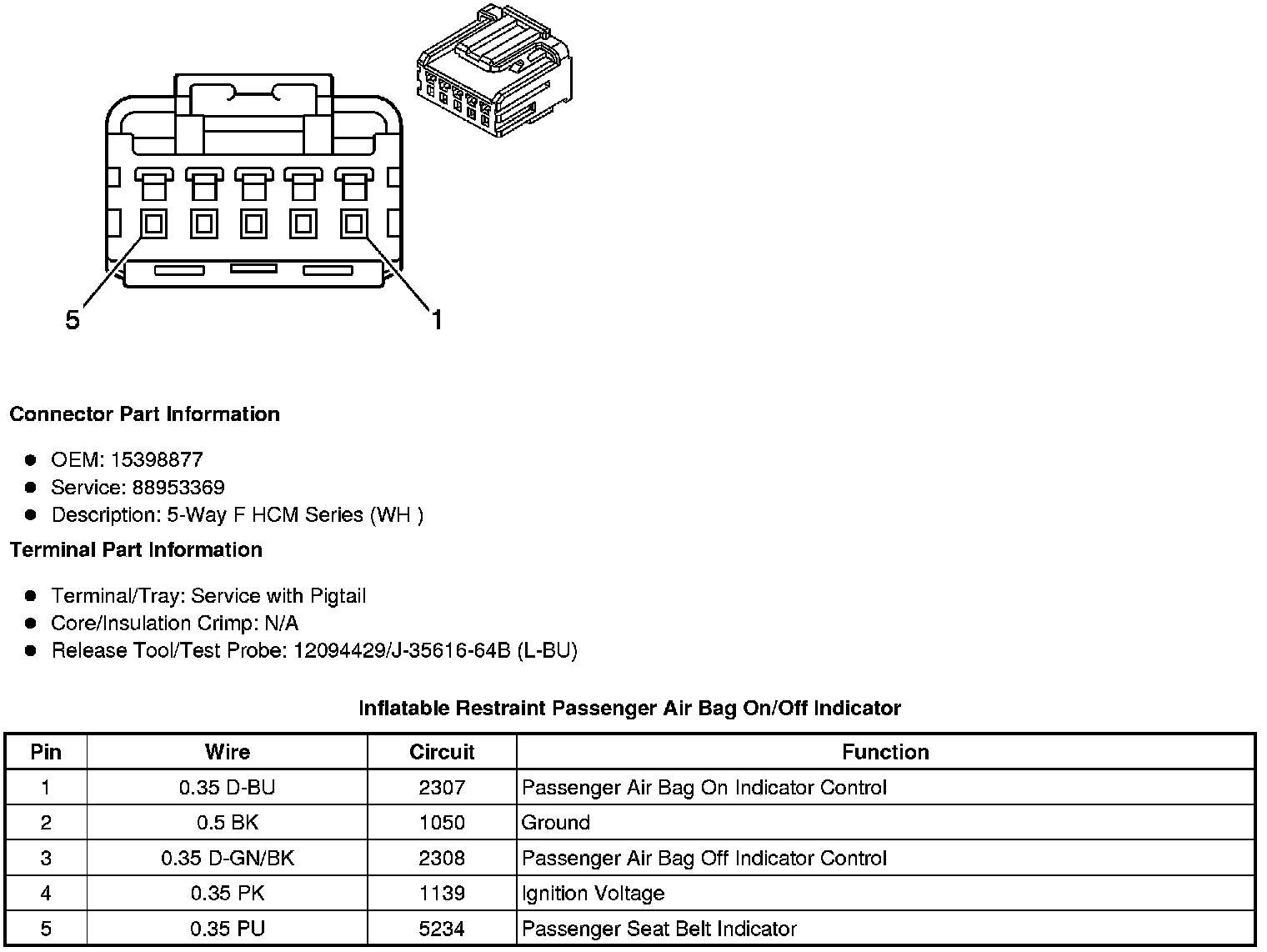

Component Connector End Views
Inflatable Restraint Passenger Air Bag On/Off Indicator
