Driver Seat Schematics




Driver Seat Schematics

6-Way Power





Module Power, Ground, Serial Data, and Memory Switch





Seat Adjuster Switches - AN3

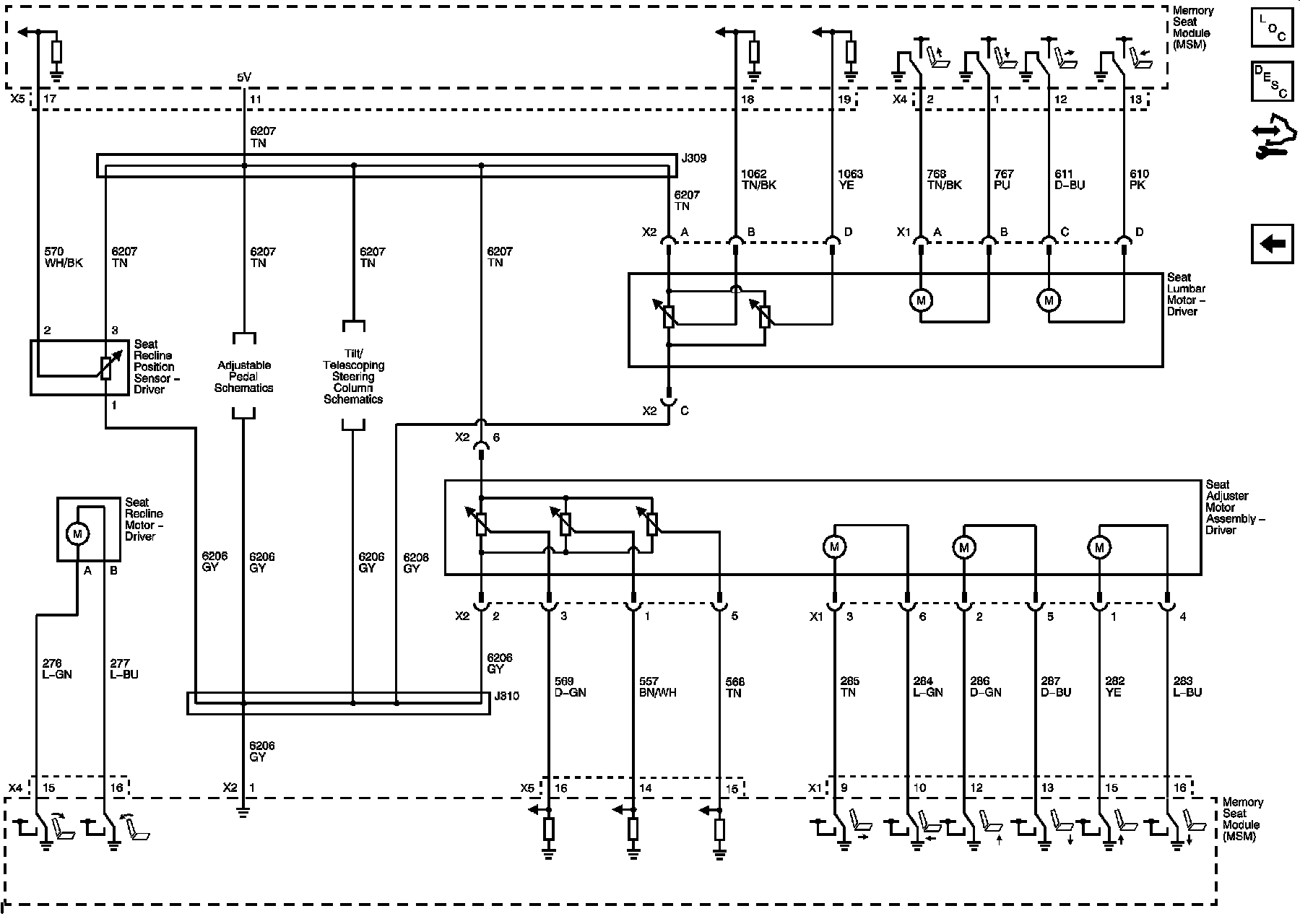

Motors and Position Sensors - AN3





6-Way Power - HP2
