Sunroof / Moonroof: Service and Repair

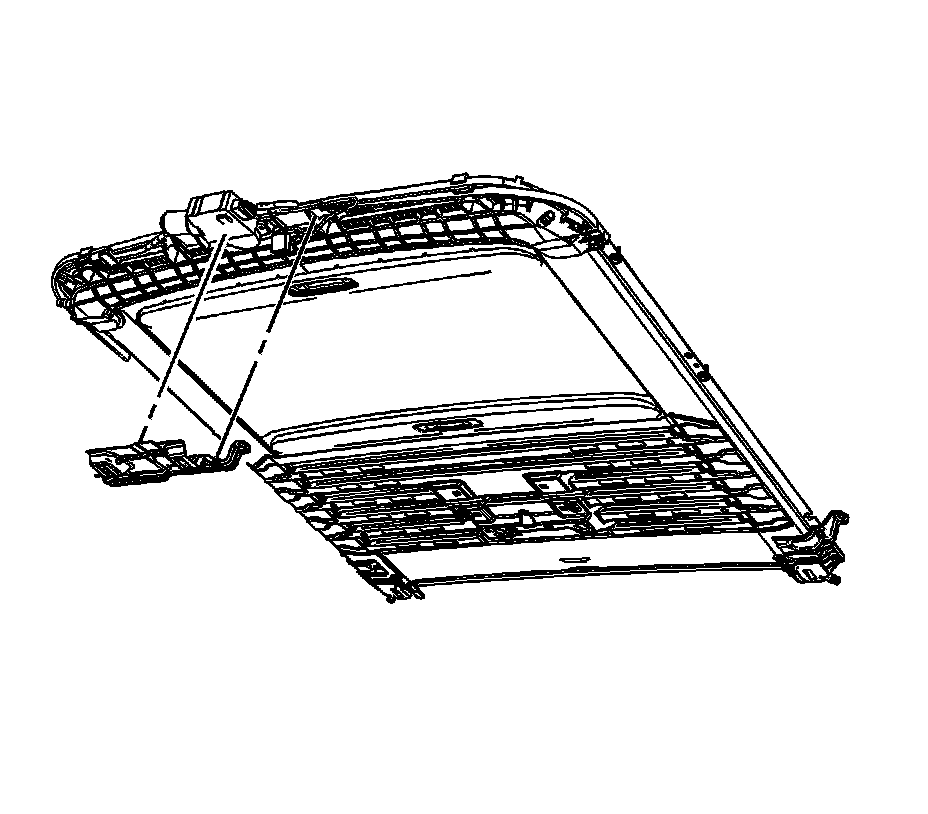

Sunroof Module Bracket Replacement

Removal Procedure




1. Remove the overhead console. Refer to Roof Console Replacement (Service and Repair).
2. Remove one left side screw from the bracket.
3. Carefully pulling down on the front edge of the headliner, swing the bracket downward to release the right side from the module.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the screw to the bracket.

Tighten the screw to 2 Nm(18 lb in)

2. Install the overhead console. Refer to Roof Console Replacement (Service and Repair).
