Escalade AWD V8-6.2L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Connector Views
Connector Views
Component Connector End Views

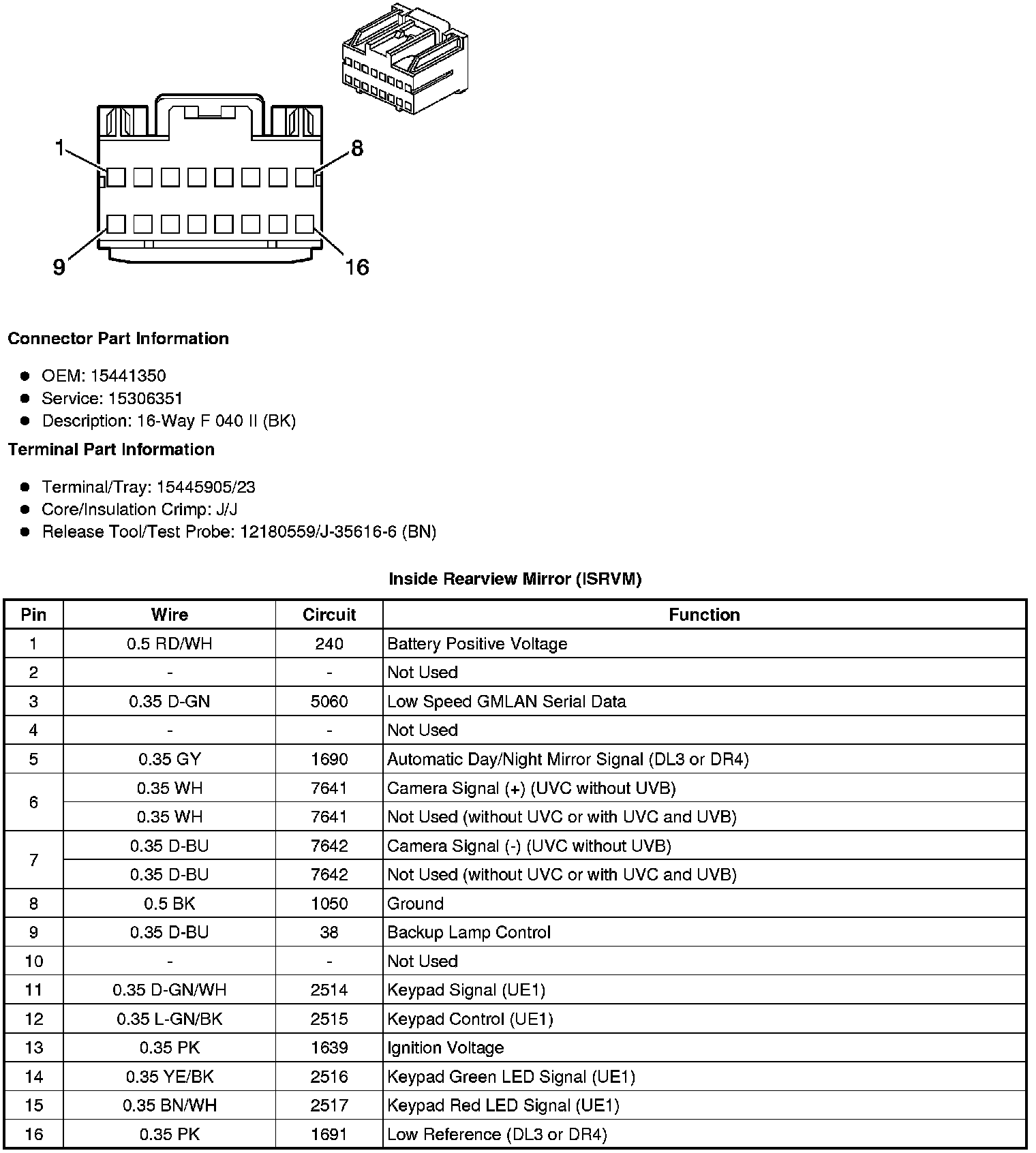

Inside Rearview Mirror (ISRVM)
