Control Module U Code List




Control Module U Code List

This list includes all Data Communications related U-code DTCs in alphanumeric order with descriptors for all modules. Not all DTCs listed will be applicable to all vehicles.

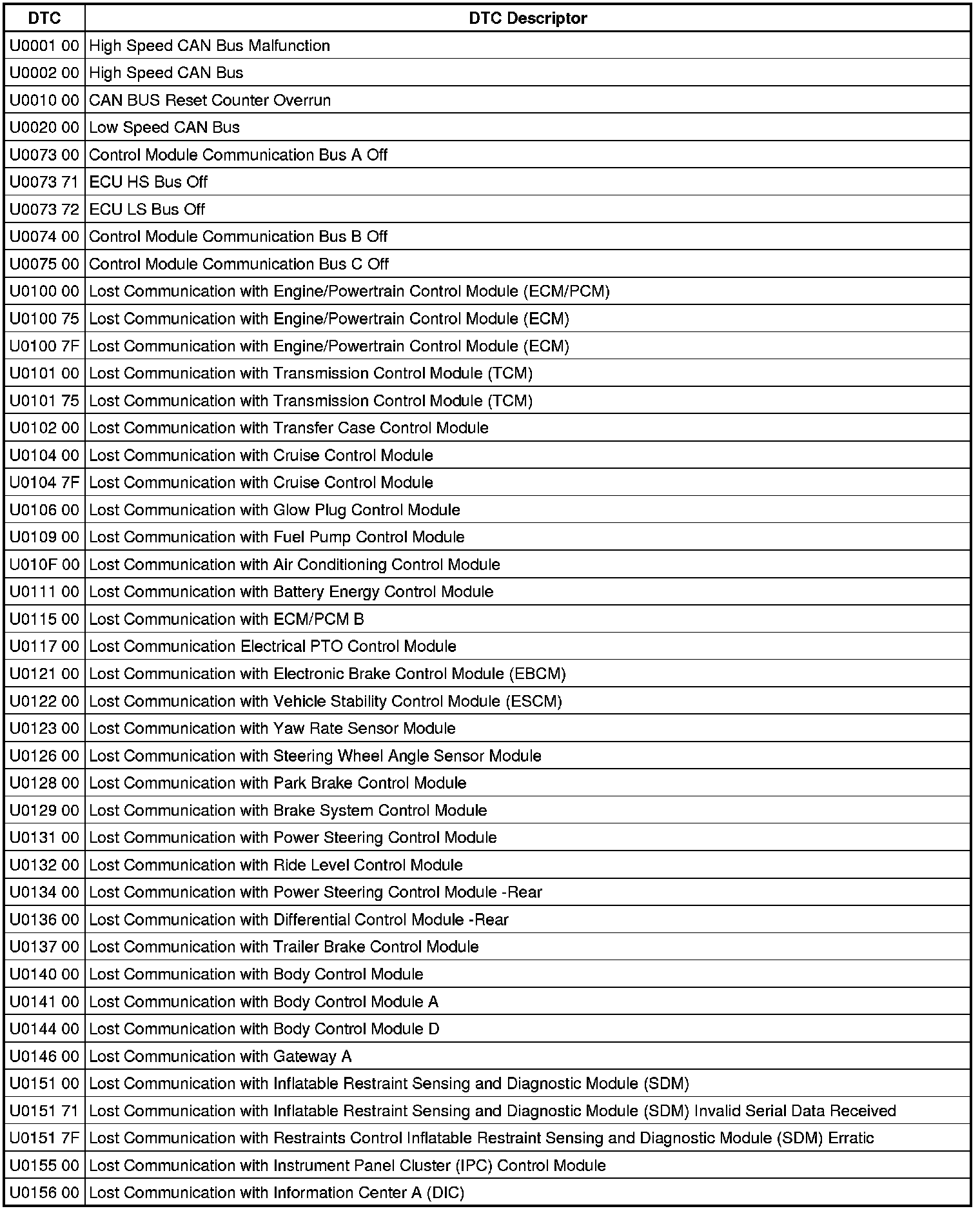

U0001 00 - U0156 00:

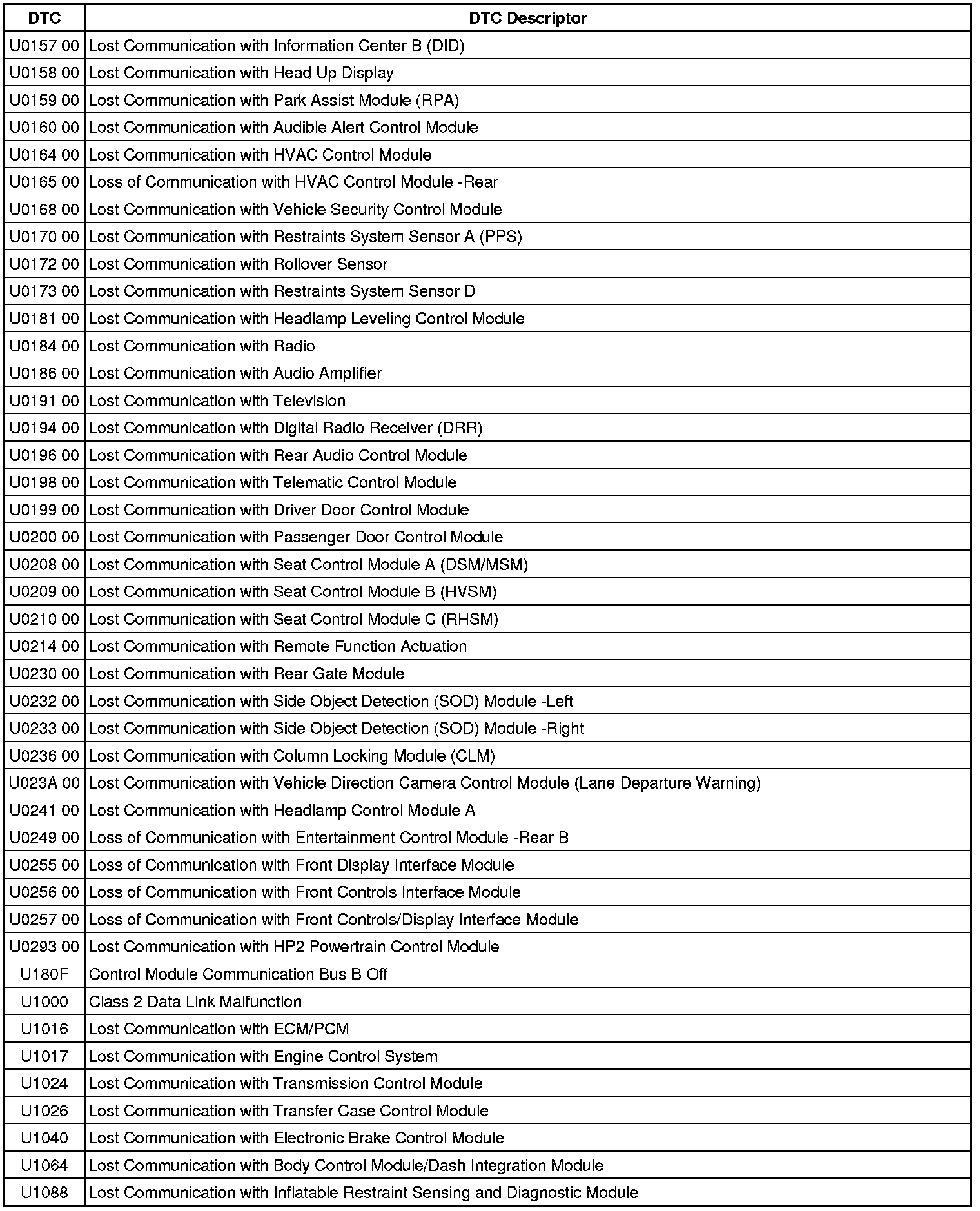

U0157 00 - U1088:

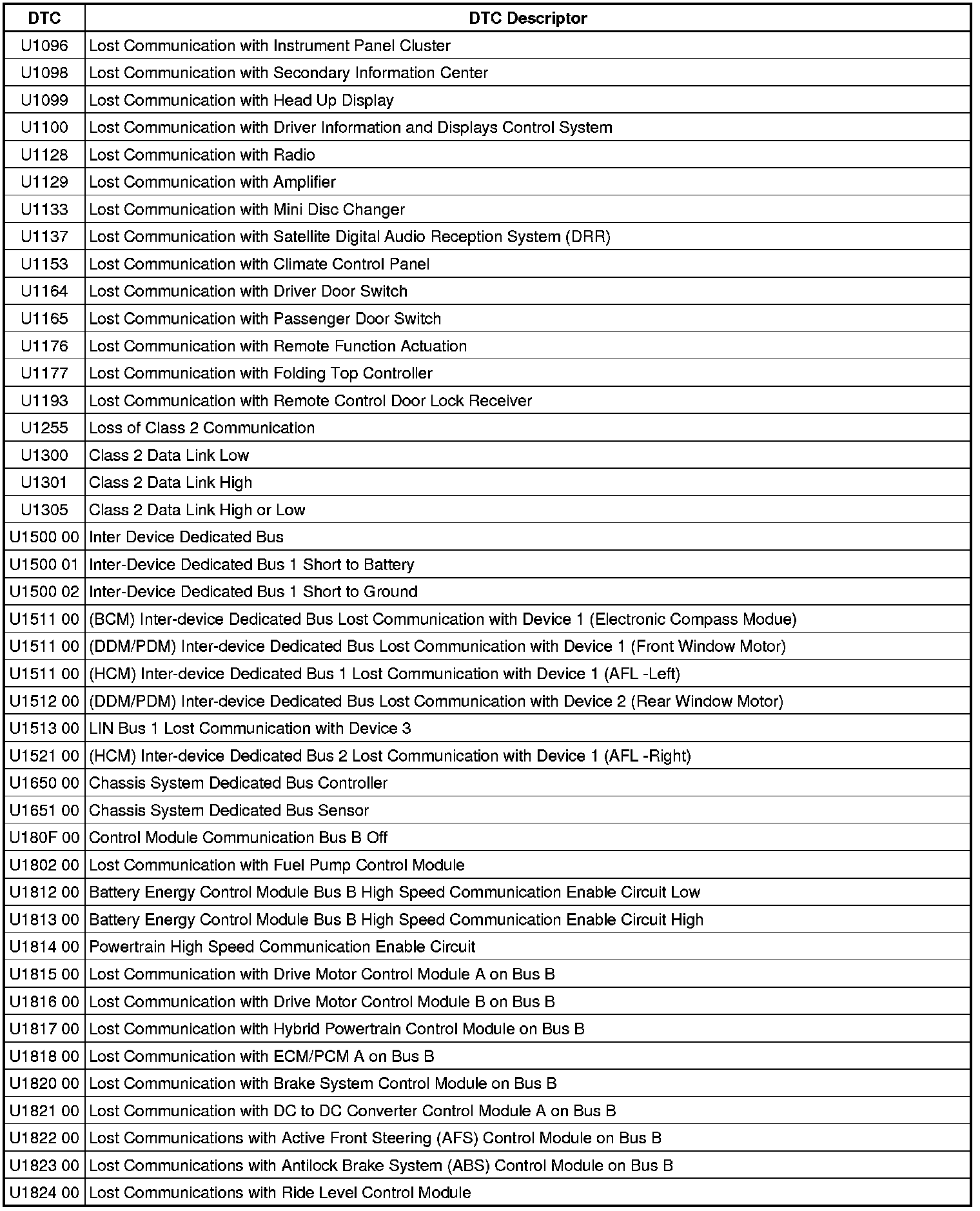

U1096 - U1824 00:

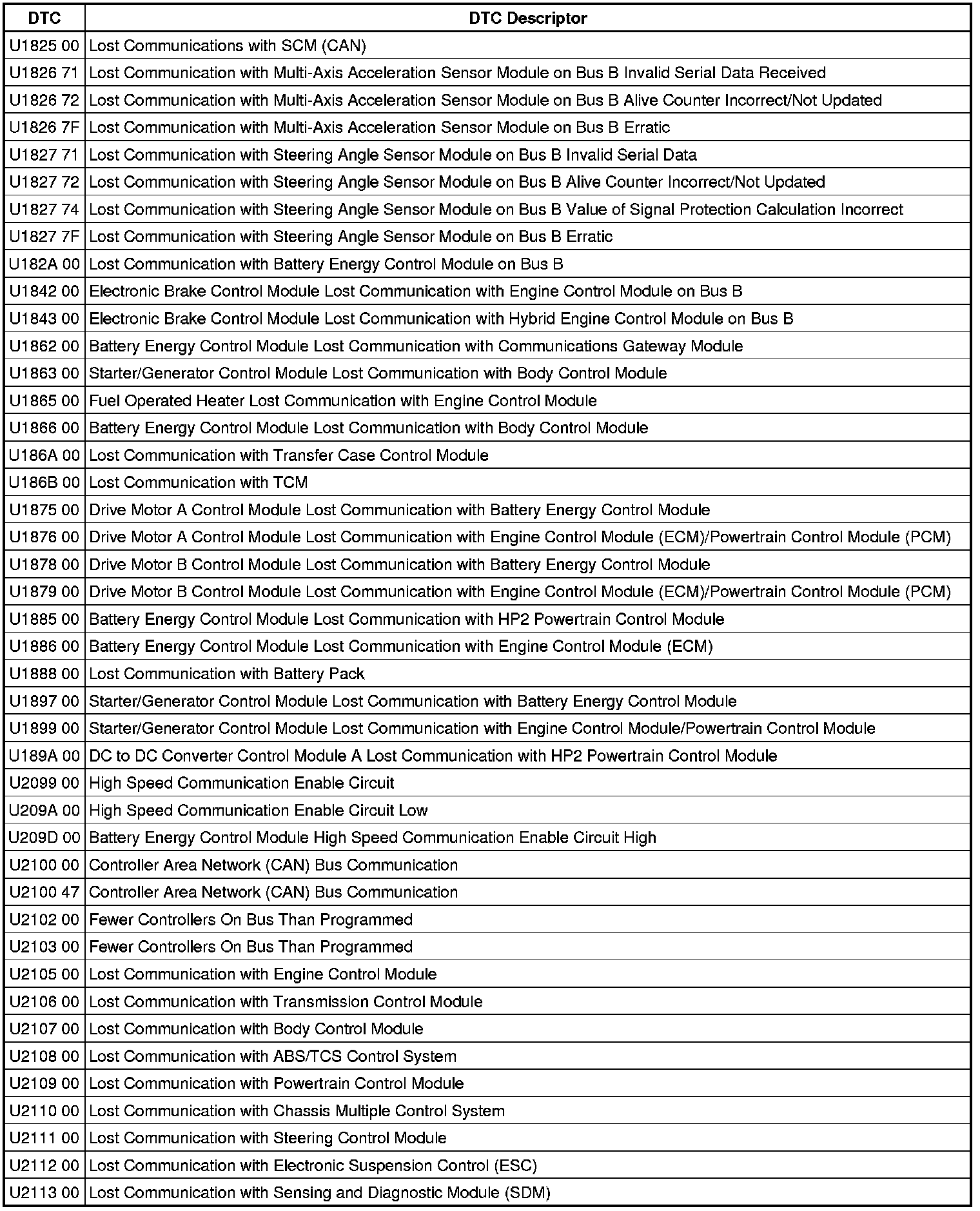

U1825 00 - U2113 00:

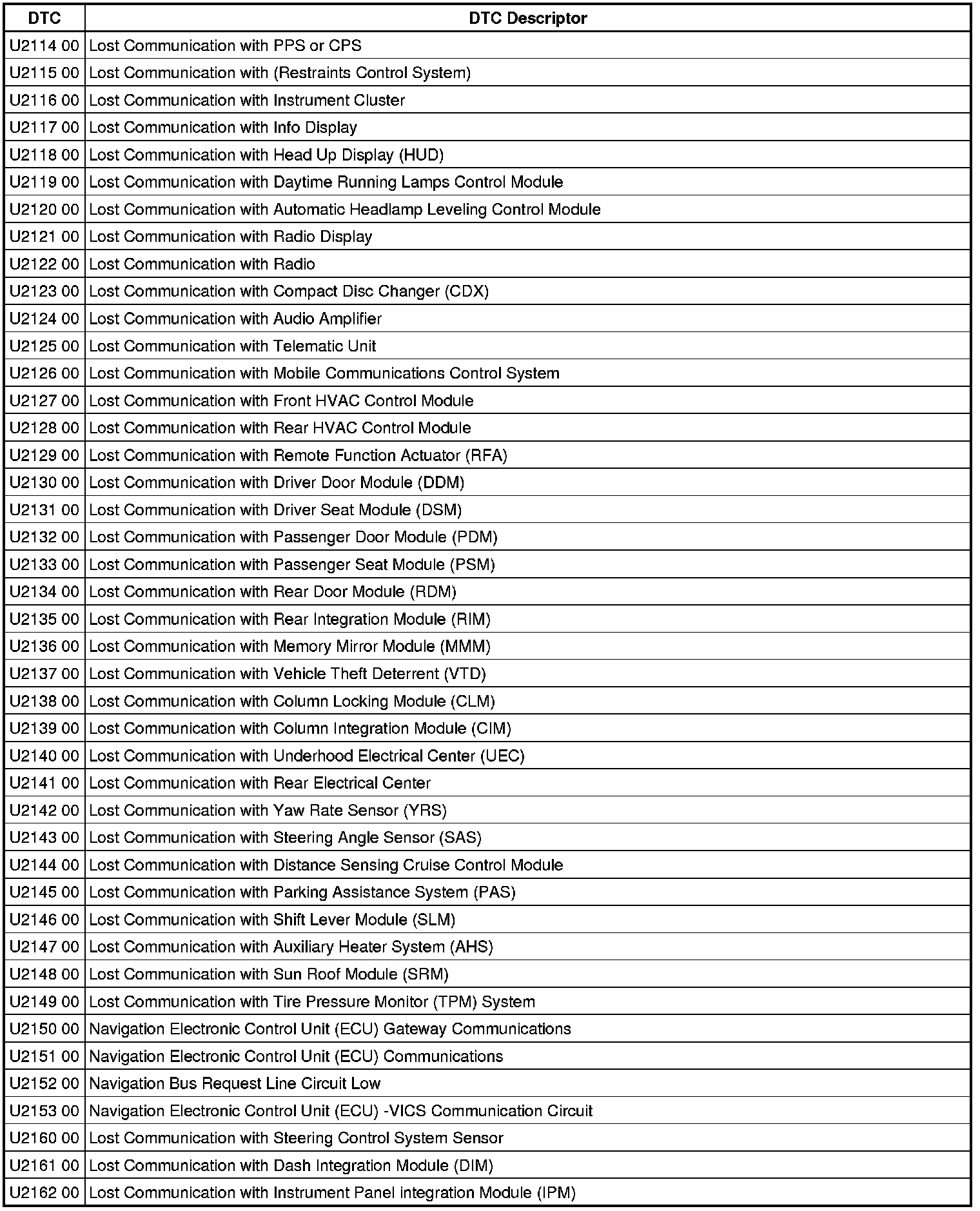

U2114 00 - U2162 00:

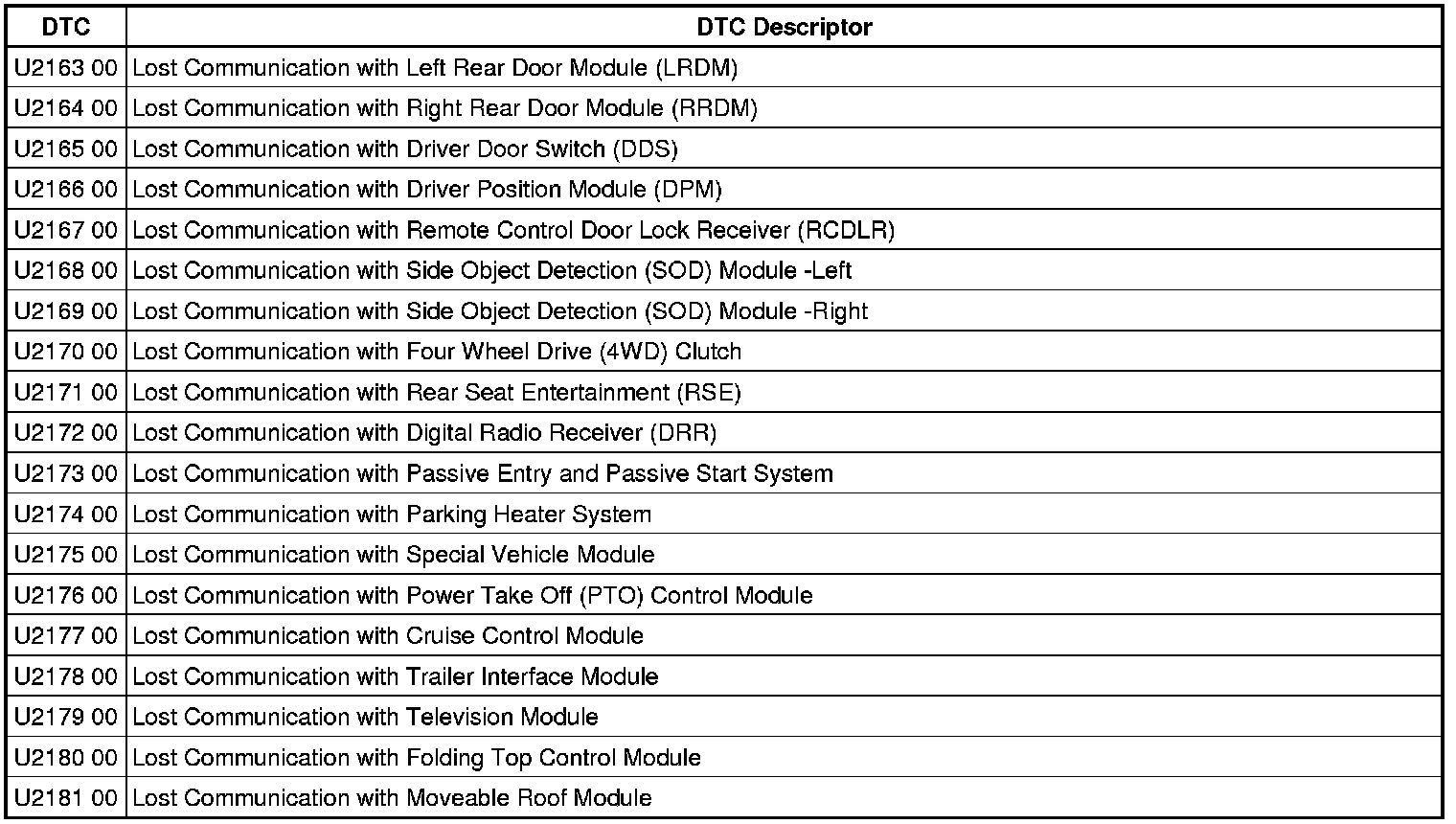

U2163 00 - U2181 00:
