Battery Tray: Service and Repair

Battery Tray Replacement

Removal Procedure





1. Remove the battery. Refer to Battery Replacement (Battery Replacement) .

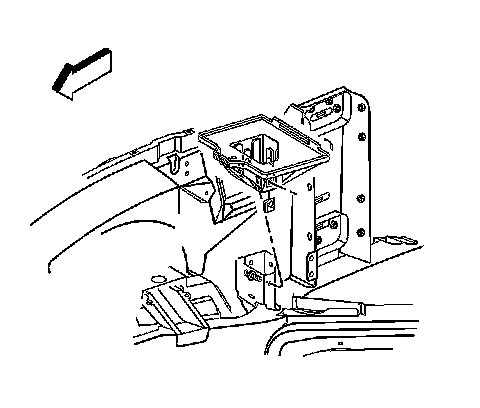

2. Remove the battery tray bolts.
3. Remove the battery tray.



Installation Procedure





1. Install the battery tray.
Notice: Refer to Fastener Notice .


2. Install the battery tray bolts.

Tighten the battery tray bolts to 12 N.m (106 lb in).

3. Install the battery. Refer to Battery Replacement (Battery Replacement) .
