Seat Occupant Sensor: Diagrams



Component Connector End Views

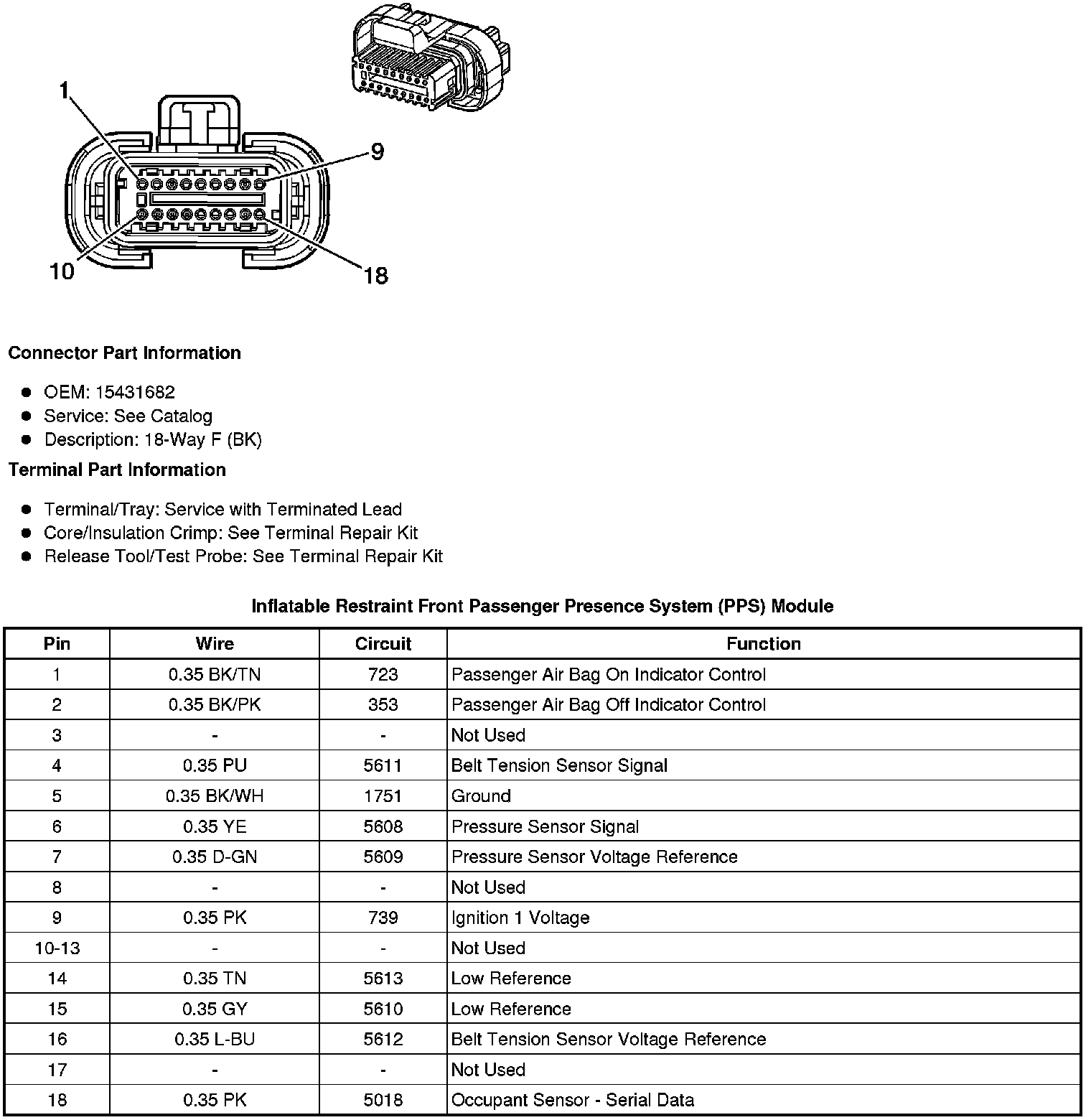

Inflatable Restraint Front Passenger Presence System (PPS) Module






Inflatable Restraint Front Passenger Presence System (PPS) Sensor
