Ignition Coil: Diagrams



Component Connector End Views


Ignition Coil - 1






Ignition Coil - 2






Ignition Coil - 3






Ignition Coil - 4






Ignition Coil - 5

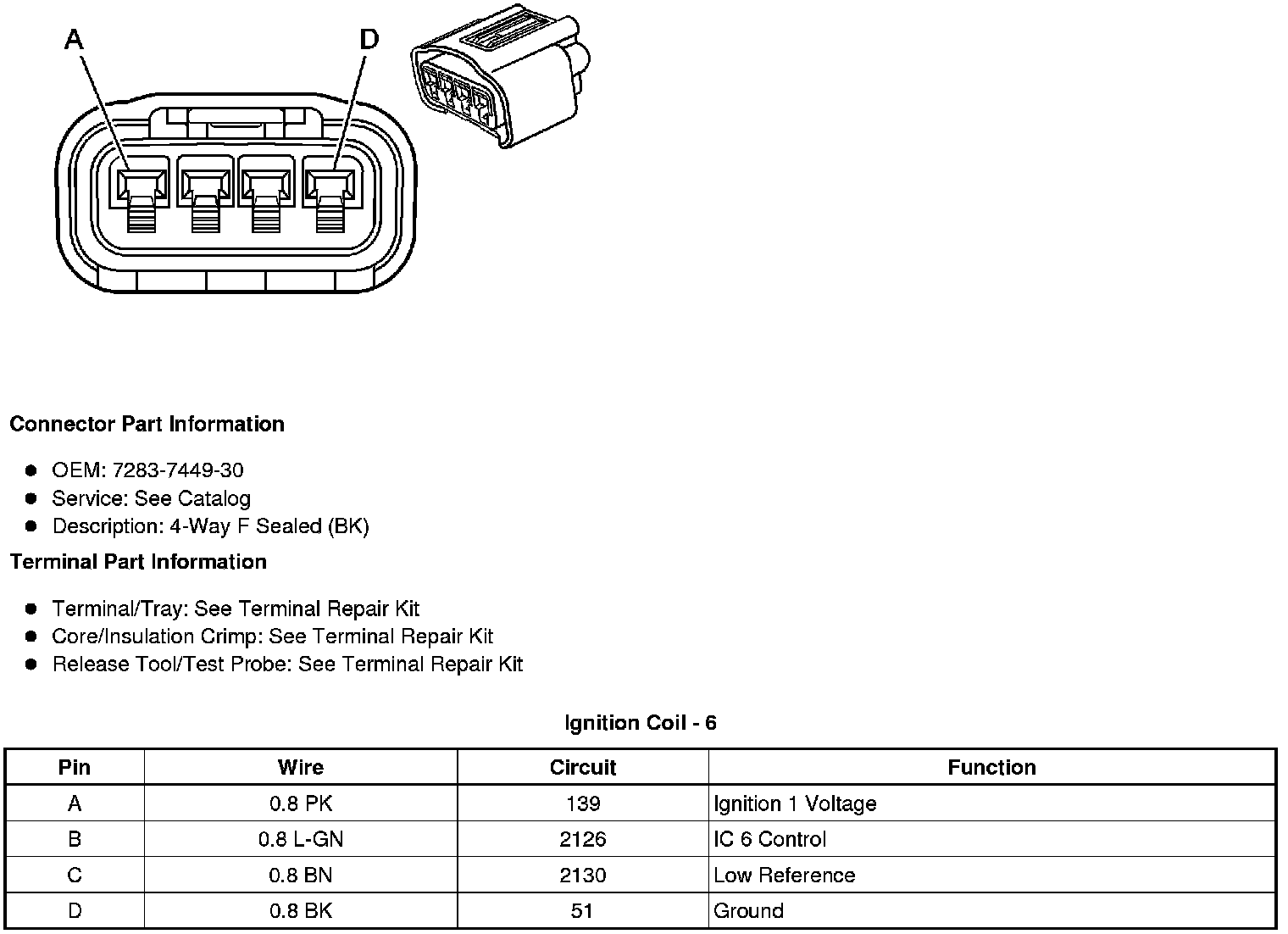

Ignition Coil - 6






Ignition Coil - 7






Ignition Coil - 8
