Canister Purge Solenoid: Locations

Harness Routing Views

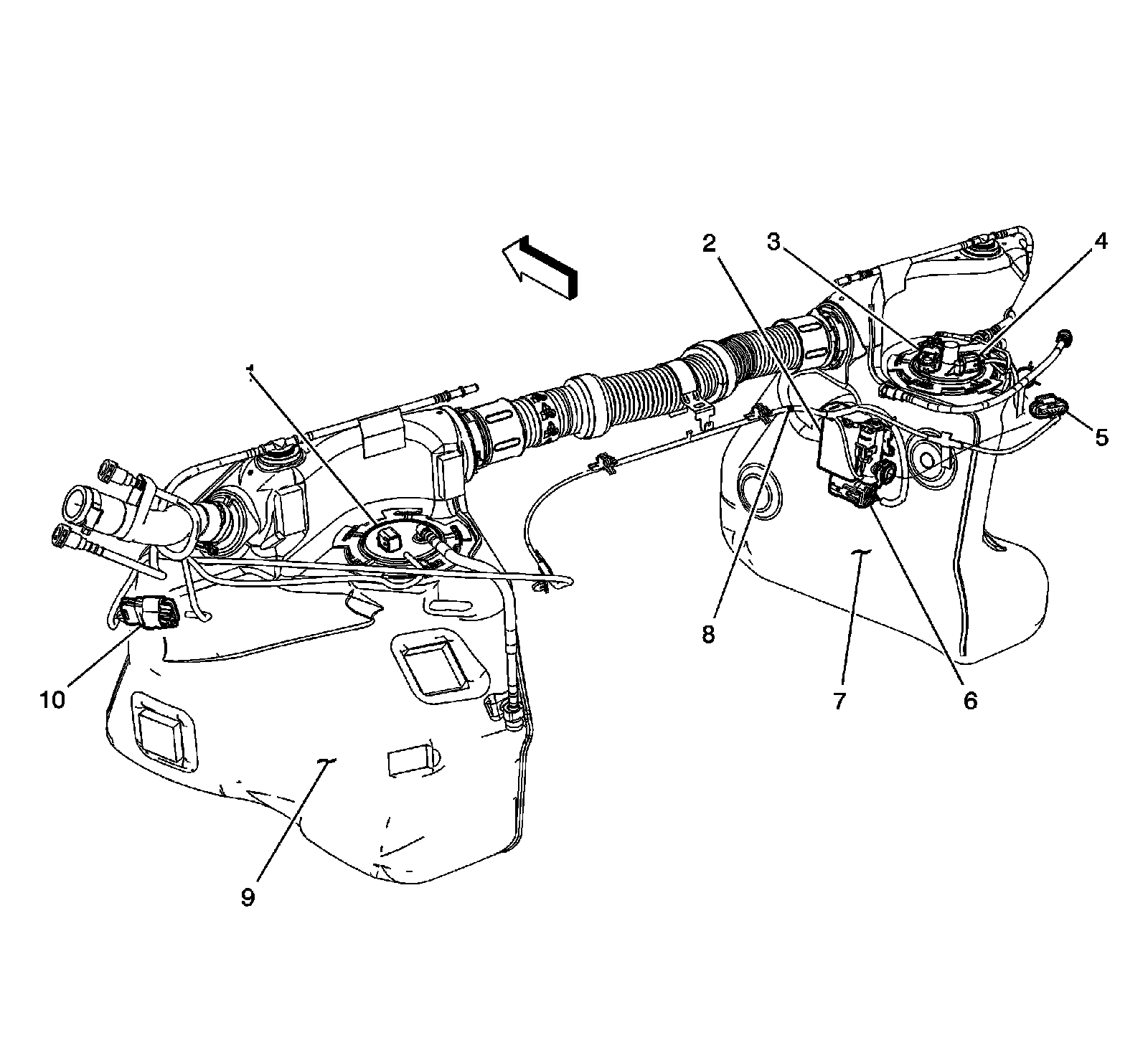

Fuel Tank




1 - Fuel Pump and Sender Assembly
2 - Evaporative Emission (EVAP) Canister Vent Solenoid
3 - Fuel Tank Pressure (FTP) Sensor
4 - Fuel Level Sensor - Right
5 - X460
6 - X420
7 - Fuel Tank-Right
8 - J460
9 - Fuel Tank-Left
10 - X459



Powertrain Component Views




1 - Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust
2 - Camshaft Position (CMP) Sensor Bank 1 Exhaust
3 - Camshaft Position (CMP) Sensor Bank 1 Intake
4 - Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake
5 - Manifold Absolute Pressure (MAP) Sensor
6 - X140
7 - Ignition Coil 1
8 - Fuel Injector 1
9 - Ignition Coil 3
10 - Fuel Injector 3
11 - Ignition Coil 5
12 - Fuel Injector 5
13 - Ignition Coil 7
14 - Fuel Injector 7
15 - Fuel Injector 6
16 - Starter
17 - X148
18 - Fuel Injector 8
19 - X139
20 - Ignition Coil 8
21 - Ignition Coil 6
22 - Ignition Coil 4
23 - Fuel Injector 4
24 - Ignition Coil 2
25 - Fuel Injector 2
26 - Camshaft Position (CMP) Actuator Solenoid Bank 2 Exhaust
27 - Camshaft Position (CMP) Sensor Bank 2 Exhaust
28 - Camshaft Position (CMP) Sensor Bank 2 Intake
29 - Camshaft Position (CMP) Actuator Solenoid Bank 2 Intake
30 - Evaporative Emission (EVAP) Canister Purge Valve
31 - Throttle Body Assembly

Rear of Engine (LC3 - 8 Cyl, 4.4L, SC, DOHC)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Throttle Actuator Control (TAC) Module
3 - Starter
4 - X148
5 - JX106
6 - Engine Coolant Temperature (ECT) Sensor
7 - Engine Coolant Heater
8 - X188
