Master Splice List



Master Electrical Component List

X960 - J119:

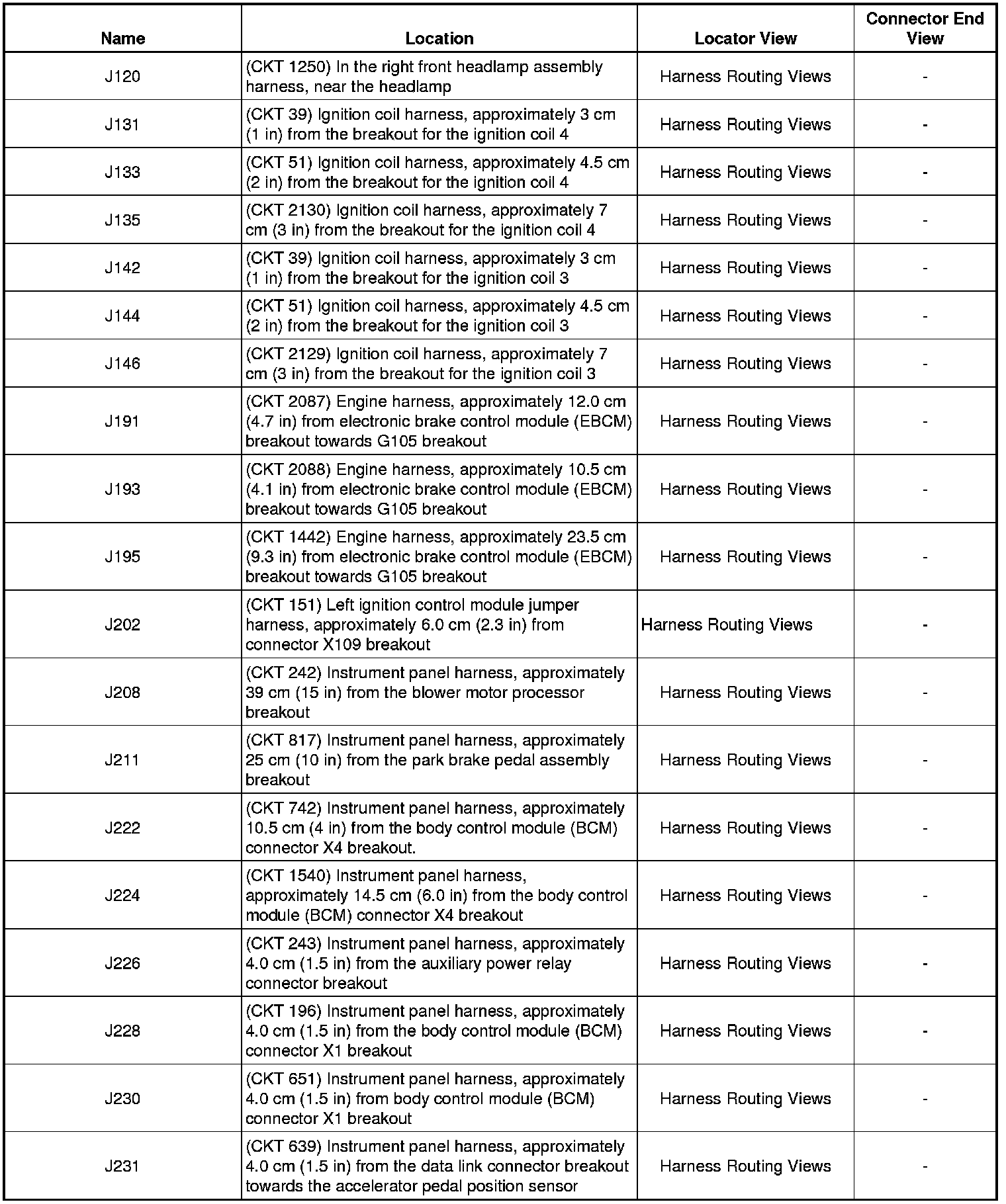

J120 - J231:

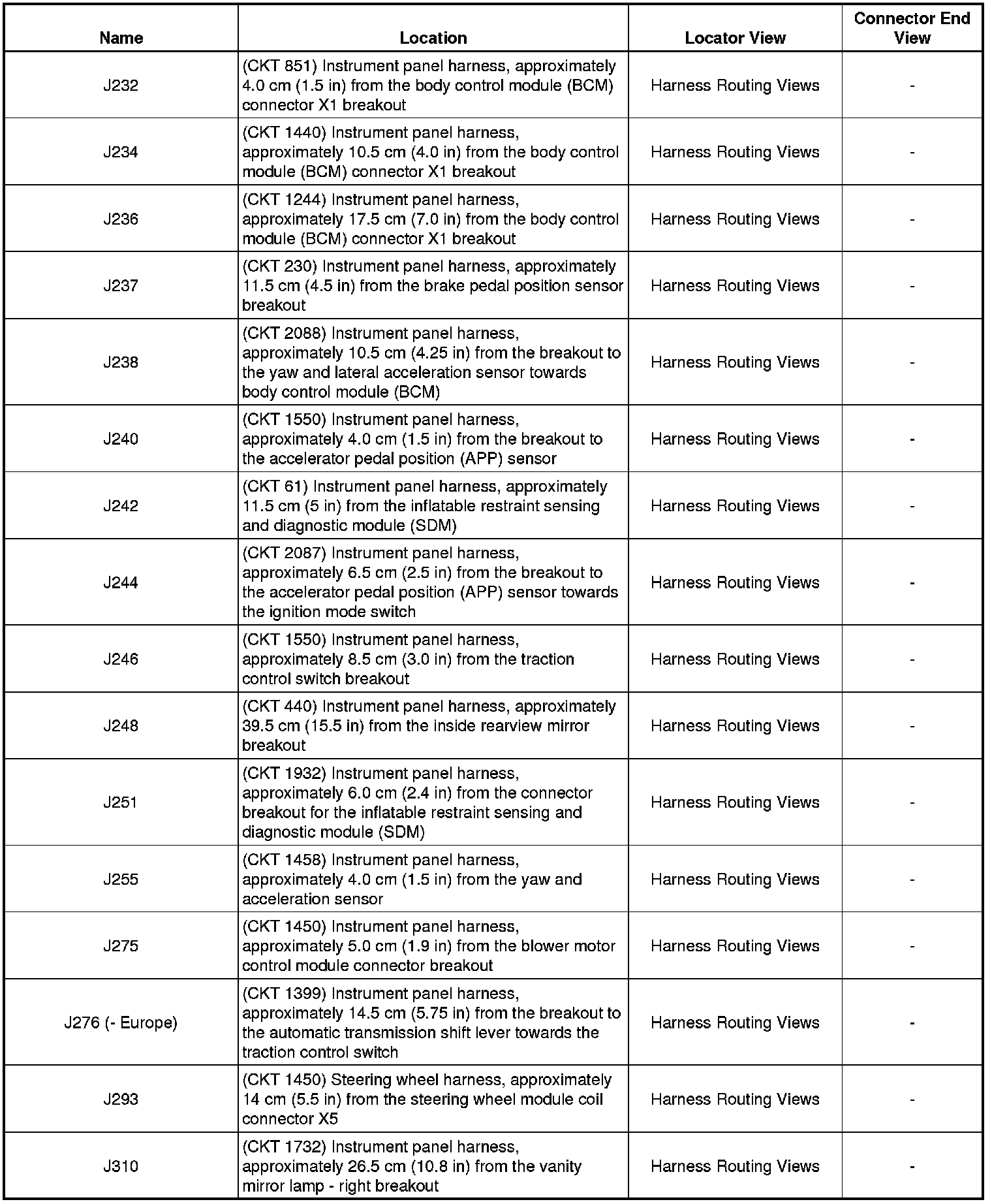

J232 - J310:

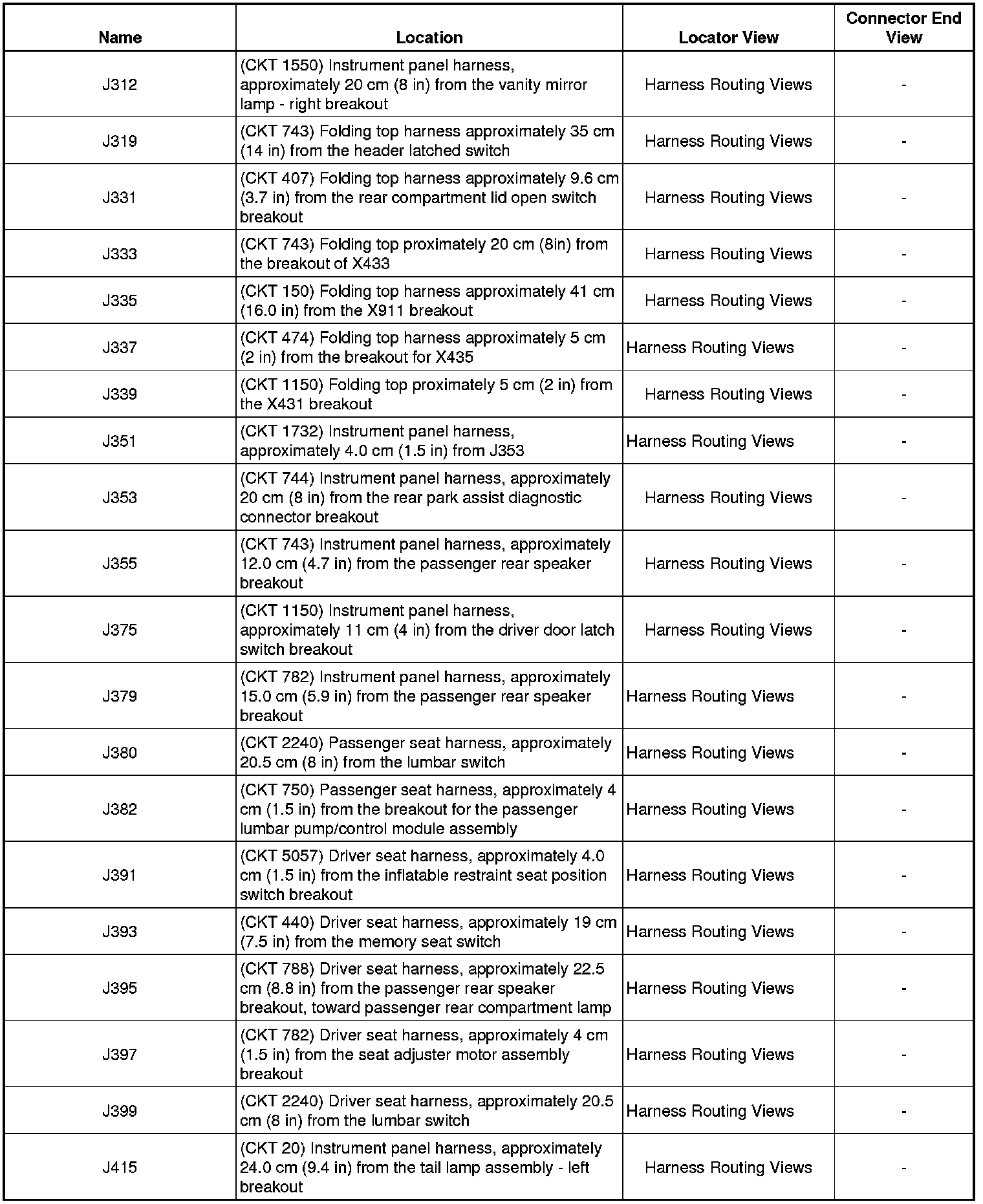

J312 - J415:

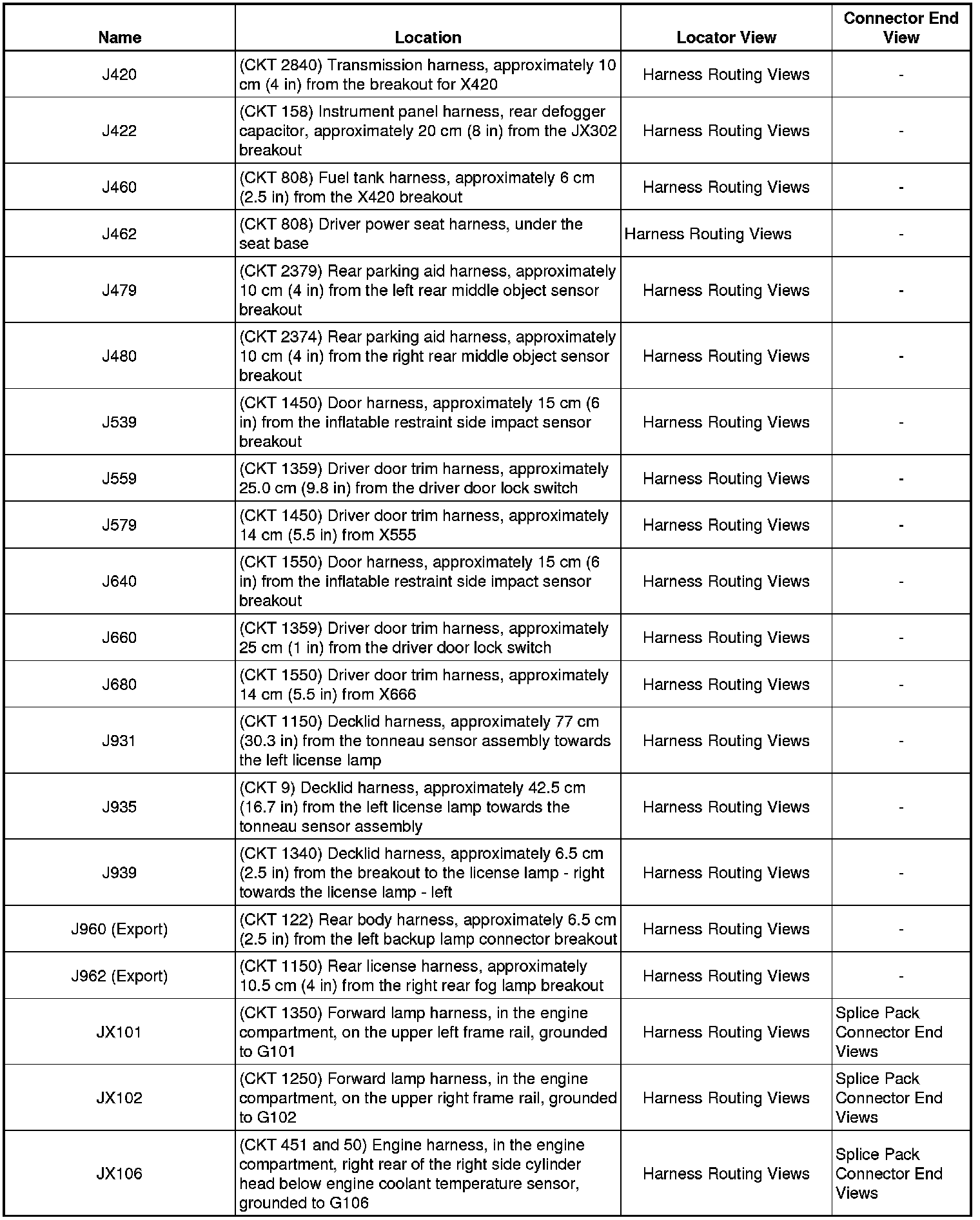

J420 - JX106:

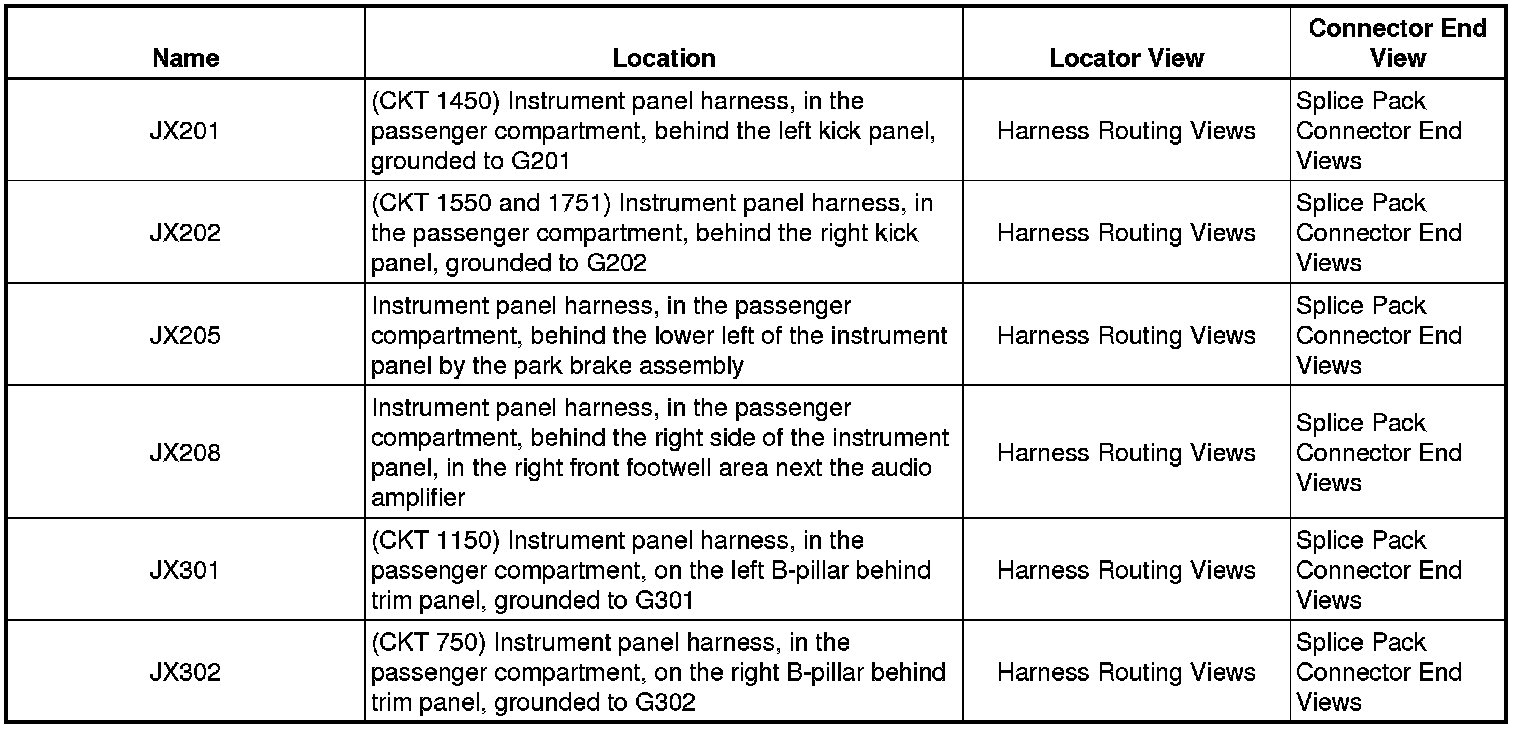

JX201 - JX302:
