LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2008
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List
Master Electrical Component List

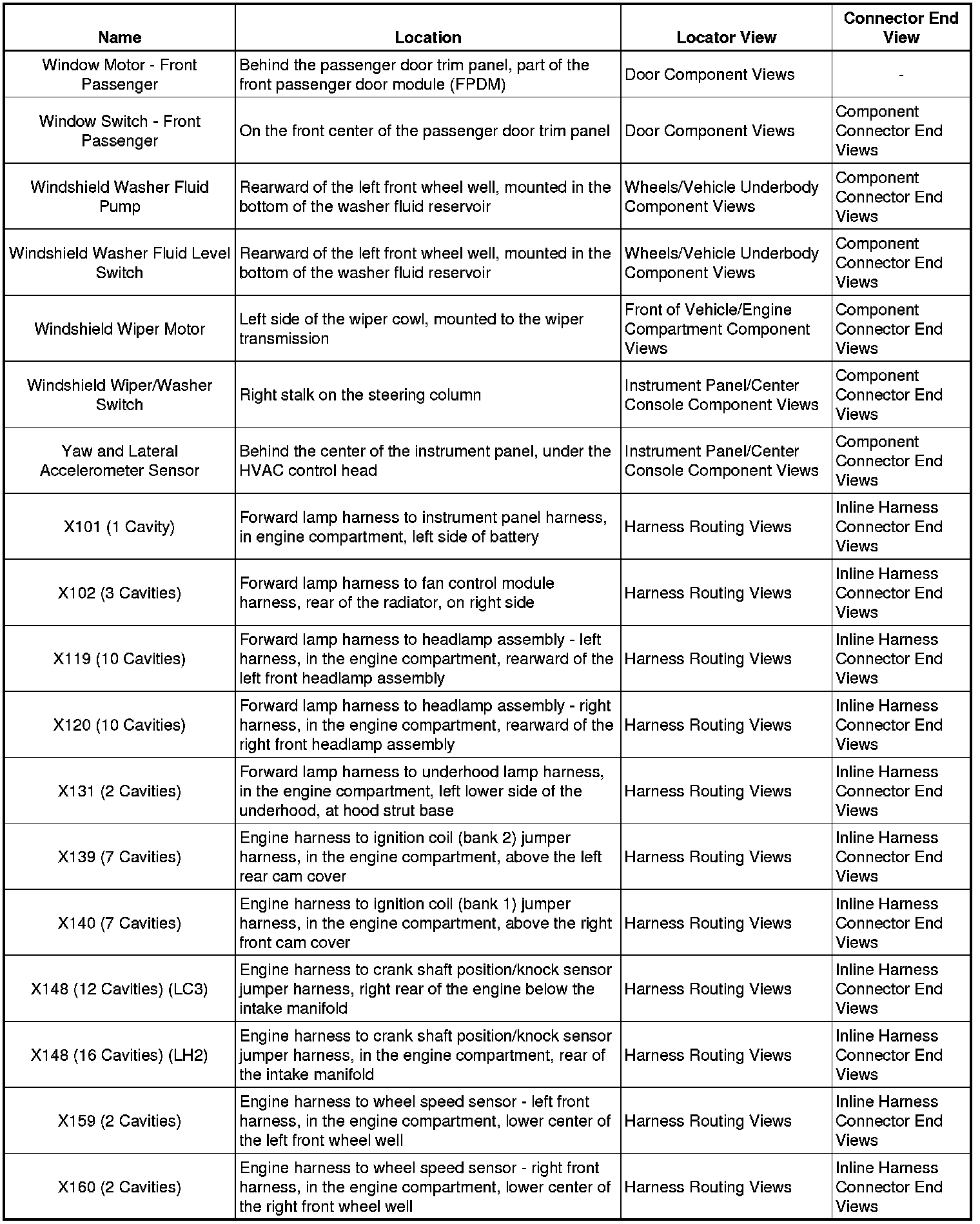

Win - X160:

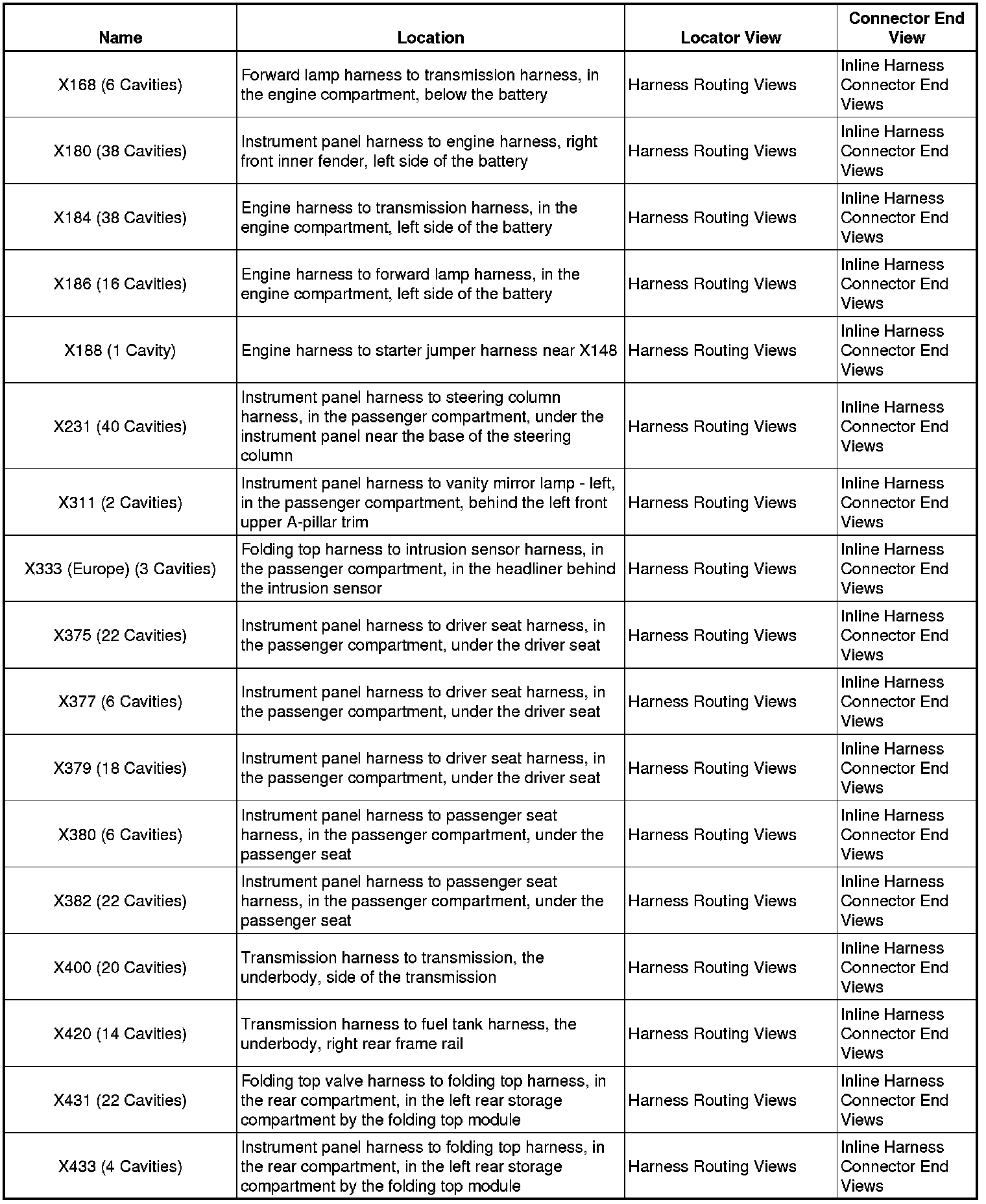

X168 - X433:

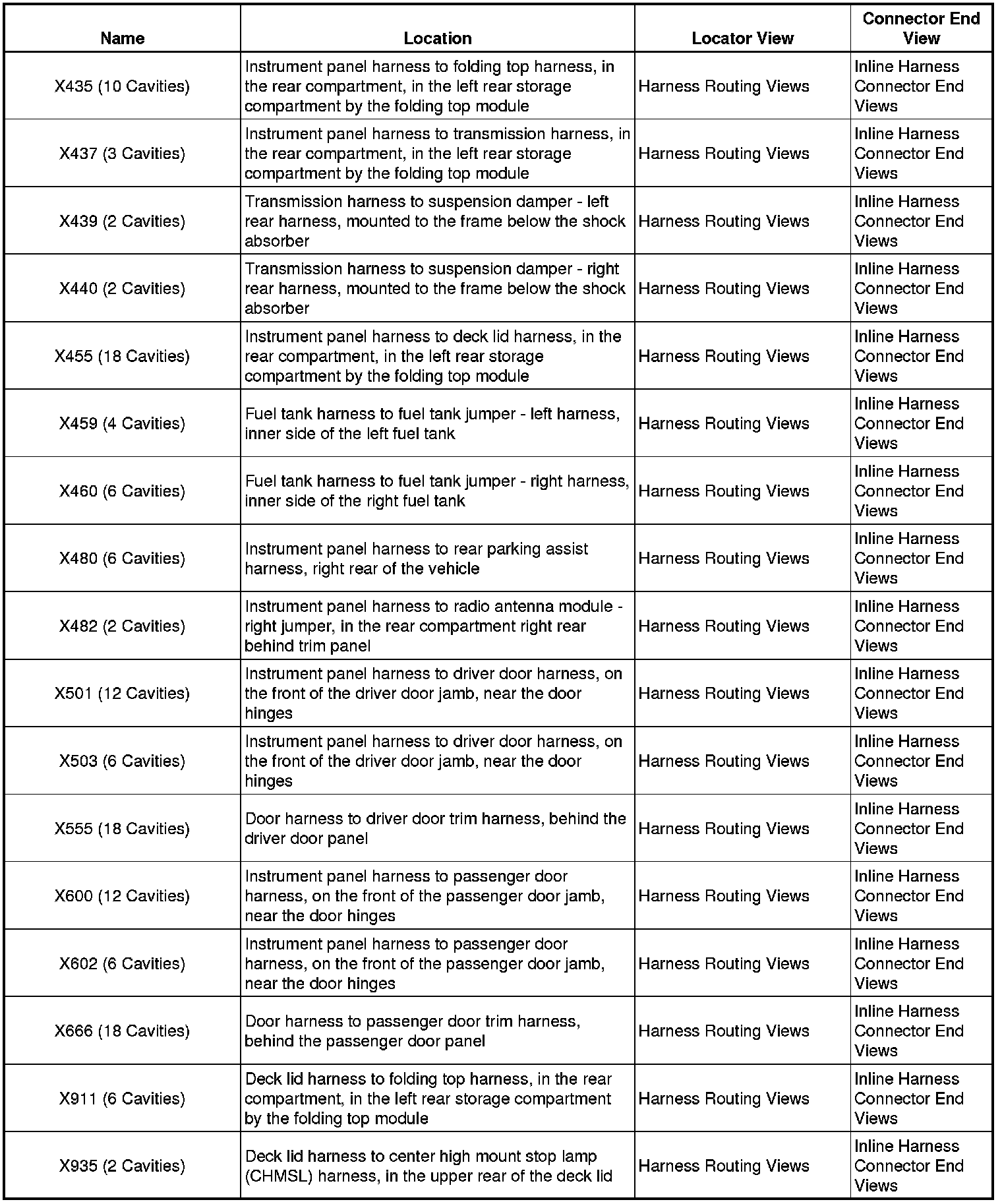

X435 - X935:

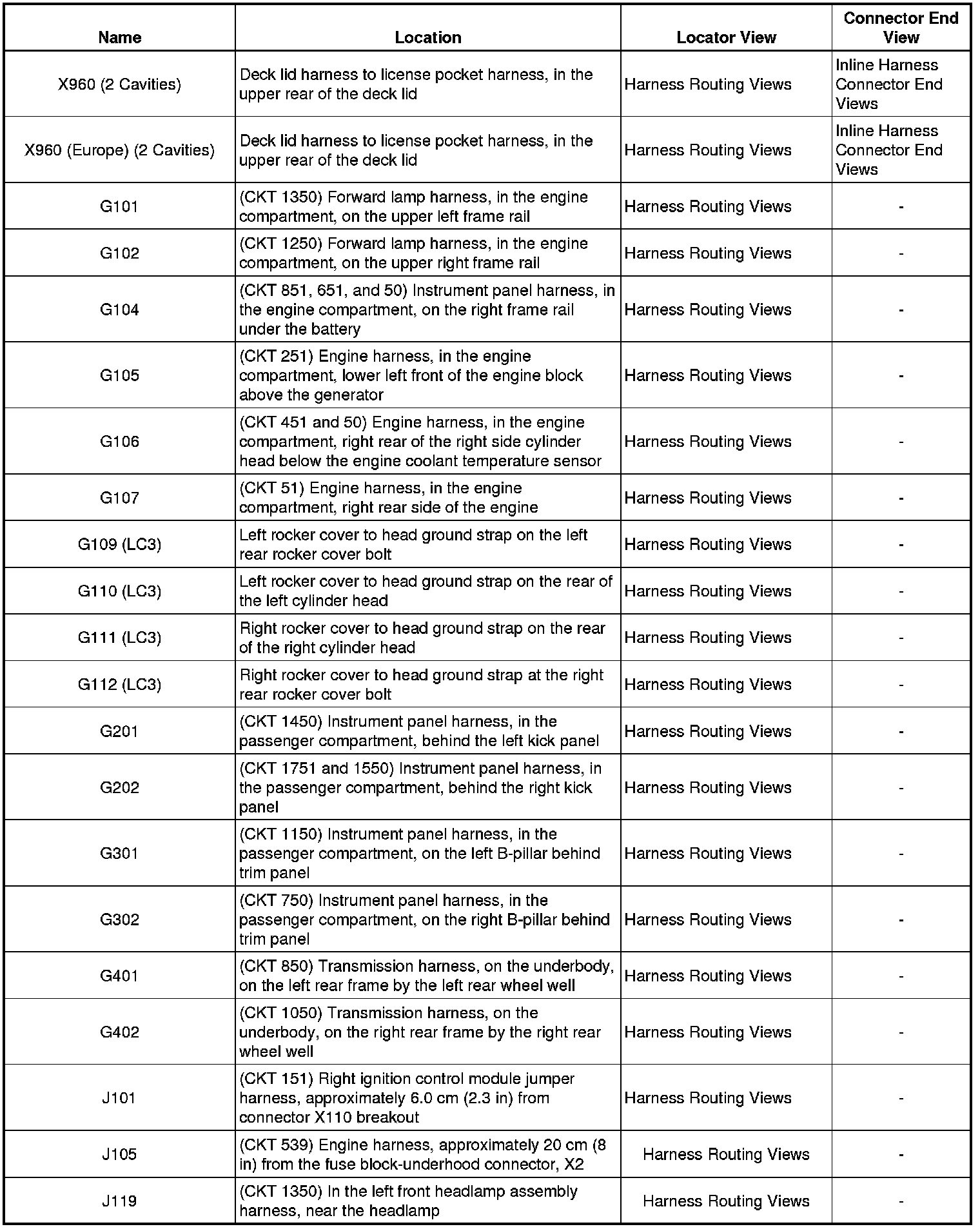

X960 - J119:
