Headlamp: Diagrams



Component Connector End Views

Headlamp Ballast - Left

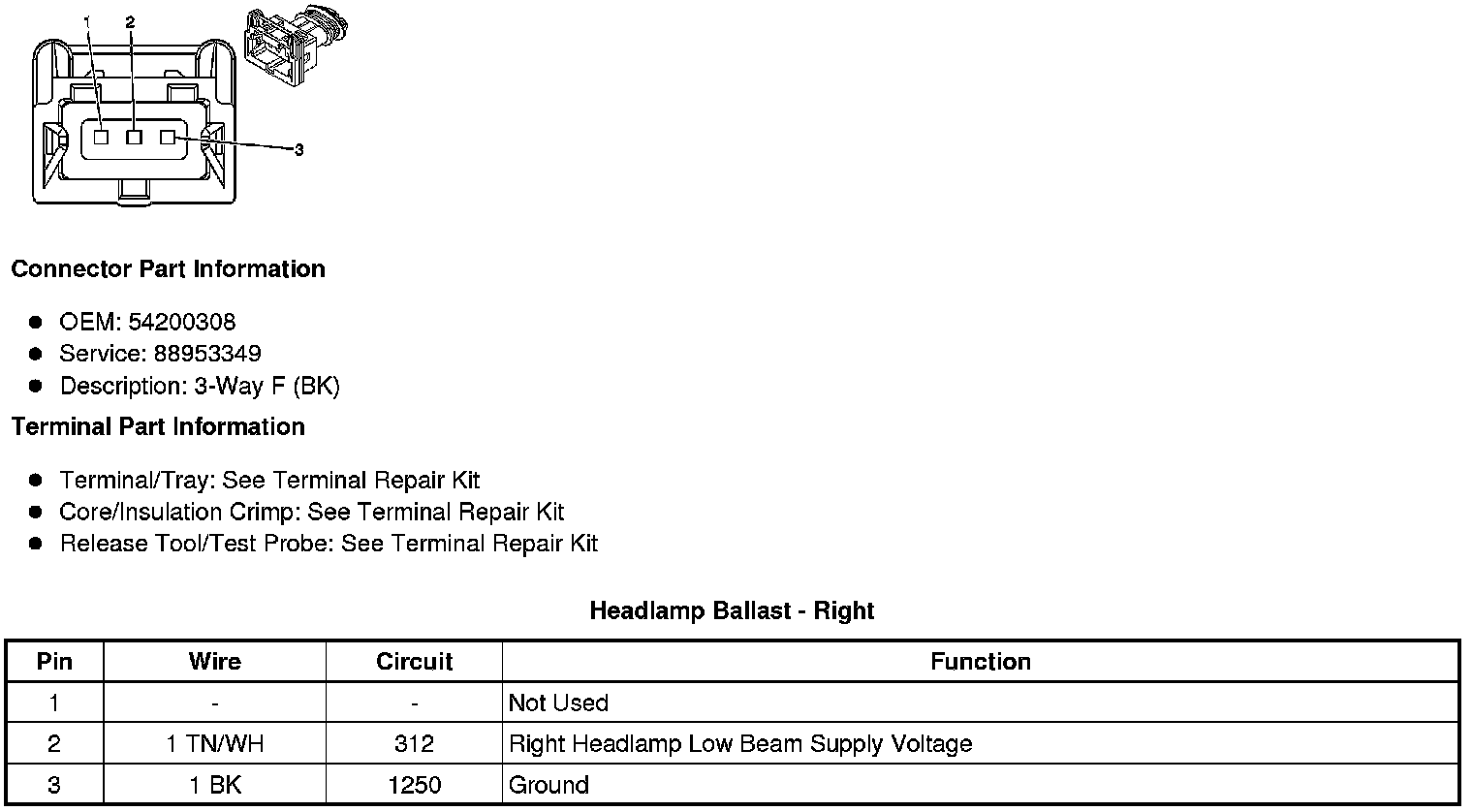

Headlamp Ballast - Right

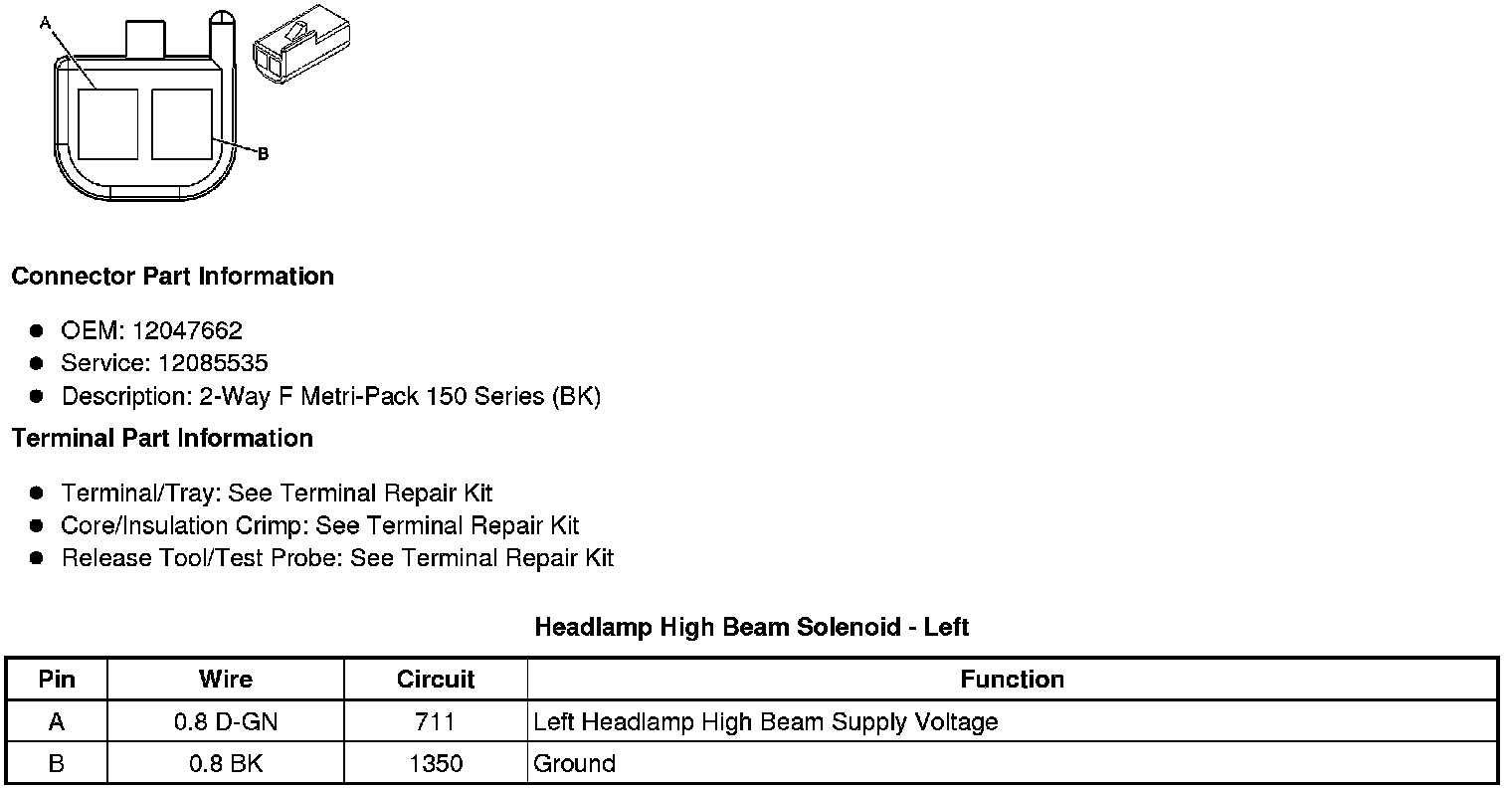

Headlamp High Beam Solenoid - Left

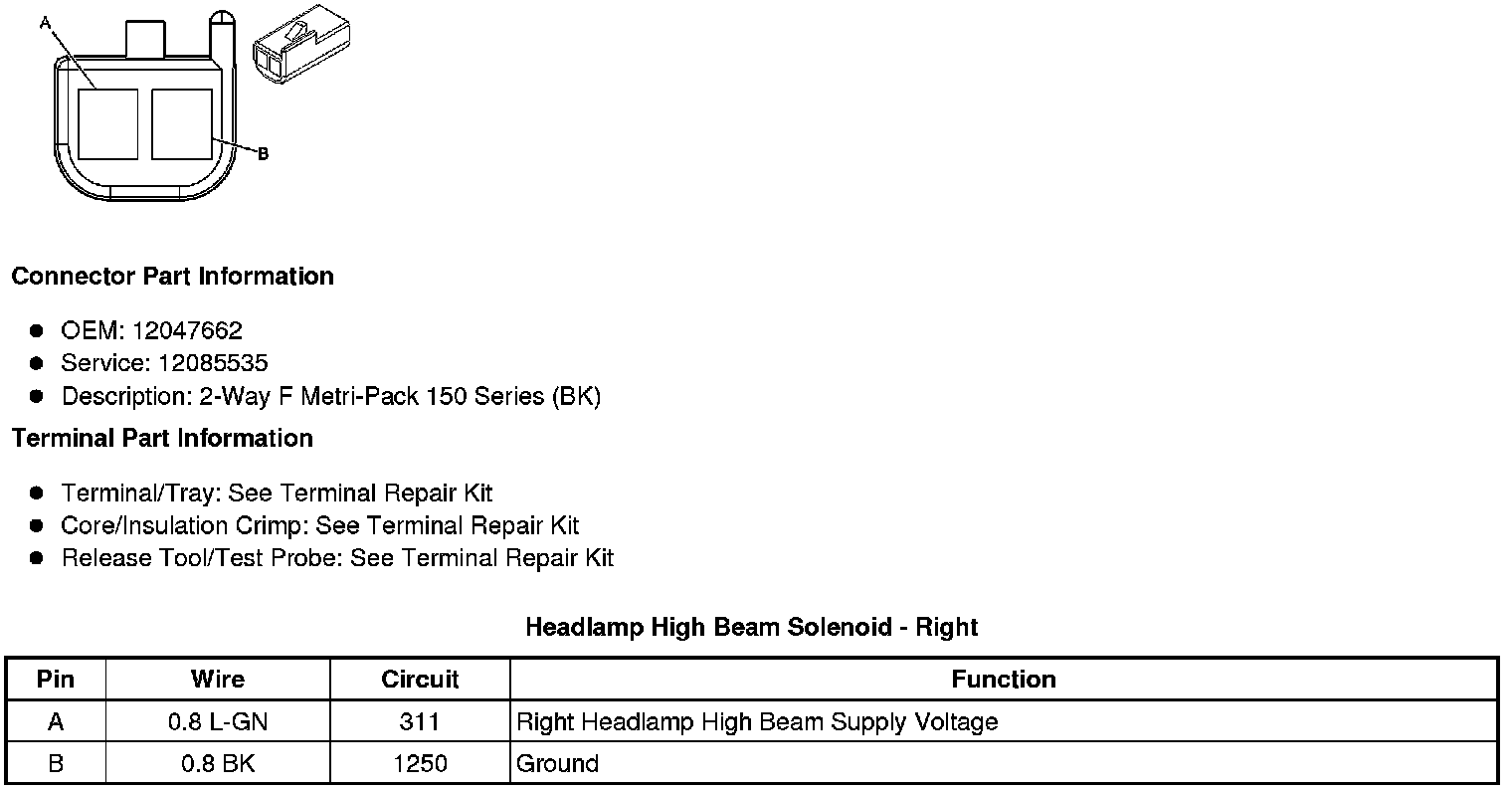

Headlamp High Beam Solenoid - Right
