Home >> Cadillac >> 2008 >> XLR V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams

Courtesy Lamp: Diagrams



Component Connector End Views

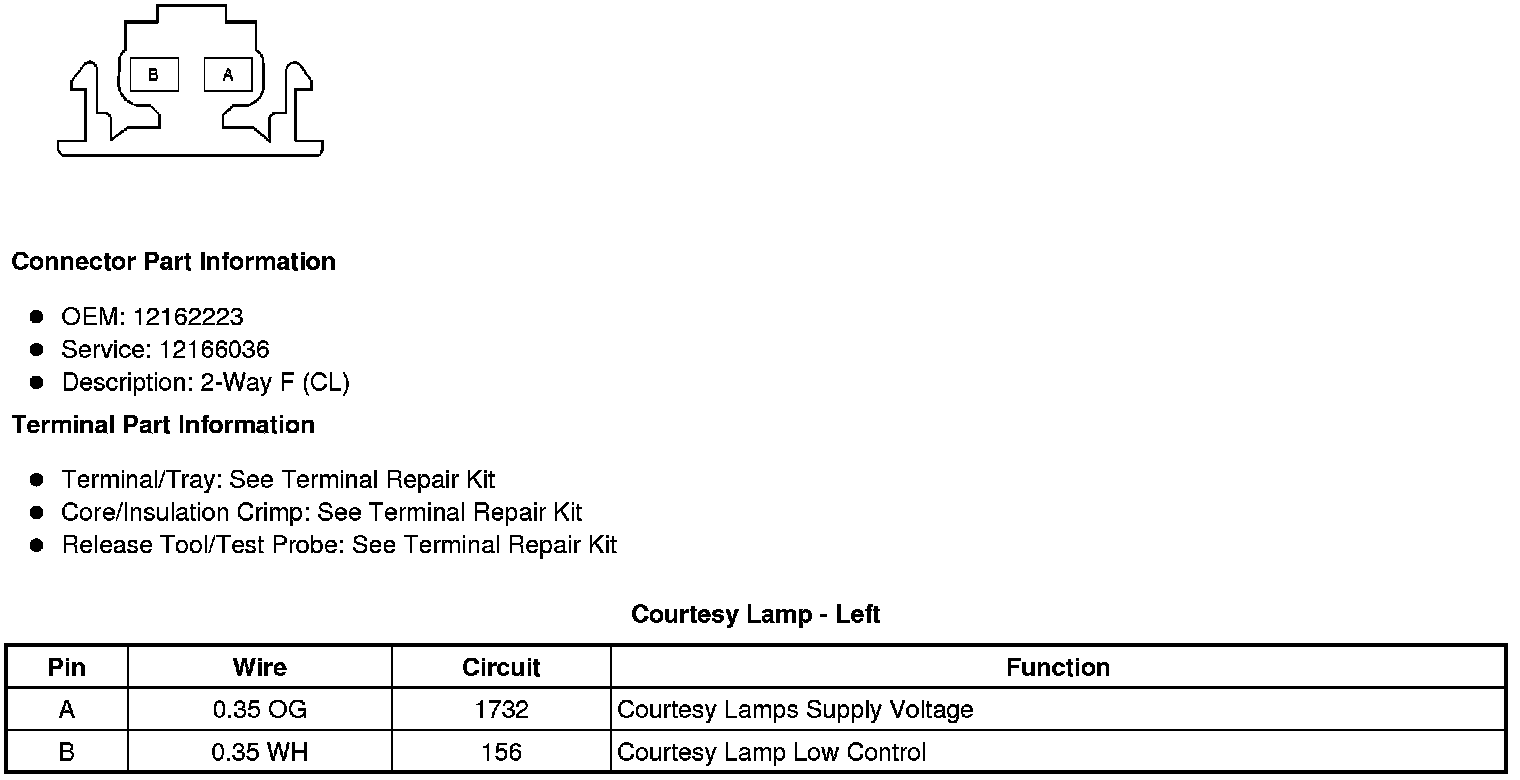

Courtesy Lamp - Left

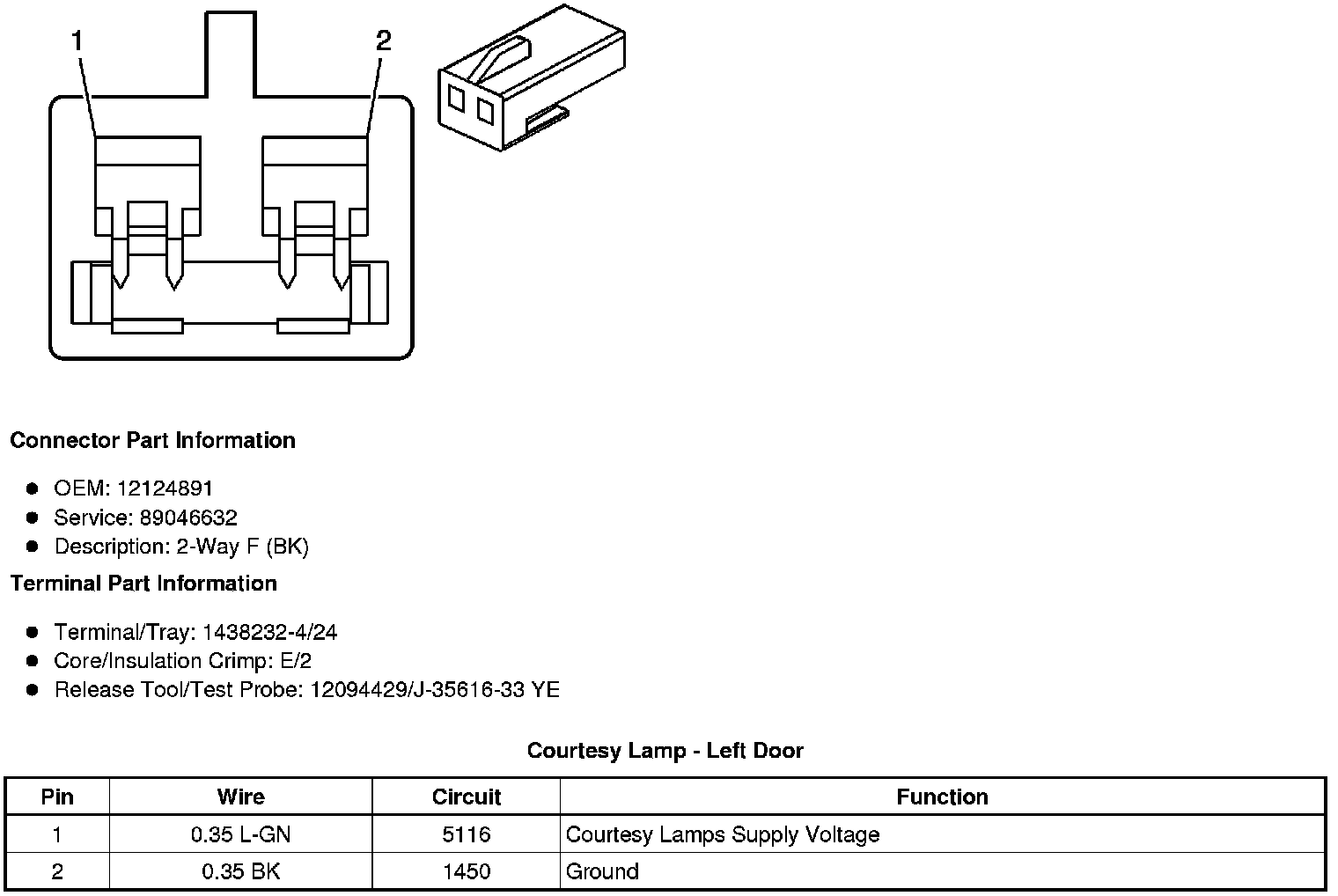

Courtesy Lamp - Left Door

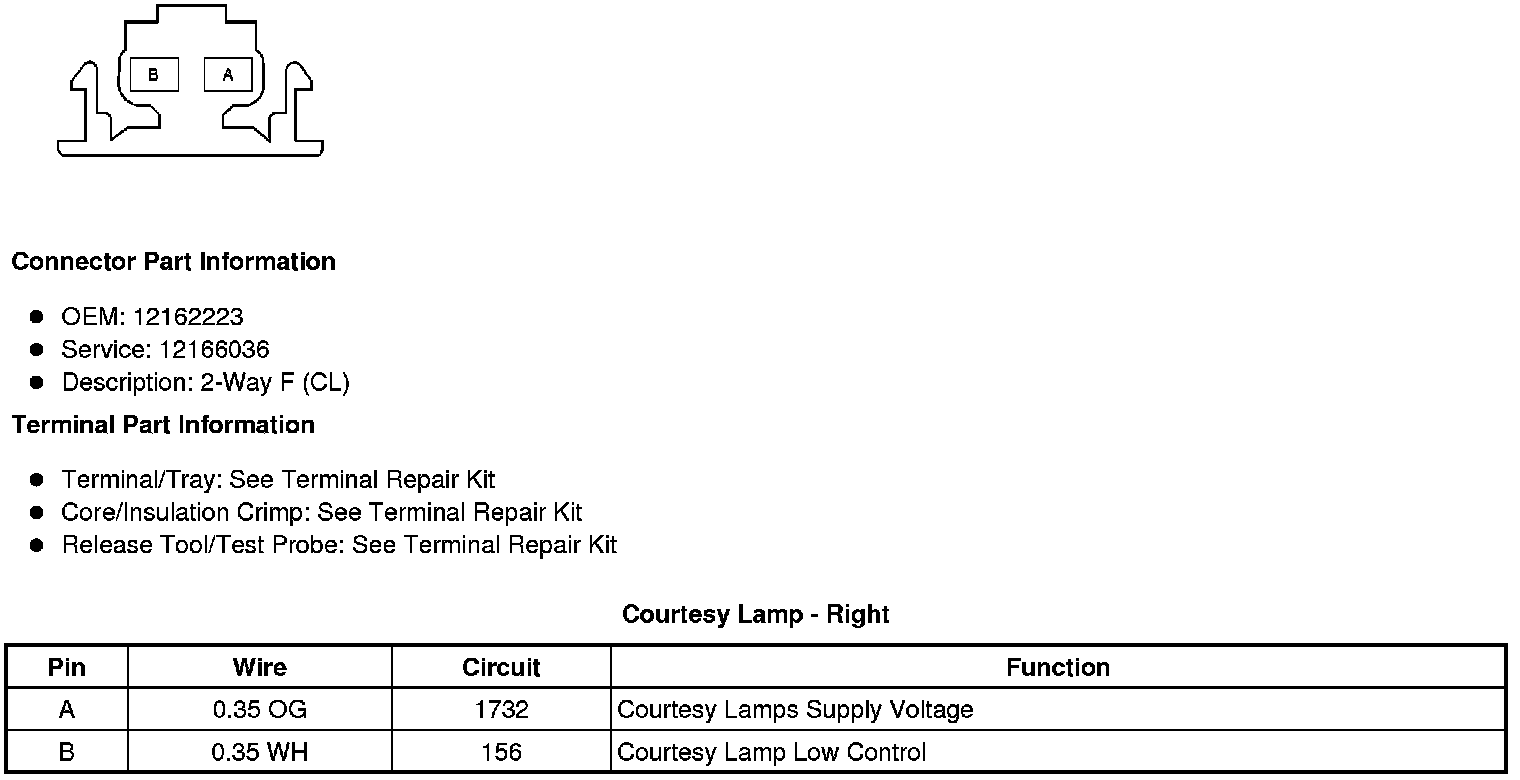

Courtesy Lamp - Right






Courtesy Lamp - Right Door

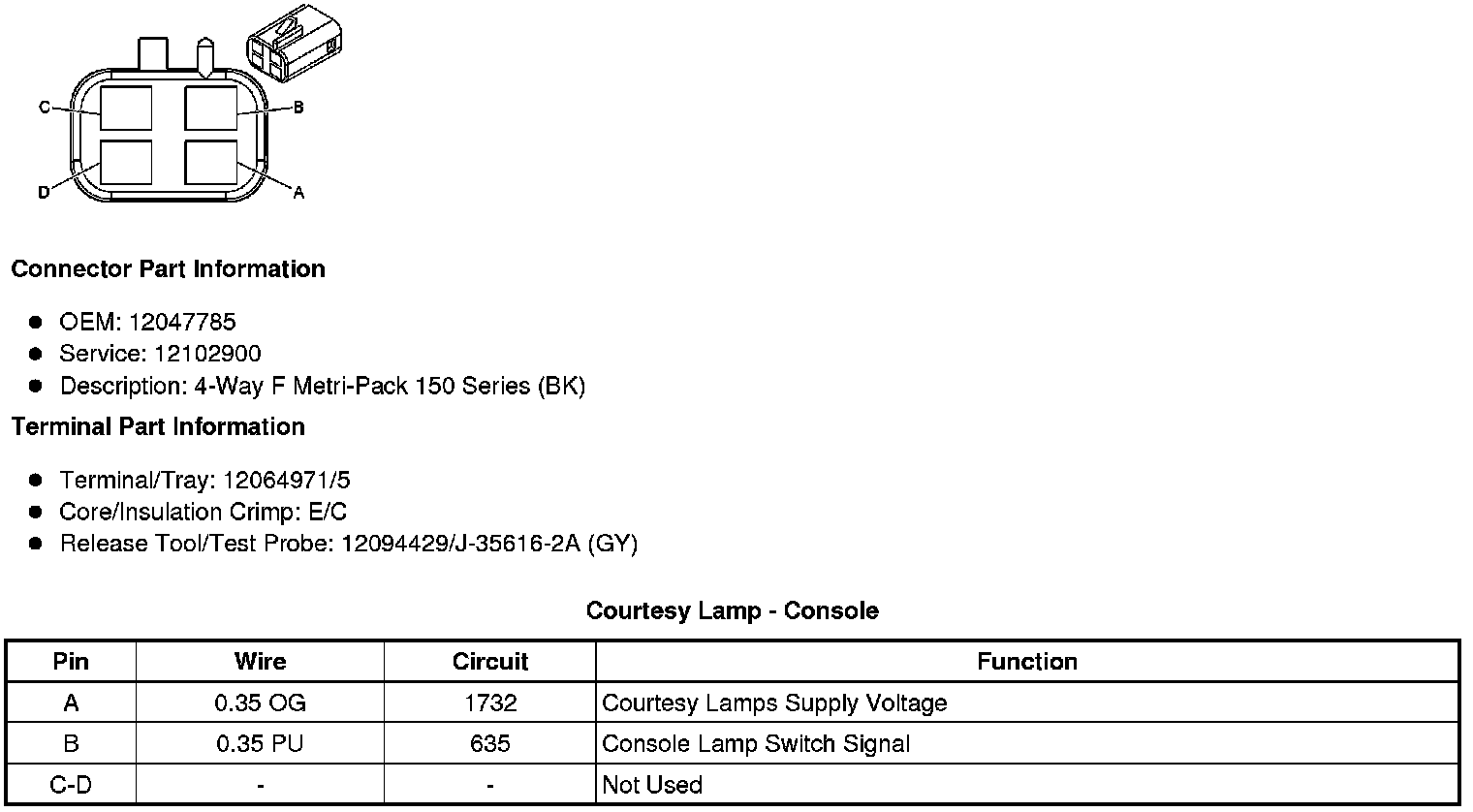

Courtesy Lamp - Console

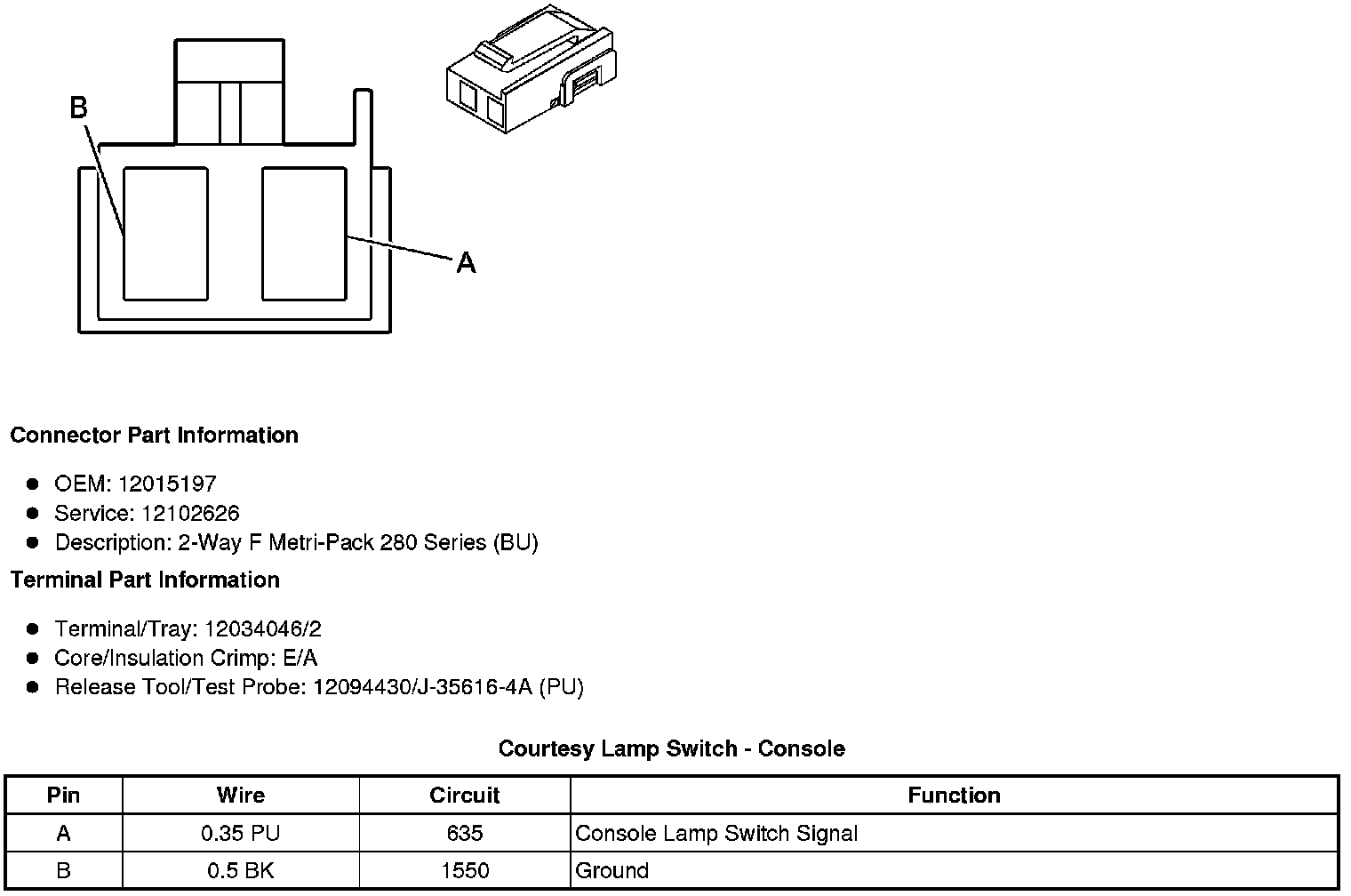

Courtesy Lamp Switch - Console

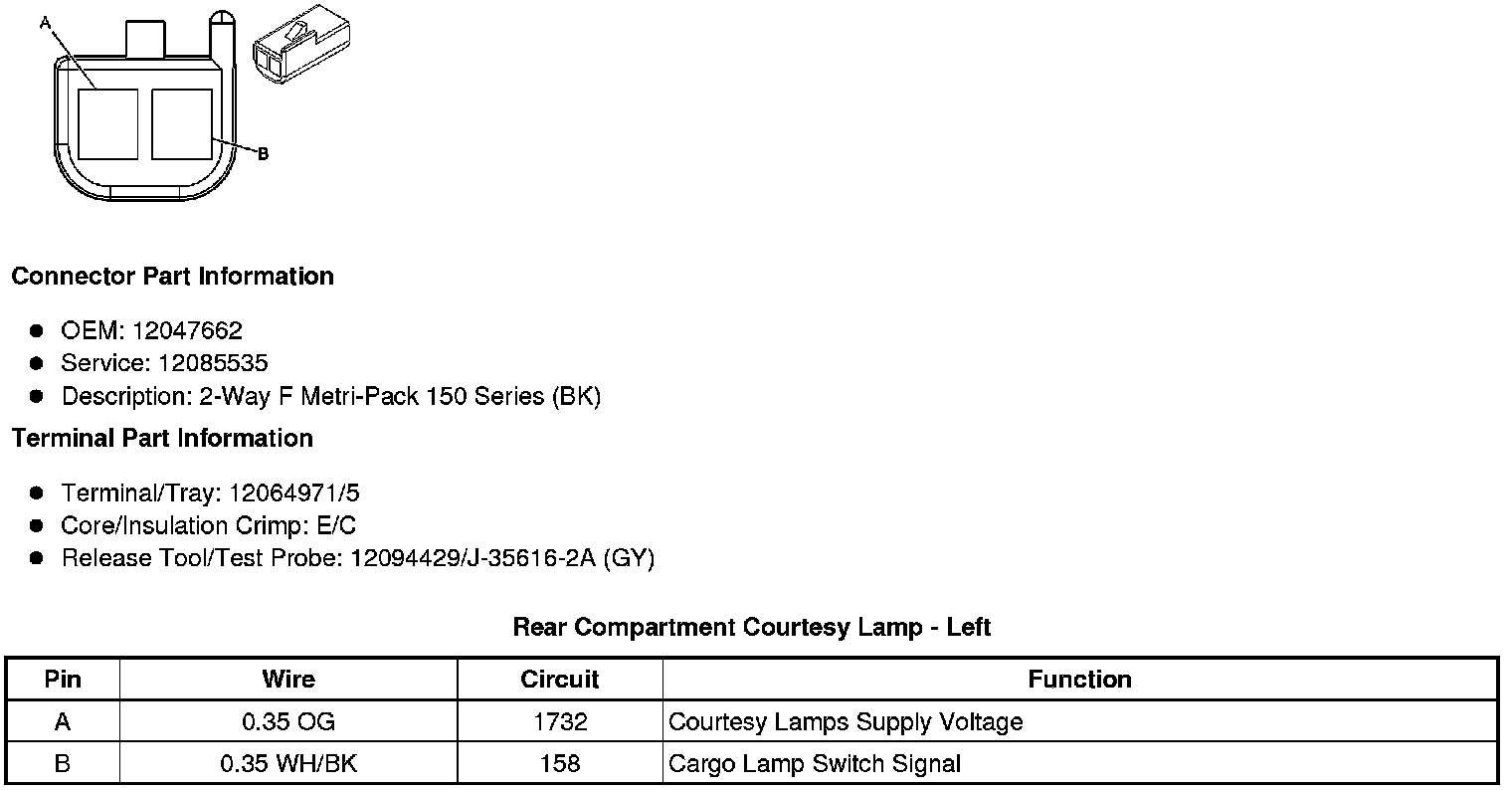

Rear Compartment Courtesy Lamp - Left






Rear Compartment Courtesy Lamp - Right
