Front Side Door Air Duct and Outlet Replacement

Front Side Door Air Duct and Outlet Replacement

Removal Procedure

1. Remove the door trim panel. Refer to Door Trim Panel Replacement (Service and Repair) .

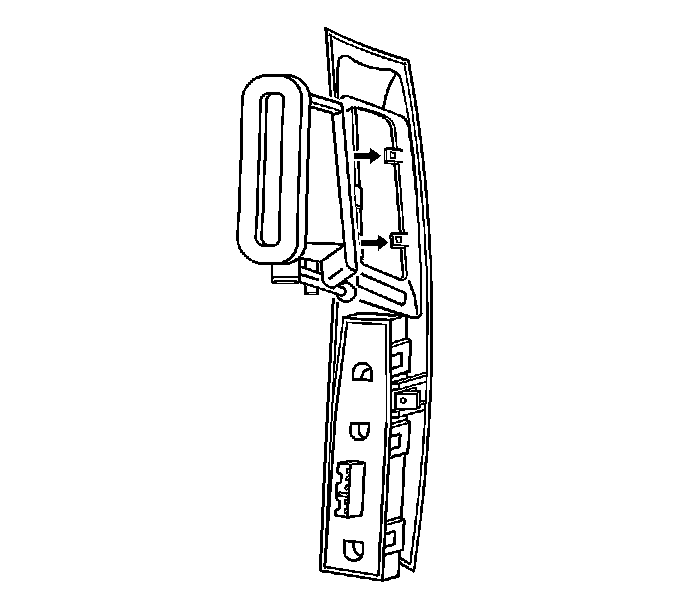

2. Remove the screws attaching the duct.
3. Remove the duct with the boot and the deflector.
4. Remove the deflector from the duct.



Installation Procedure





1. Install the deflector to the duct.
2. Install the duct with the boot to the trim panel.

Notice: Refer to Fastener Notice (Fastener Notice) .

3. Secure the duct with screws to the door trim panel.

Tighten the screws to 2.5 N.m (22 lb in).

4. Install the door trim panel. Refer to Door Trim Panel Replacement (Service and Repair) .
