135. Generator Installation

Generator Installation

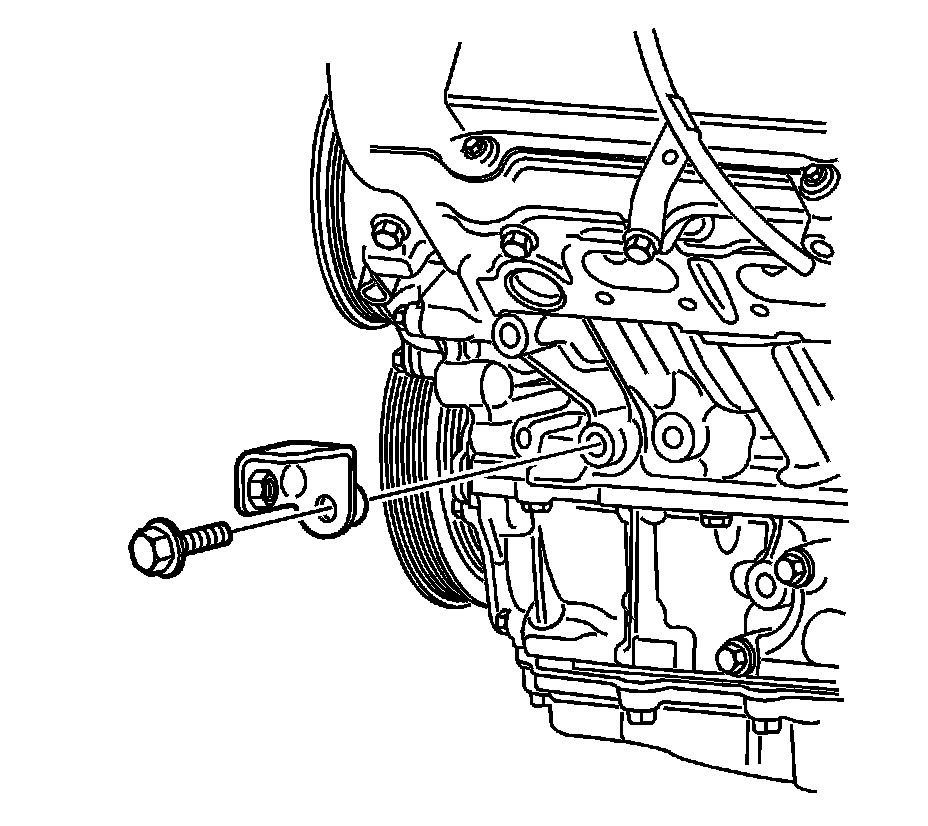

1. Position the rear generator brace to the engine.
2. Install the rear generator brace bolt finger tight.





Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the generator/idler mounting stud.

Tighten the generator/idler mounting stud to 12 N.m (118 lb in).

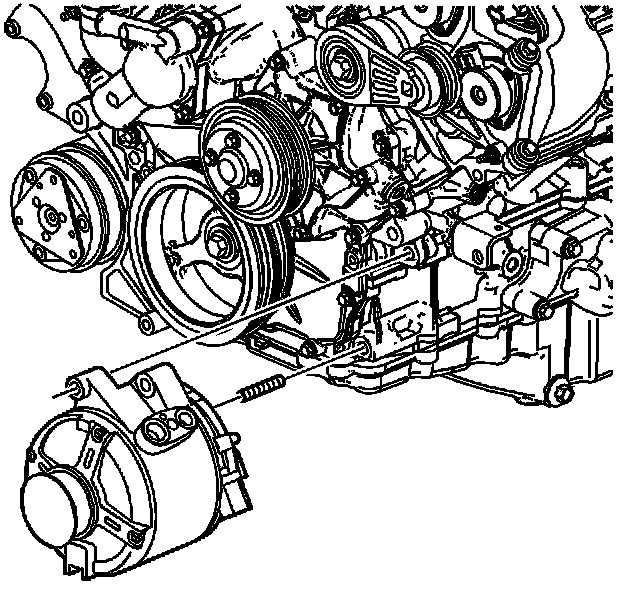

4. Install the generator over the generator/idler mounting stud.

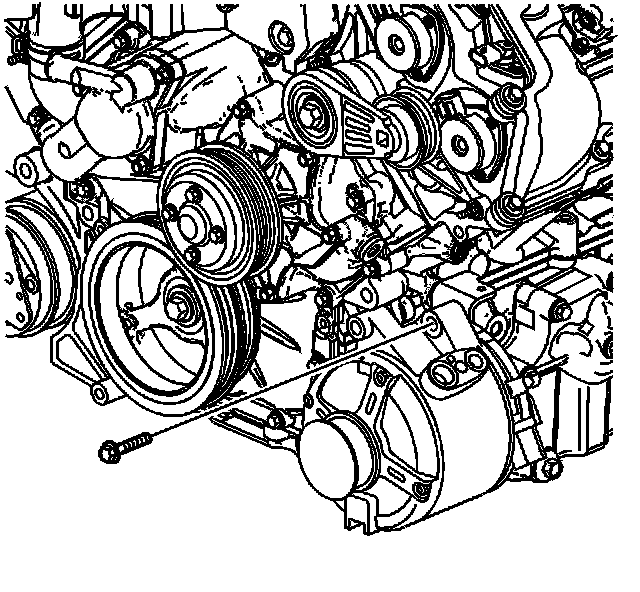

5. Install the front upper generator bolt finger tight through the generator and into the rear generator brace.
