124. Ignition Coil Module Installation - Left Side

Ignition Coil Module Installation - Left Side






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the left spark plugs.

Tighten the spark plugs to 15 N.m (11 lb ft).





2. Apply a small amount of dielectric grease GM P/N 12345579, (Canadian P/N 1974984), to each spark plug boot (1) of the ignition coil assembly.




3. Carefully, install the left ignition coil assembly.

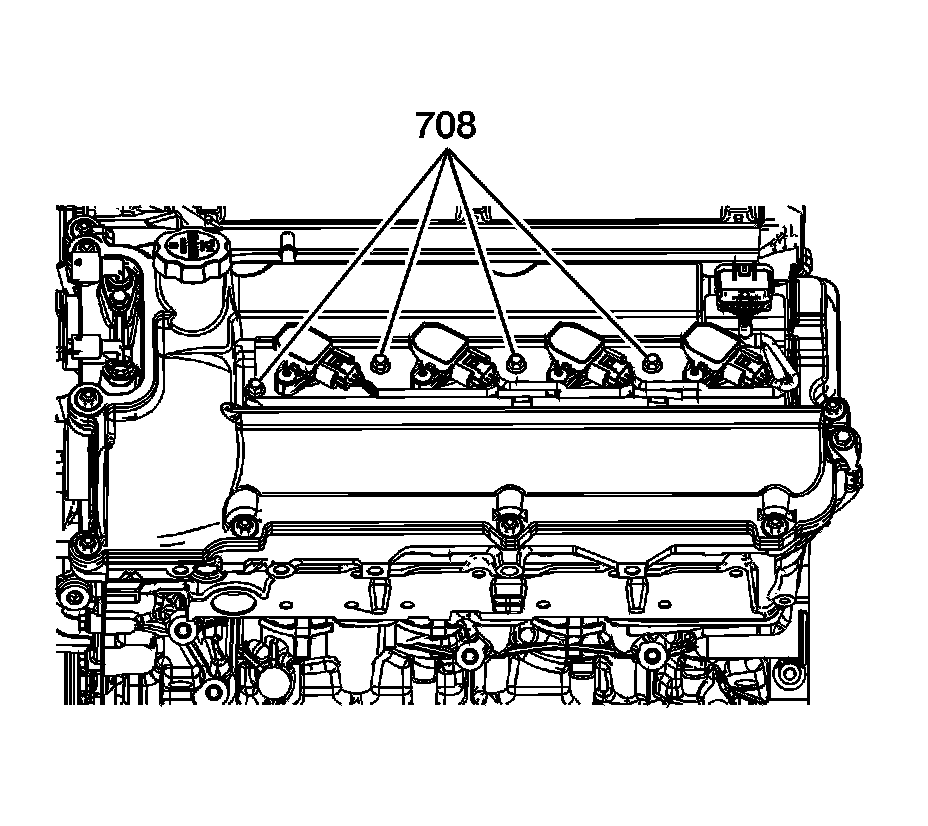

4. Install the left ignition coil assembly bolts (708).

Tighten the left ignition coil assembly bolts (708) to 10 N.m (89 lb in).
