Engine Mount Bracket Replacement - Right



Engine Mount Bracket Replacement - Right Side

Removal Procedure

1. Remove the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair) .

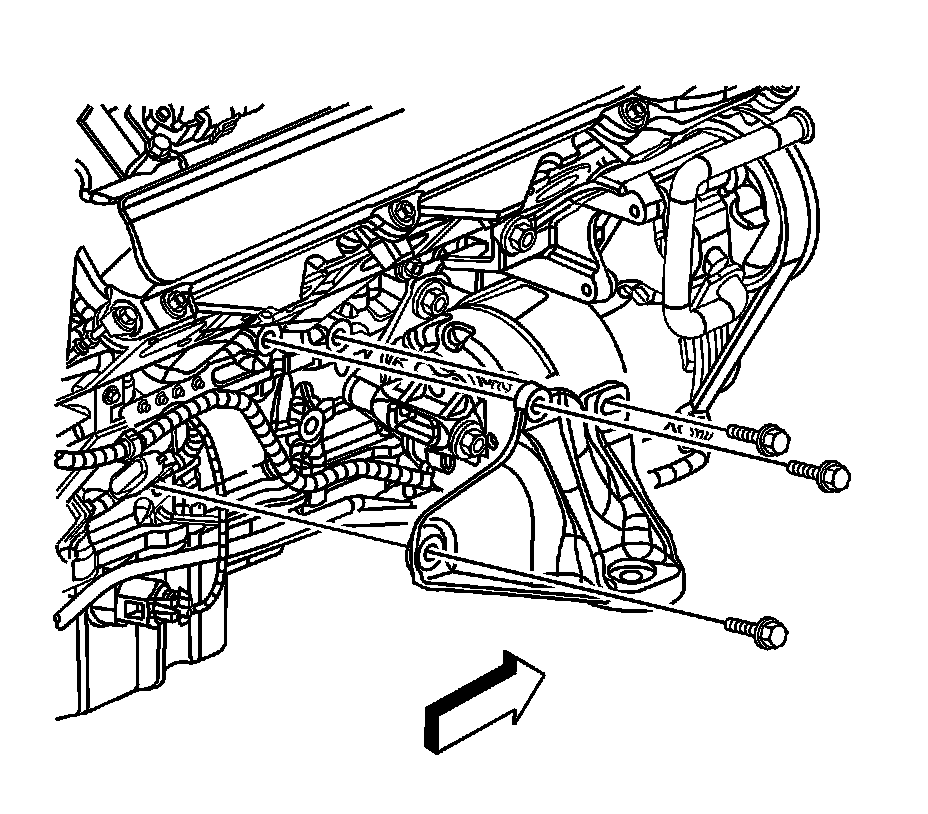

2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.



Installation Procedure

1. Install the engine mount bracket.

Notice: Refer to Fastener Notice (Fastener Notice) .





2. Install the engine mount bracket bolts.

Tighten the engine mount bracket bolts to 58 N.m (43 lb ft).

3. Install the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair) .
