Engine Mount Bracket Replacement - Left



Engine Mount Bracket Replacement - Left Side

Removal Procedure

1. Remove the left engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair) .

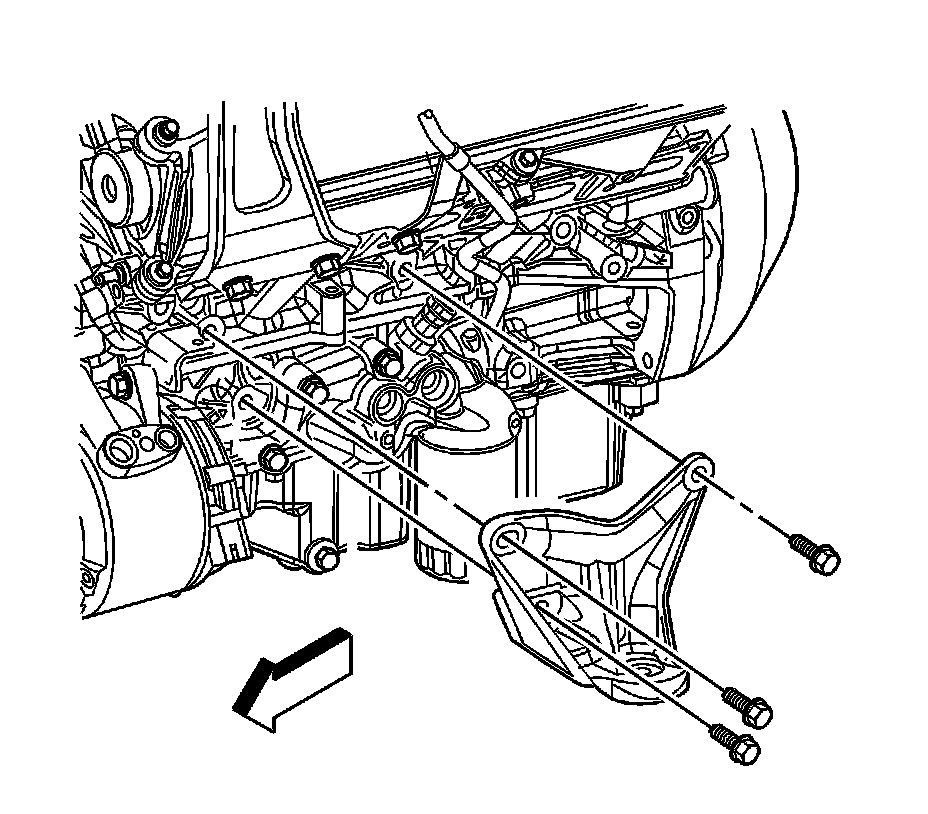

2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.



Installation Procedure

1. Install the engine mount bracket.
Notice: Refer to Fastener Notice (Fastener Notice) .






2. Install the engine mount bracket bolts.

Tighten the engine mount bracket bolts to 58 N.m (43 lb ft).

3. Install the left engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair) .
