Wiper and Washer Systems



Wiper/Washer Schematics

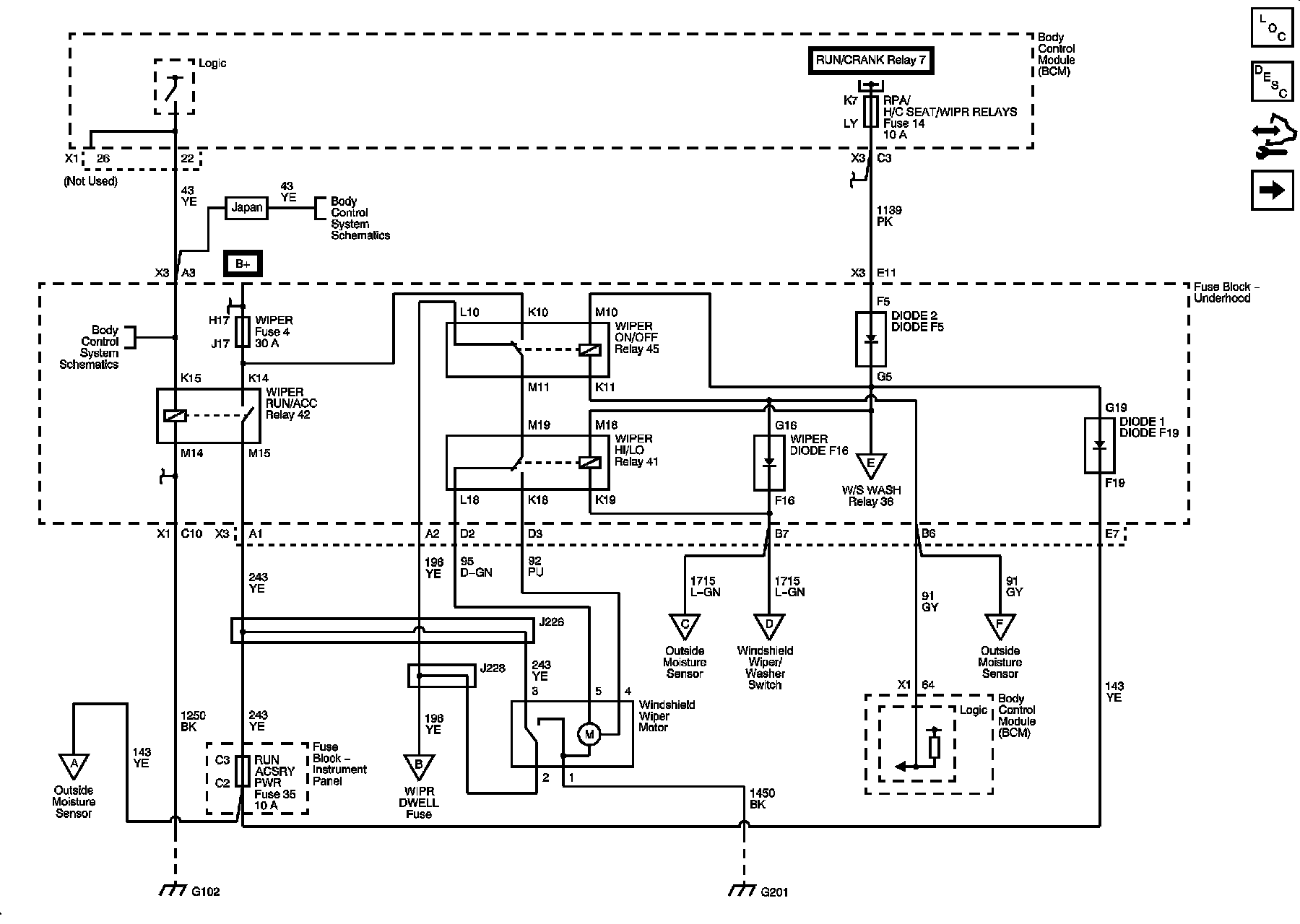

Power, Ground, and Wiper Motor

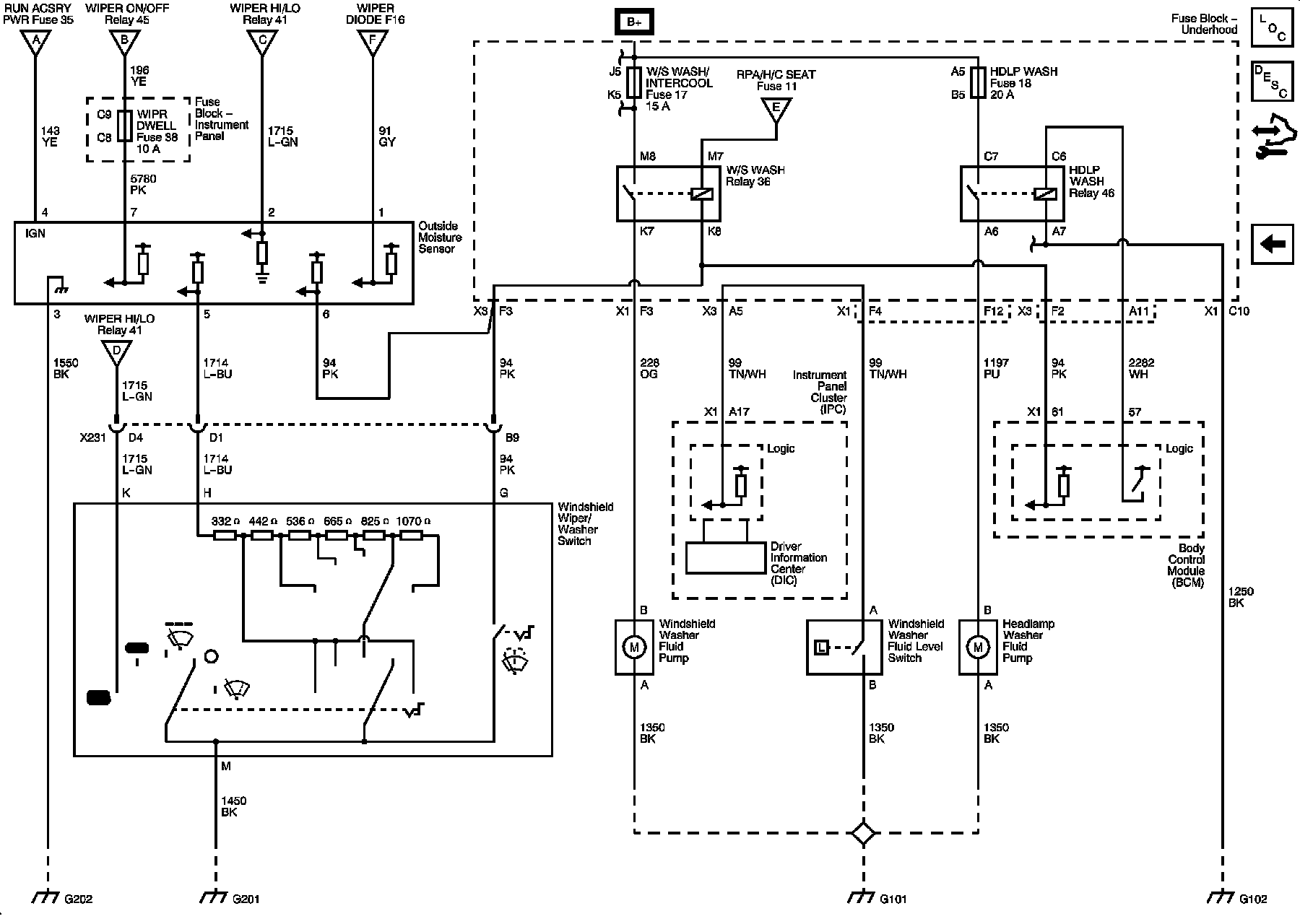

Wiper Switch, Washers, and Outside Moisture Sensor
