Transmission Control Systems



Automatic Transmission Controls Schematics

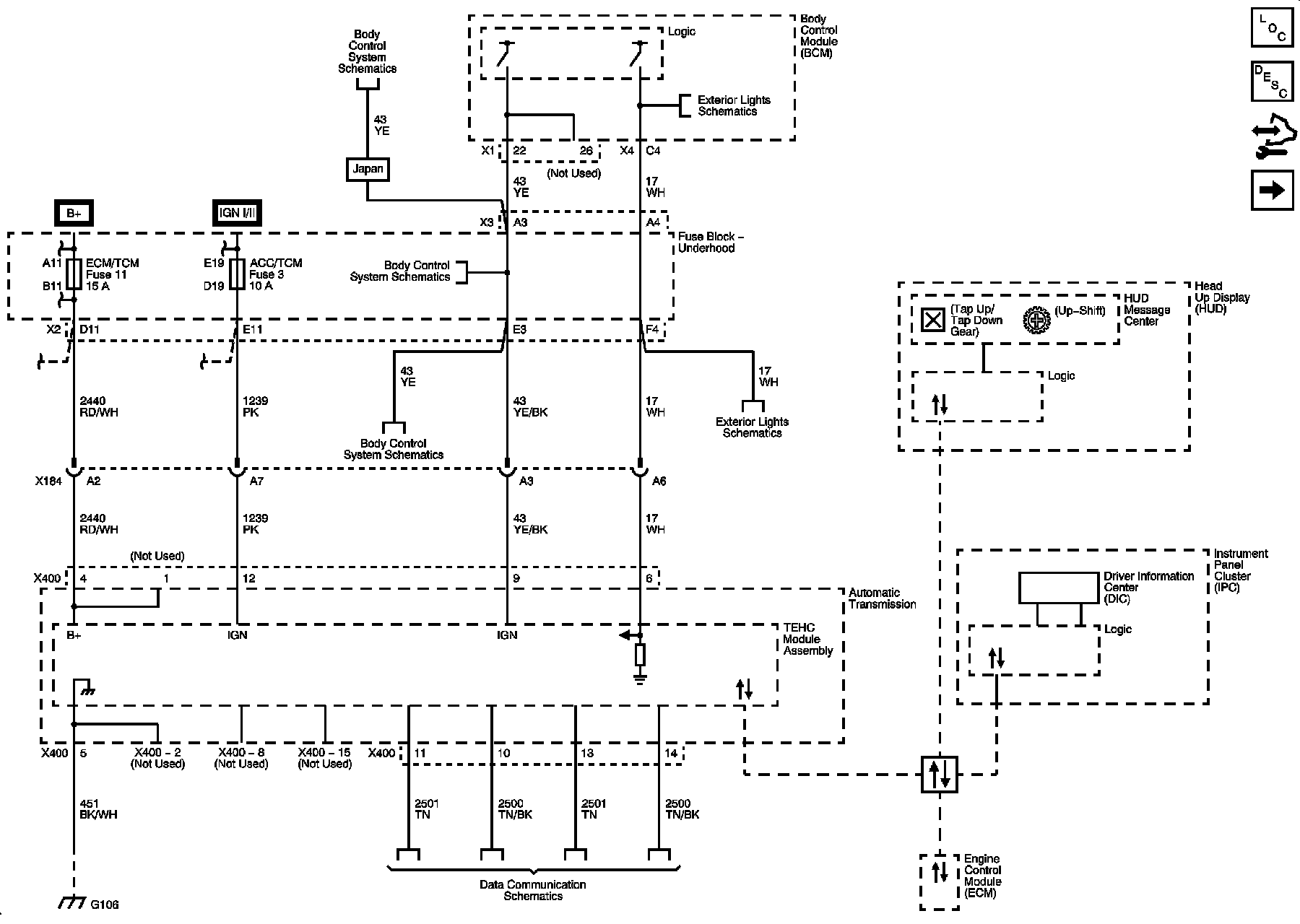

Power, Ground, and Serial Data

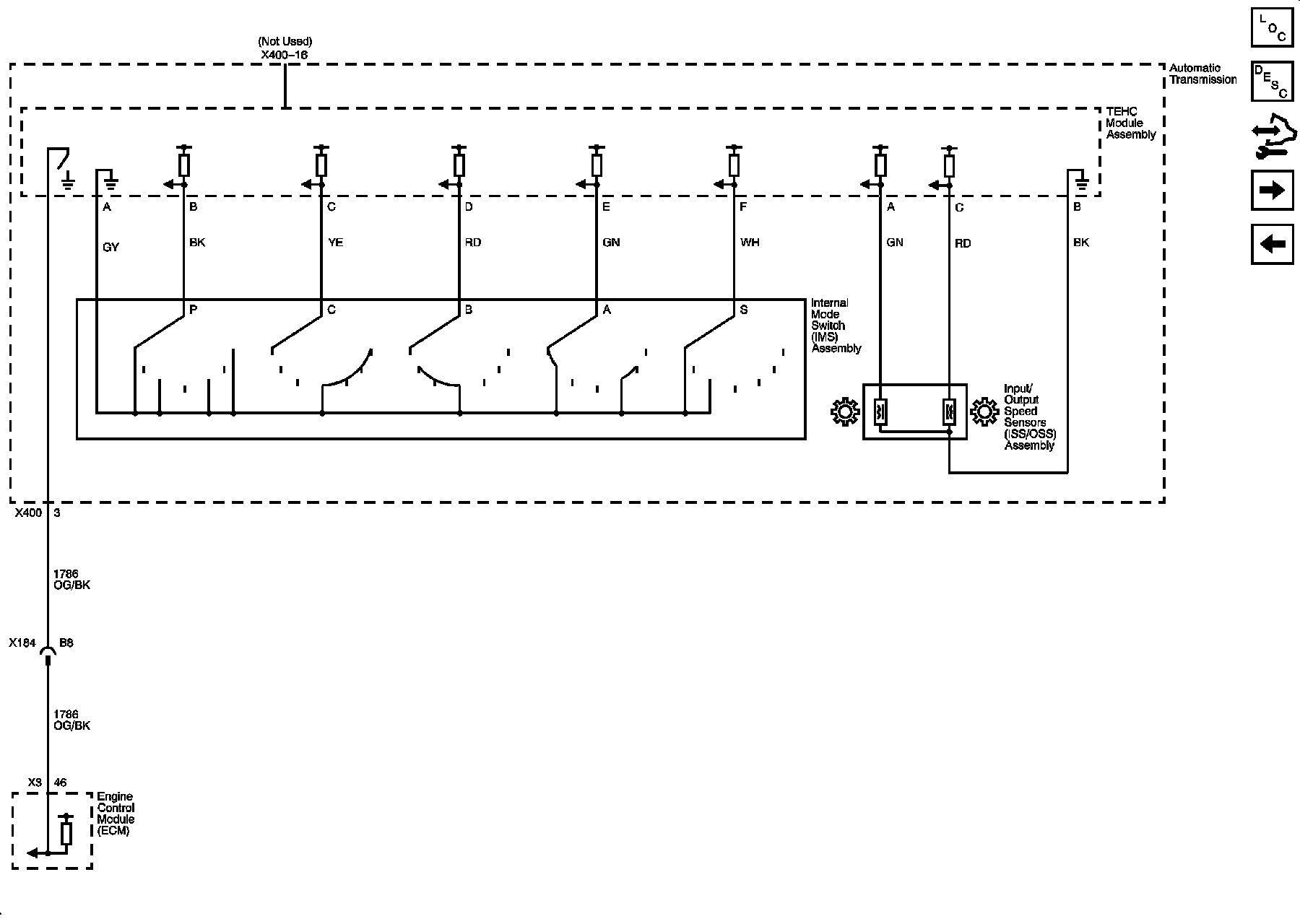

IMS Switch, Shift Solenoids, and TCC, PC, TFT, VSS Sensors

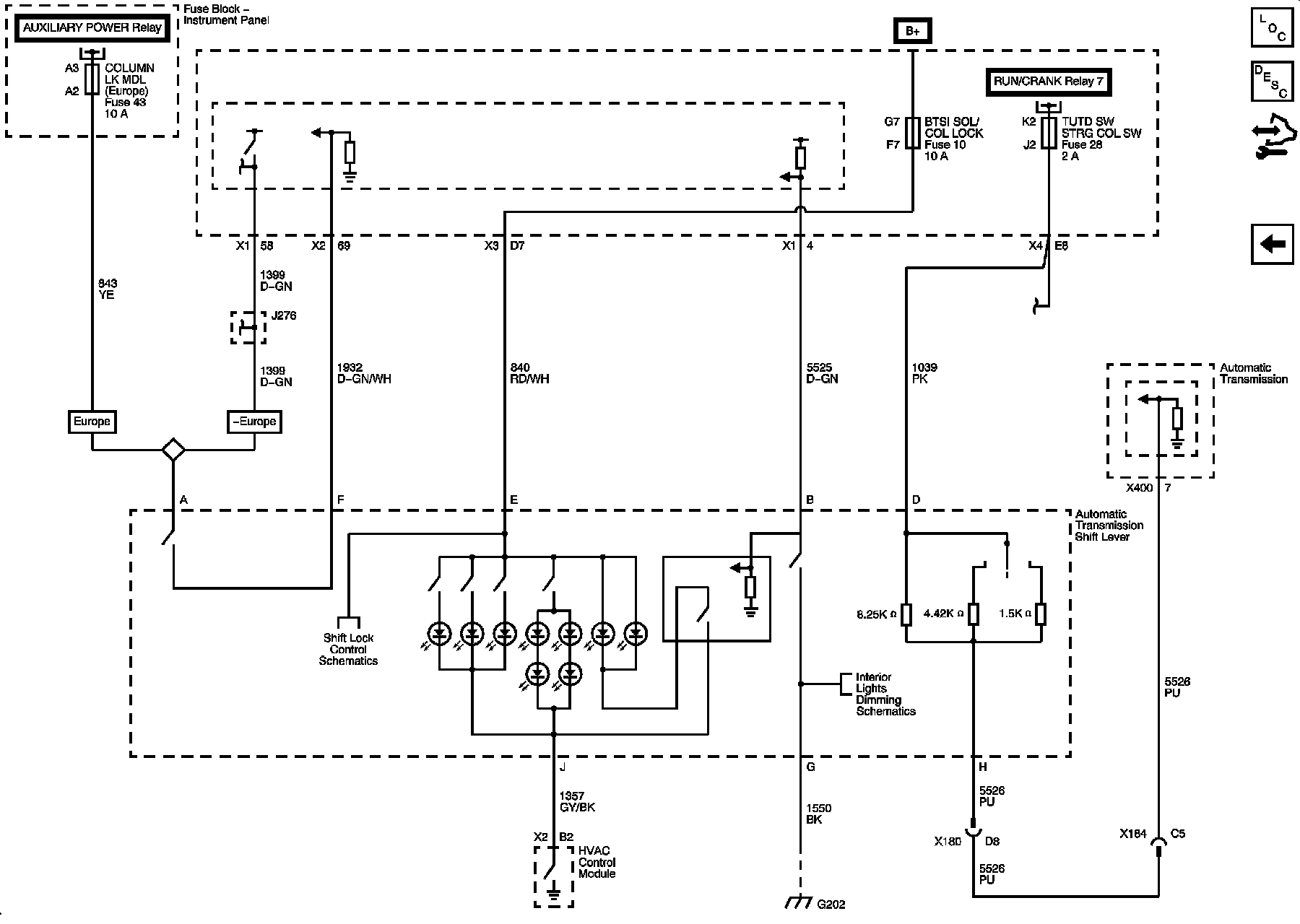

Shift Lever
