Antilock Brakes / Traction Control Systems

Antilock Brake System Schematics

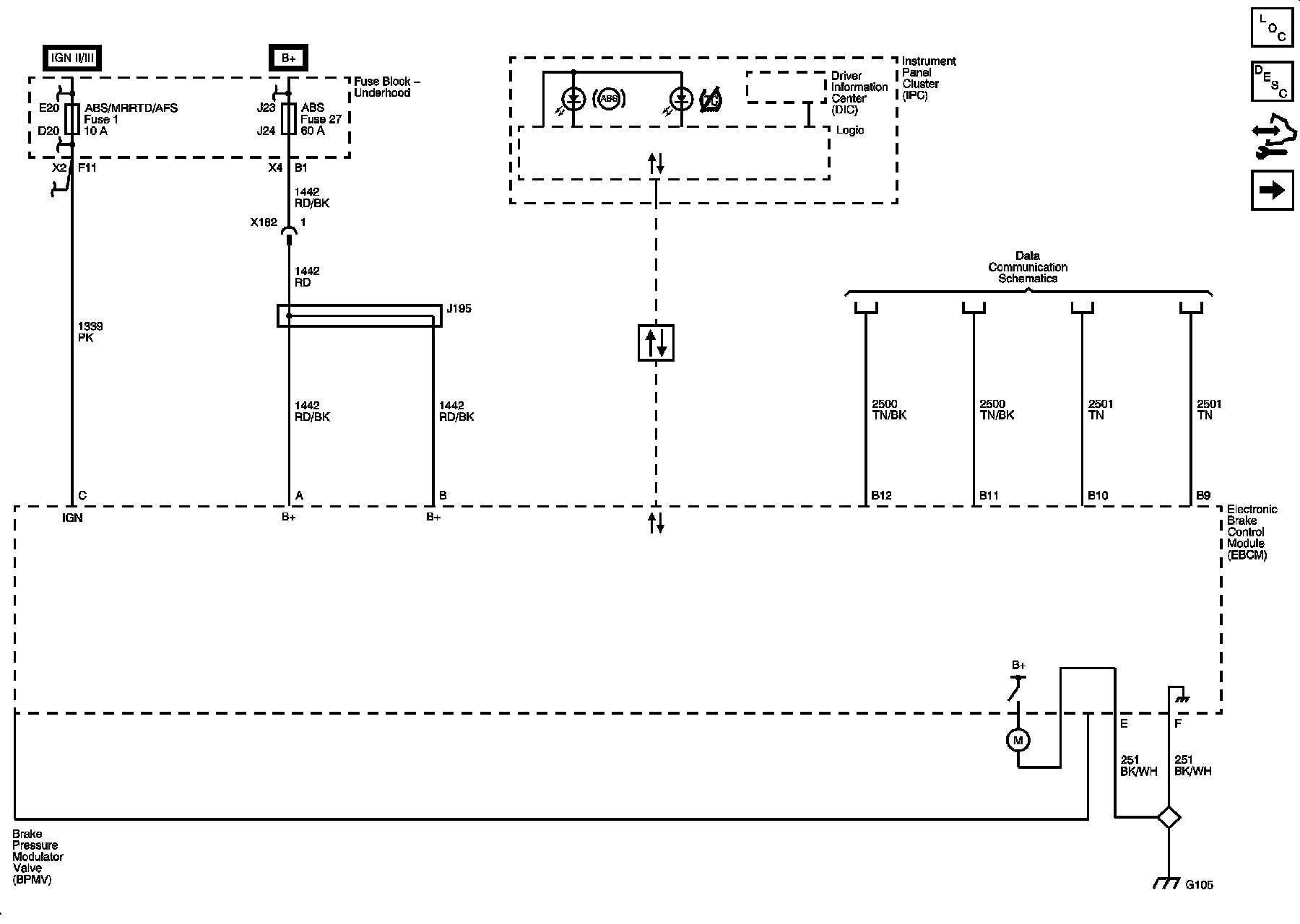

Power, Ground, Indicators, and Brake Pressure Modulator Valve

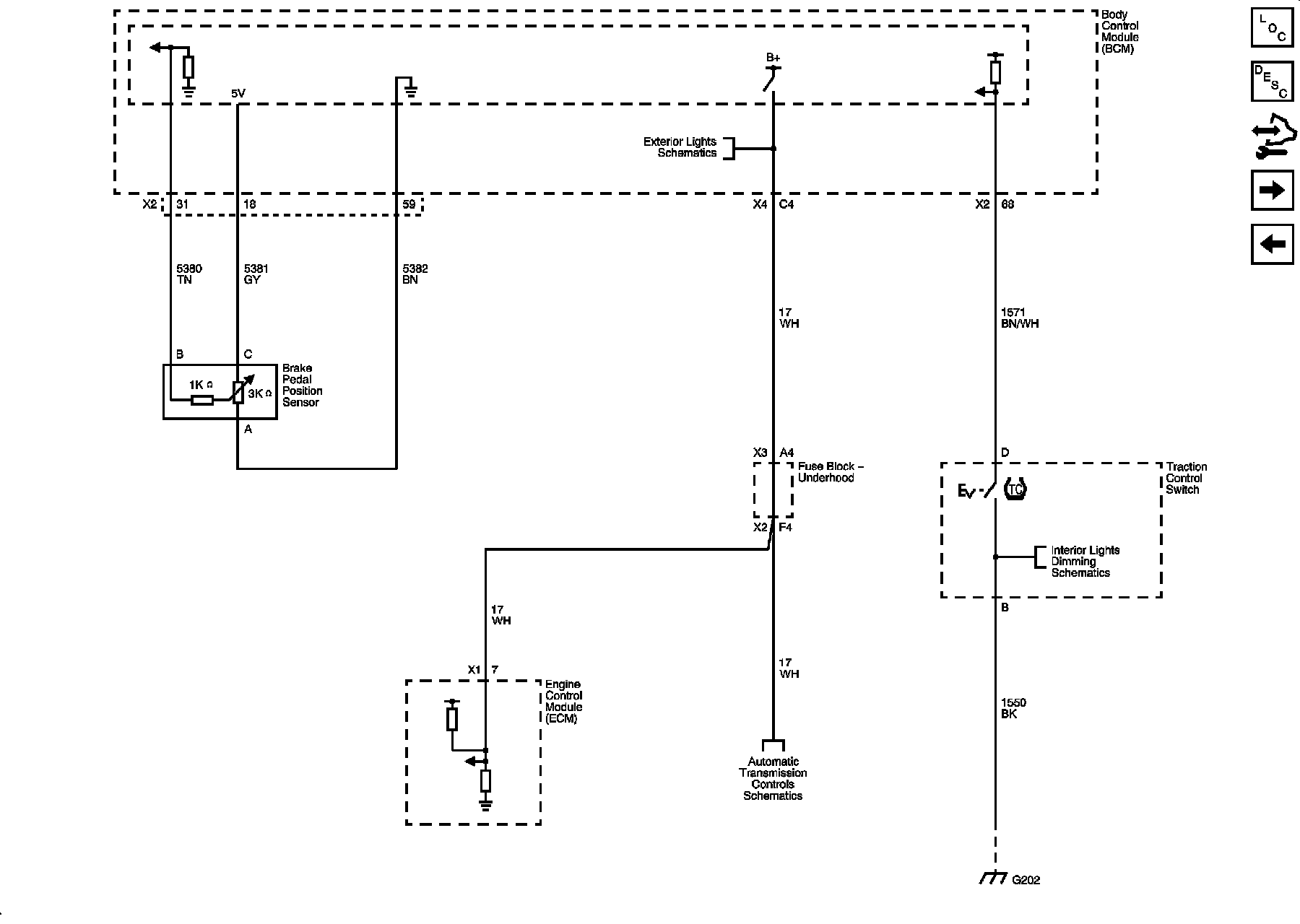

Brake Pedal Signal, and Traction Control Switch

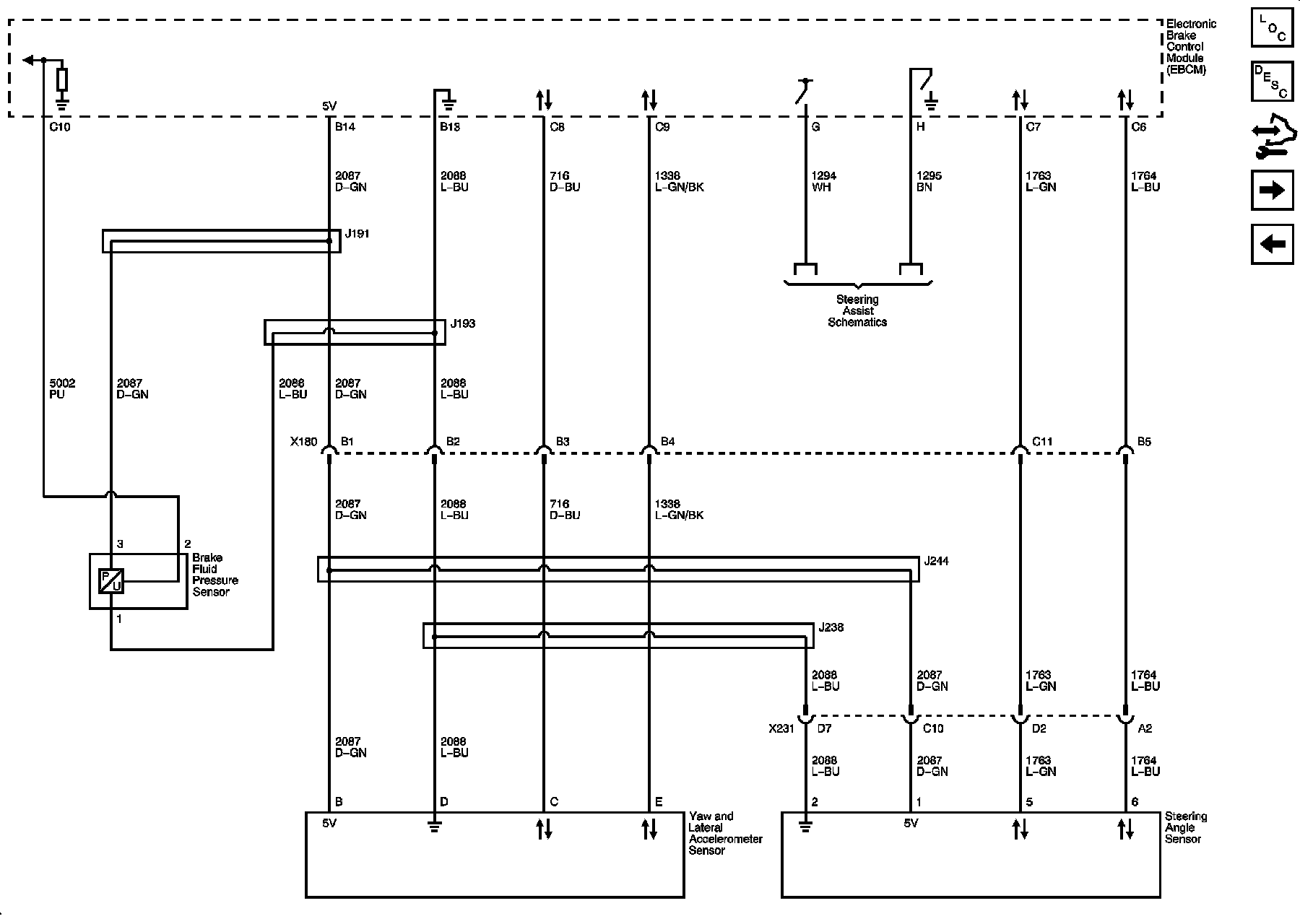

Stability Control Sensors

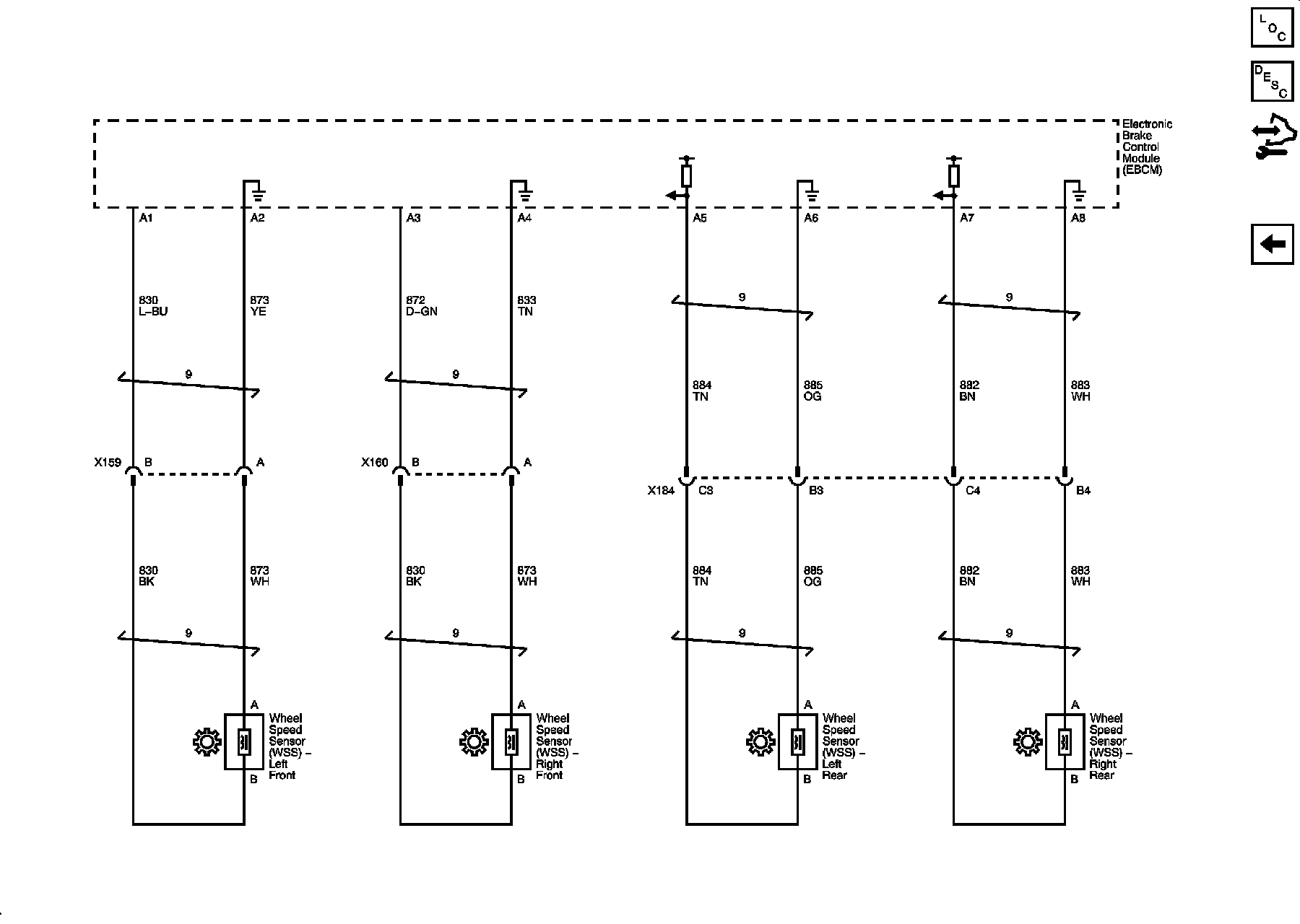

Wheel Speed Sensors
