Collision Avoidance and Parking Assist Systems



Object Detection Schematics

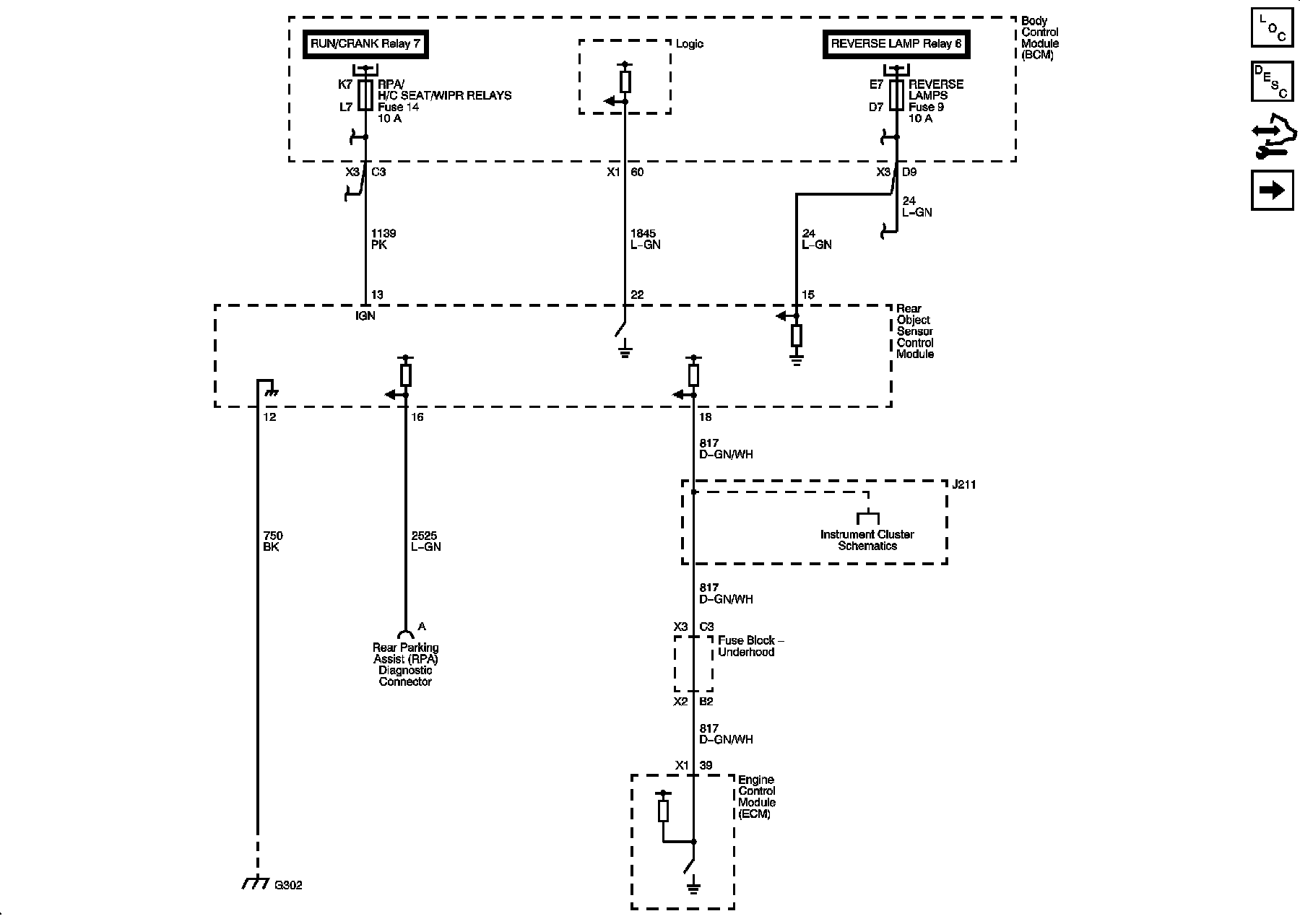

Power, Ground, DLC, and Sensor Signals

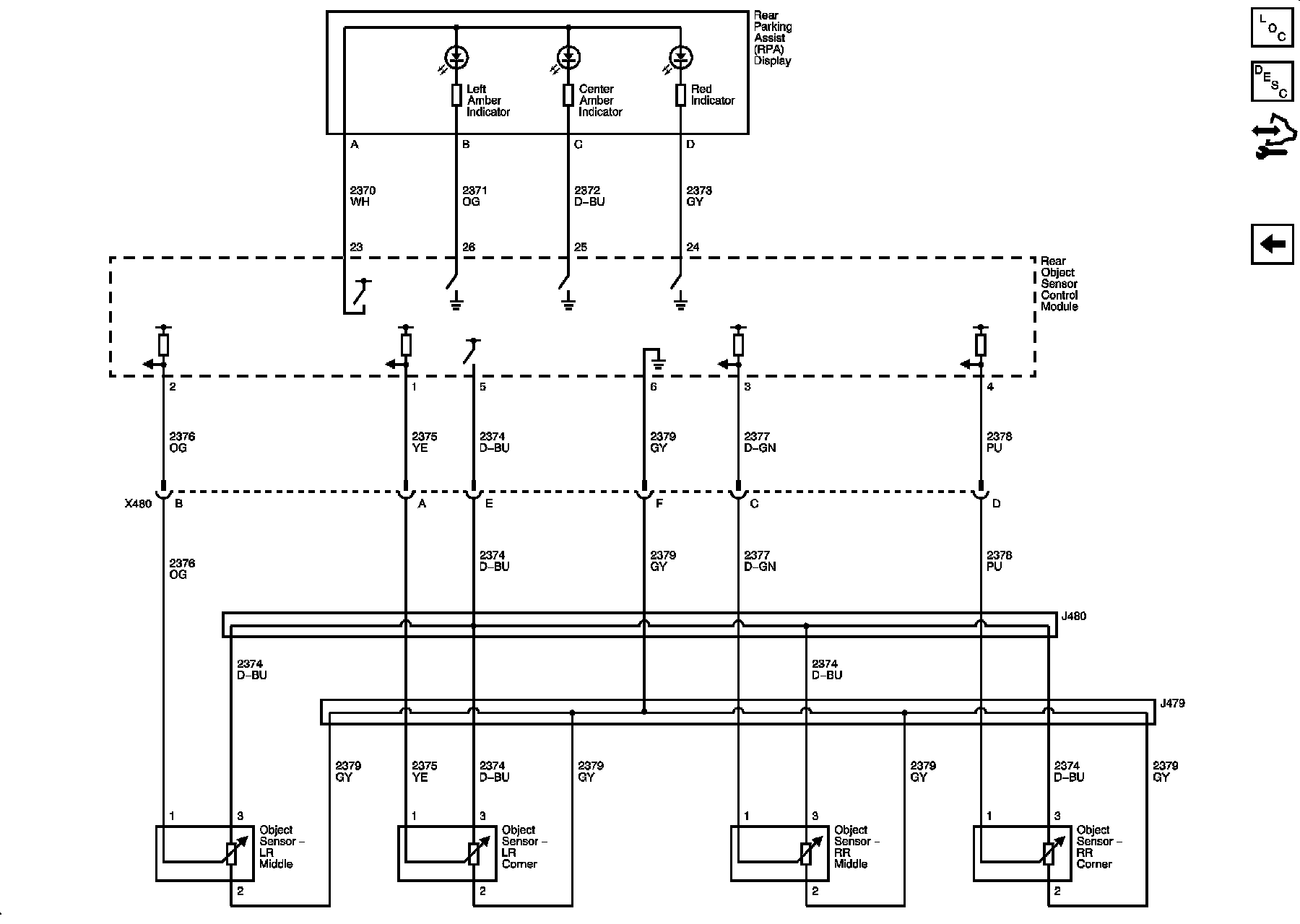

Display and Sensors
