Wiring Harness, A/T



Component Connector End Views

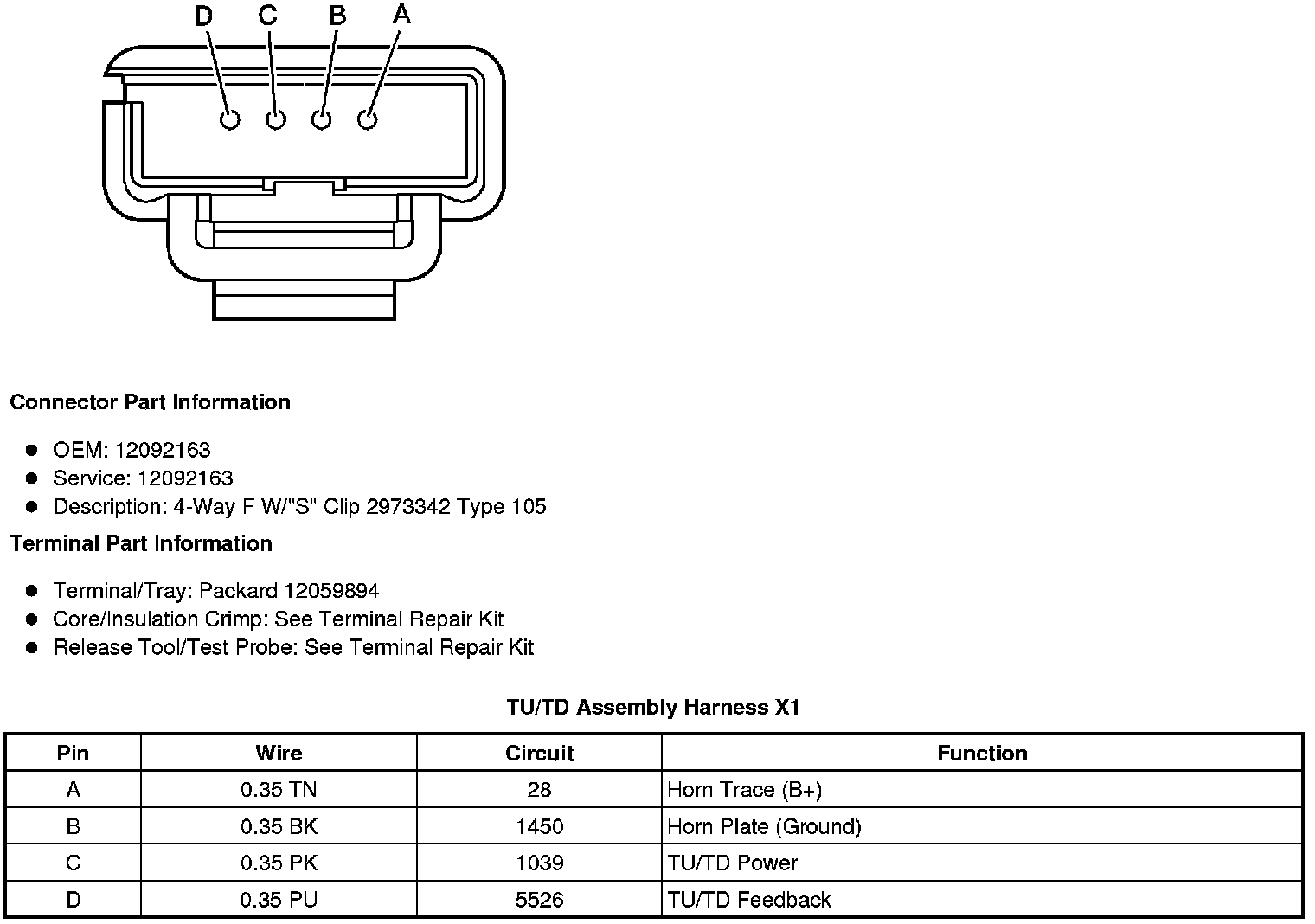

TU/TD Assembly Harness X1

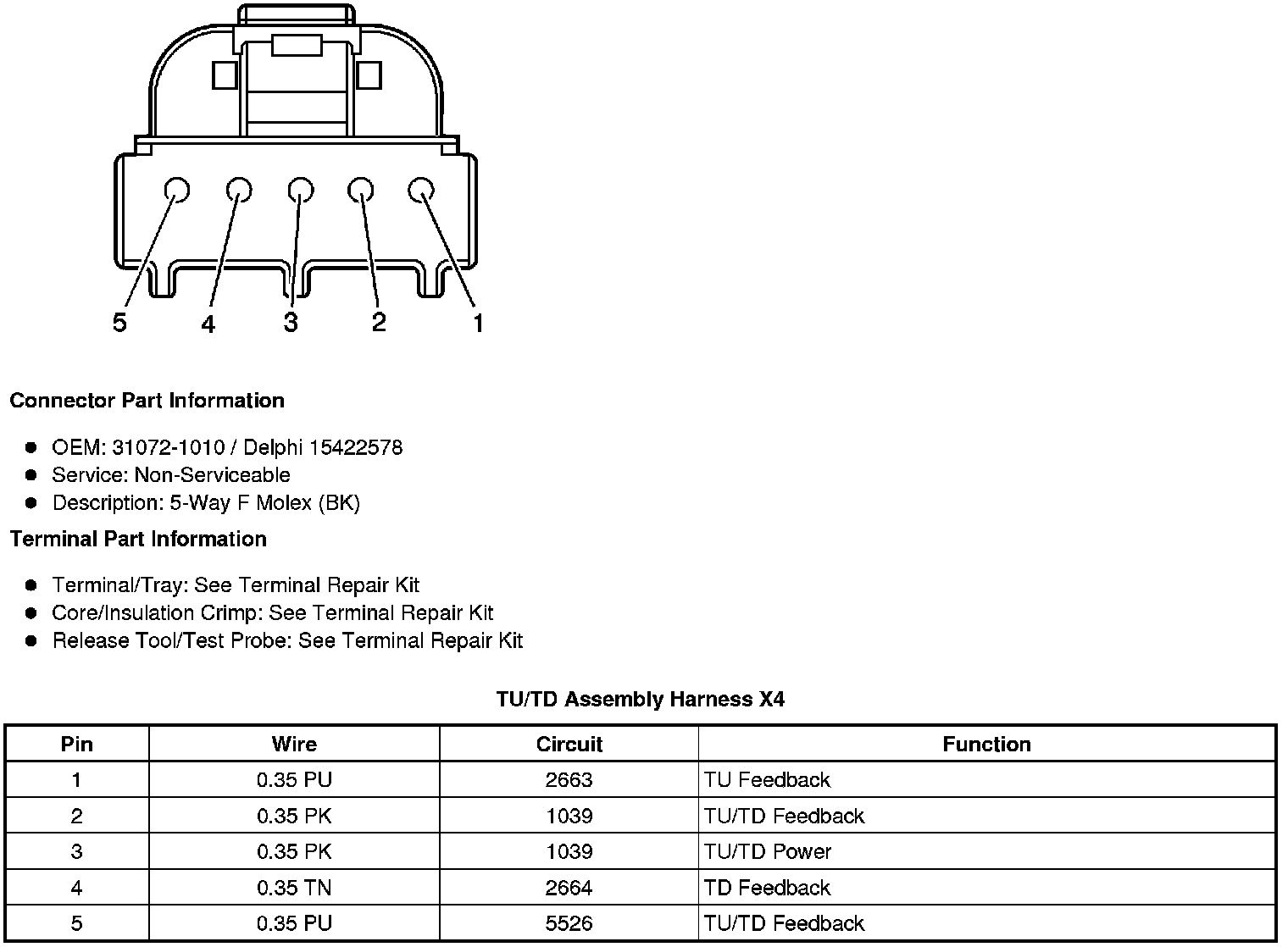

TU/TD Assembly Harness X4

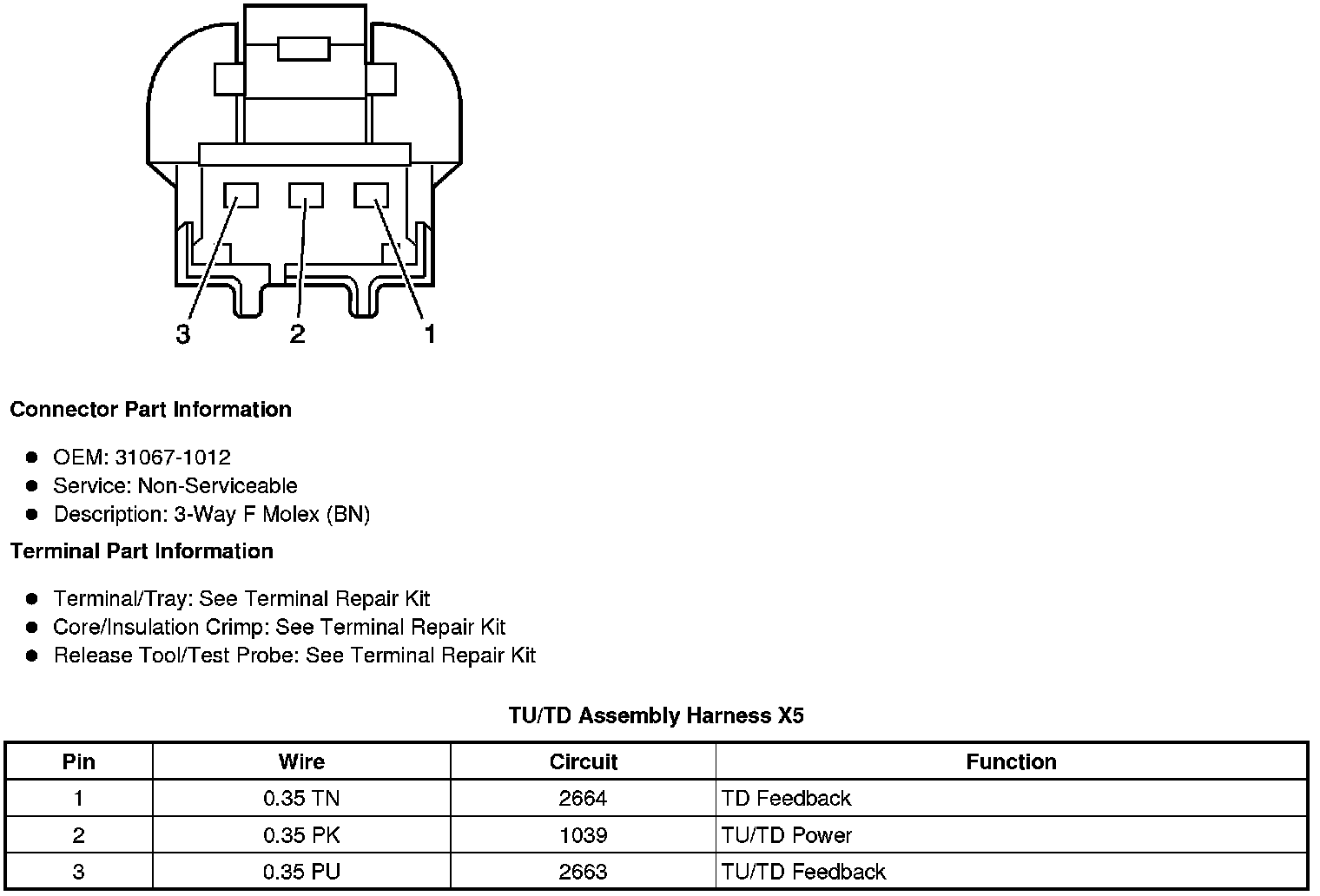

TU/TD Assembly Harness X5
